Phoenix Contact 0719045 Terminal Block - Equivalent & Substitute Parts

Part Overview

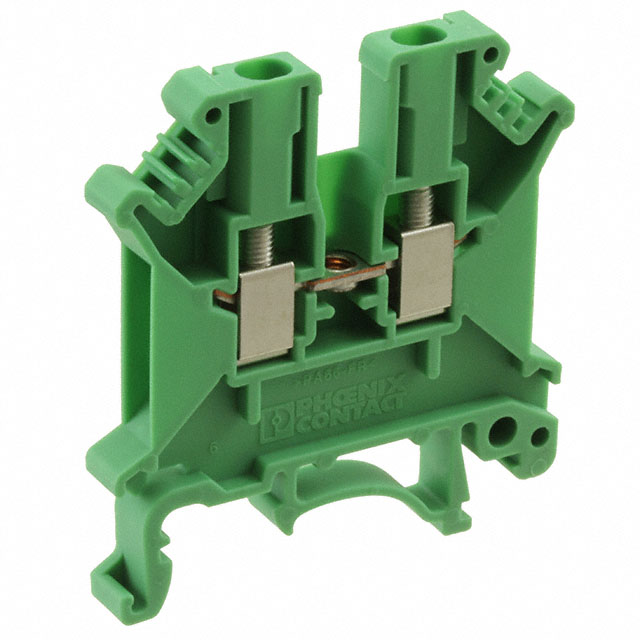

The Phoenix Contact 0719045 is a 2-position feed-through terminal block connector from the CLIPLINE UK series, designed for screw termination with a terminal width of 4.2mm and wire gauge range of 0.14-1.5mm². This component is classified as obsolete, making identification of suitable substitute parts essential for ongoing system maintenance and new design implementations.

The obsolete status of the 0719045 necessitates sourcing equivalent components that maintain functional compatibility while meeting current availability and compliance requirements. Substitute parts must preserve the core electrical and mechanical characteristics that define this terminal block category.

Substiute Parts

0719045

Phoenix ContactIn Stock: 9130719045 Datasheet

Current PartRFQ

3100305

Phoenix ContactIn Stock: 23433100305 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute identification for the Phoenix Contact 0719045 is based on the following critical parameters that define functional equivalence:

• Connector Type & Configuration: Feed-through terminal block with 2 positions and 1 level
• Termination Method: Screw termination
• Terminal Geometry: 4.2mm terminal width
• Wire Gauge Compatibility: 0.14-1.5mm² wire gauge range
• Compliance & Regulatory Status: ROHS3 compliance and REACH unaffected status

The Phoenix Contact 3100305 qualifies as a substitute part based on matching these core parameters. While the 3100305 belongs to the CLIPLINE MT series (versus the CLIPLINE UK series of the original part), it maintains identical mechanical and electrical interface specifications necessary for functional substitution in terminal block applications.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 3100305 serves as the primary substitute for the obsolete 0719045 based on the following engineering criteria:

Mechanical Compatibility: Both components share identical 2-position, 1-level feed-through configuration with 4.2mm terminal width and screw termination, ensuring direct mechanical interchangeability in existing mounting and connection schemes.

Electrical Interface: The wire gauge range of 0.14-1.5mm² is preserved across both parts, maintaining compatibility with existing wiring specifications. The 3100305 provides additional electrical ratings (17.5A IEC / 15A UL at 400V IEC / 300V UL) that were not specified for the original 0719045.

Regulatory Compliance: Both components maintain ROHS3 compliance and REACH unaffected status, satisfying current environmental and regulatory requirements for electronic component procurement.

Product Availability: The 3100305 holds active product status with 2306 units in stock, providing reliable supply continuity compared to the obsolete 0719045 (813 units remaining stock).

Frequently Asked Questions (FAQ)

Q: Can the Phoenix Contact 3100305 directly replace the 0719045 in existing applications?

A: Yes. Both components share identical mechanical configuration (2 positions, 1 level, 4.2mm terminal width), termination method (screw), and wire gauge range (0.14-1.5mm²). The 3100305 is mechanically and electrically compatible for direct substitution in terminal block applications.

Q: What is the primary difference between the 0719045 and 3100305?

A: The components belong to different Phoenix Contact series (CLIPLINE UK versus CLIPLINE MT). The 3100305 provides specified electrical ratings (17.5A IEC / 15A UL) and additional wire gauge documentation (14-30 AWG), while maintaining identical core mechanical specifications.

Q: Are there packaging differences between these parts?

A: The 0719045 packaging is not specified in available documentation. The 3100305 is supplied in bulk packaging. Packaging format should be confirmed with the supplier based on specific procurement requirements.

Q: Do both parts meet current compliance standards?

A: Yes. Both the 0719045 and 3100305 are ROHS3 compliant and REACH unaffected, meeting current environmental and regulatory requirements for electronic component use.

Q: Why is the 0719045 classified as obsolete?

A: Product obsolescence reflects Phoenix Contact's discontinuation of the CLIPLINE UK series in favor of active product lines such as CLIPLINE MT. The 3100305 represents the current-generation equivalent within Phoenix Contact's active terminal block portfolio.
