Molex 0716617060 Equivalent & Substitute Parts

Part Overview

The Molex 0716617060 is a 60-position rectangular connector plug with center strip contacts, designed for through-hole mounting applications. This connector features gold-plated contacts and is part of the EBBI 71661 series. The product is classified as obsolete, making identification of functionally equivalent alternatives necessary for ongoing system maintenance, repair, and new design implementations where legacy compatibility is required.

Substiute Parts

0716617060

MolexIn Stock: 7000716617060 Datasheet

Current PartRFQ

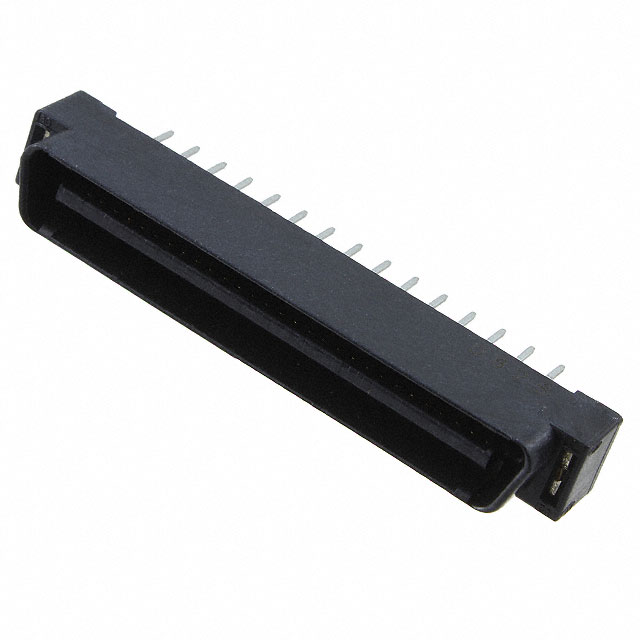

1734100-6

TE Connectivity AMP ConnectorsIn Stock: 9181734100-6 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the Molex 0716617060 is determined by the following critical parameters:

• Number of Positions: 60 positions (non-negotiable for pin count compatibility)
• Pitch: 0.050" (1.27mm) center-to-center spacing (determines mechanical fit)
• Number of Rows: 2 rows (defines physical layout and contact arrangement)
• Connector Type: Plug configuration with center strip contacts (functional role in mated pair)
• Mounting Type: Through hole (PCB assembly method compatibility)
• Contact Finish: Gold plating (electrical performance and corrosion resistance)
• RoHS Compliance: ROHS3 Compliant (regulatory requirement alignment)

The identified substitute part TE Connectivity AMP Connectors 1734100-6 satisfies all critical substitution parameters while offering active product status and improved availability.

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity AMP Connectors 1734100-6 is the qualified substitute for the obsolete Molex 0716617060 based on the following engineering criteria:

Mechanical Compatibility: Both connectors share identical pitch (0.050"), position count (60), row configuration (2), and through-hole mounting methodology, ensuring direct PCB footprint compatibility.

Electrical Equivalence: Both parts feature gold-plated contacts and identical MSL ratings, maintaining signal integrity and environmental performance characteristics.

Regulatory Alignment: Both parts meet ROHS3 compliance requirements, supporting current manufacturing and supply chain standards.

Product Lifecycle Status: The TE Connectivity part maintains active product status with confirmed inventory availability (809 units), providing supply chain continuity for the obsolete Molex component.

Series Compatibility: The TE Connectivity CHAMP .050 I series is engineered for 0.050" pitch applications and is functionally equivalent to the EBBI 71661 series in this application context.

Frequently Asked Questions (FAQ)

Q: Can the TE Connectivity 1734100-6 directly replace the Molex 0716617060 in existing designs?

A: Yes. Both connectors share identical pitch (0.050"), position count (60), row configuration (2), and through-hole mounting type. PCB footprints are mechanically compatible.

Q: What is the primary difference between these two connectors?

A: The Molex 0716617060 is obsolete with no active manufacturing, while the TE Connectivity 1734100-6 maintains active product status with current inventory availability. Both meet ROHS3 compliance and feature gold-plated contacts.

Q: Are there any electrical performance differences?

A: No. Both connectors feature gold contact finish and identical MSL ratings (1 - Unlimited), providing equivalent electrical performance and environmental reliability.

Q: Does the TE Connectivity part fit the same mating connector?

A: Yes. The identical pitch (0.050"), position count (60), and center strip contact configuration ensure compatibility with mating connectors designed for the Molex 0716617060.

Q: What is the inventory status for each part?

A: Molex 0716617060: 663 units available (obsolete stock). TE Connectivity 1734100-6: 809 units available (active product).

Q: Are both parts RoHS compliant?

A: Yes. Both the Molex 0716617060 and TE Connectivity 1734100-6 are ROHS3 compliant, meeting current regulatory requirements.
