Equivalent & Substitute Parts for Molex 0716612068

Part Overview

The Molex 0716612068 is a 68-position board-to-board plug connector featuring right-angle solder termination and center strip contacts. This connector is designed for through-hole mounting applications requiring reliable interconnection between printed circuit boards. The part is discontinued at DiGi Electronics, necessitating identification of active substitute components that maintain electrical and mechanical compatibility. Substitute parts must preserve the 68-position configuration, 2-row arrangement, right-angle mounting orientation, and solder termination method to ensure direct functional replacement.

Substiute Parts

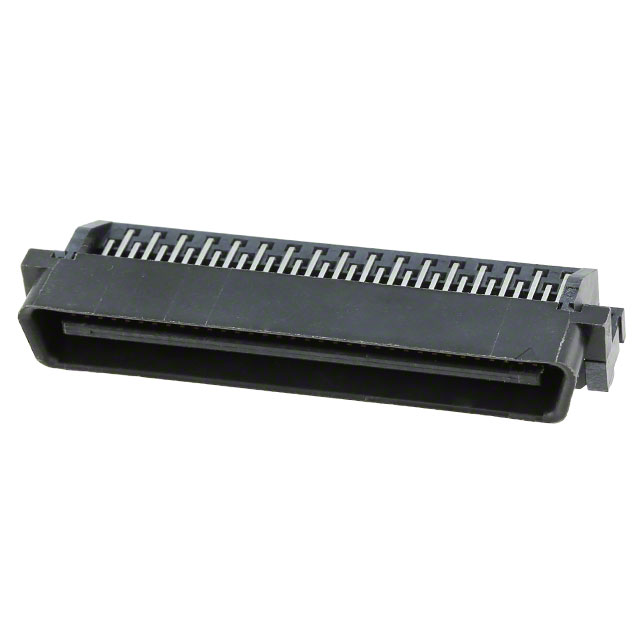

0716612068

MolexIn Stock: 7170716612068 Datasheet

Current PartRFQ

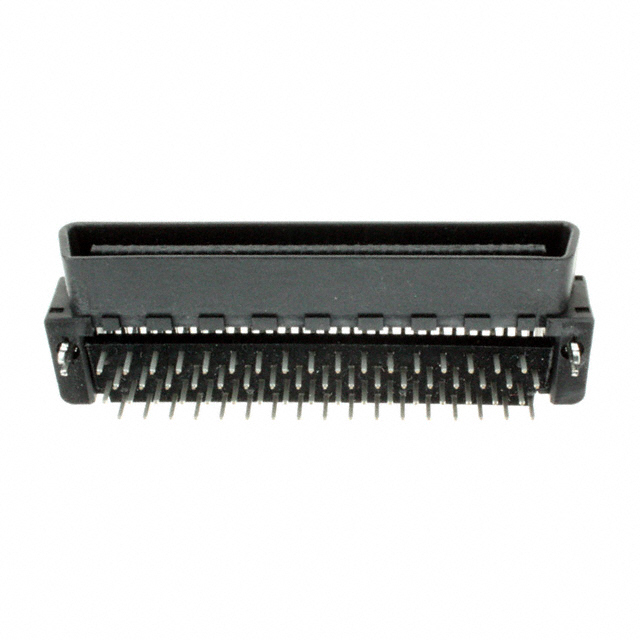

5-5175472-8

TE Connectivity AMP ConnectorsIn Stock: 9485-5175472-8 Datasheet

MFR RecommendedRFQ

5175472-8

TE Connectivity AMP ConnectorsIn Stock: 10275175472-8 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the Molex 0716612068 are qualified based on the following critical parameters that determine functional compatibility:

• Position Count: 68 positions (non-negotiable)
• Row Configuration: 2 rows (non-negotiable)
• Connector Type: Plug configuration (non-negotiable)
• Mounting Orientation: Right-angle through-hole (non-negotiable)
• Termination Method: Solder (non-negotiable)
• Contact Finish: Gold plating (non-negotiable)
• Compliance: ROHS3 compliant (required for regulatory alignment)
• Moisture Sensitivity: MSL 1 rating (non-negotiable)

The TE Connectivity AMP Connectors CHAMP .050 I series parts (5-5175472-8 and 5175472-8) meet all substitution criteria. Both variants maintain the 68-position, 2-row plug configuration with right-angle solder termination and gold-plated contacts. The primary distinction between substitute variants is packaging format (Tray versus Bulk) and contact finish thickness specification, which do not affect electrical or mechanical compatibility.

Parameter Comparison

Engineering Selection Recommendations

Both TE Connectivity AMP Connectors CHAMP .050 I series parts (5-5175472-8 and 5175472-8) are qualified substitutes for the discontinued Molex 0716612068. Selection between the two TE variants should be based on procurement requirements:

• 5-5175472-8: Supplied in Tray packaging with 30.0µin contact finish thickness specification
• 5175472-8: Supplied in Bulk packaging with 8.00µin contact finish thickness specification

Both variants maintain ROHS3 compliance and MSL 1 rating, ensuring regulatory and environmental compatibility with the original component. The active product status of both TE Connectivity parts ensures ongoing availability and supply chain continuity.

Frequently Asked Questions (FAQ)

Q: Can the TE Connectivity CHAMP .050 I series connectors directly replace the Molex 0716612068 in existing designs?

A: Yes. Both TE Connectivity parts (5-5175472-8 and 5175472-8) maintain identical electrical and mechanical specifications: 68-position, 2-row plug configuration with right-angle solder termination, center strip contacts, and gold plating. No design modifications are required.

Q: What is the difference between the two TE Connectivity substitute part numbers?

A: The primary difference is packaging format. Part 5-5175472-8 is supplied in Tray packaging with 30.0µin contact finish thickness, while 5175472-8 is supplied in Bulk packaging with 8.00µin contact finish thickness. Both are electrically and mechanically equivalent.

Q: Are the substitute parts RoHS compliant?

A: Yes. Both TE Connectivity CHAMP .050 I series parts are ROHS3 compliant, matching the compliance status of the original Molex component.

Q: What is the MSL rating for the substitute parts?

A: Both substitute parts carry an MSL 1 rating (Unlimited), identical to the original Molex 0716612068. No special moisture handling precautions are required during storage or assembly.

Q: Which substitute part should be selected for new procurement?

A: Selection depends on packaging requirements. For tray-packaged components, specify 5-5175472-8. For bulk-packaged components, specify 5175472-8. Both are active products with confirmed inventory availability.
