Phoenix Contact 0708205 Terminal Block Header - Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 0708205 is a 12-position terminal block header with male pins, designed for front panel wire connection applications. This component features a screw mount front flange configuration with wire wrap terminals on the rear panel connection. The part is classified as obsolete, making identification of active equivalent components essential for ongoing procurement and system maintenance. Substitute parts must maintain electrical performance specifications and mechanical compatibility while offering current product status and improved availability.

Substiute Parts

0708205

Phoenix ContactIn Stock: 11340708205 Datasheet

Current PartRFQ

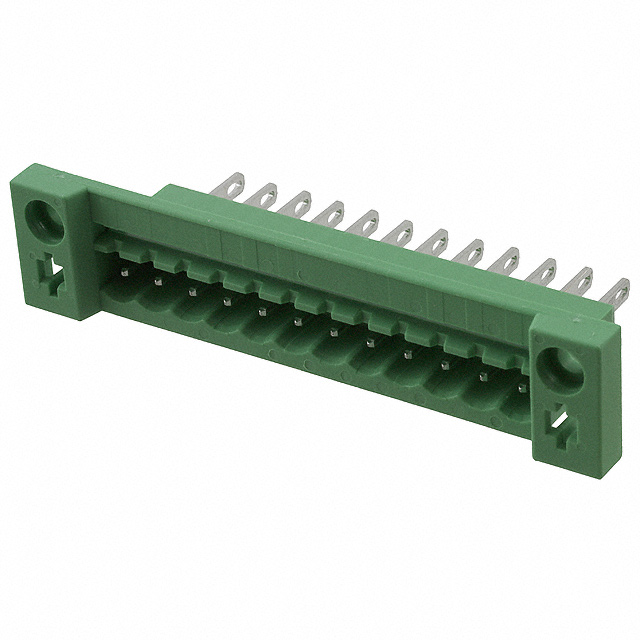

0707196

Phoenix ContactIn Stock: 10330707196 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 0708205 is determined by the following critical parameters:

• Electrical Compatibility: Voltage rating (300 V UL minimum), current rating (10 A UL minimum), and connector pitch (0.197" / 5.00mm)
• Mechanical Compatibility: 12-position configuration, screw mount front flange panel mount type, and panel thickness acceptance range (0.020 ~ 0.157")
• Functional Equivalence: Header male pin front panel connection, lock opening feature, and single-level design
• Environmental Compliance: RoHS compliance status and MSL rating

The substitute part Phoenix Contact 0707196 maintains all critical electrical and mechanical parameters while offering enhanced current rating (15 A) and active product status. The rear panel connection differs (Quick Connect - 0.110" solder eyelet versus wire wrap terminals), but this represents a functional upgrade rather than a compatibility limitation, as both configurations serve the same terminal block header application.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 0707196 is a direct functional substitute for the obsolete 0708205. Selection criteria are based on the following factors:

Product Status: The 0707196 maintains active product status, ensuring continued availability and manufacturer support. The 0708205 is obsolete and subject to supply discontinuation.

Compliance Standards: The 0707196 meets ROHS3 compliance, representing a higher environmental standard than the RoHS compliance of the 0708205. Both parts maintain MSL 1 rating and are REACH unaffected.

Electrical Performance: The 0707196 provides 15 A current rating, exceeding the 10 A requirement of the 0708205. Voltage rating remains constant at 300 V UL across both parts.

Mechanical Compatibility: All critical mechanical parameters are identical, including 12-position configuration, 5.00mm pitch, 80.00mm width, and screw mount front flange design. Panel thickness acceptance range is unchanged.

Rear Panel Connection Difference: The 0707196 uses Quick Connect - 0.110" (2.80mm) solder eyelet termination, whereas the 0708205 uses wire wrap terminals. This represents a connection method upgrade rather than a compatibility issue, as both serve the same terminal block header function.

Frequently Asked Questions (FAQ)

Q: Can the 0707196 be used as a direct replacement for the 0708205 in existing designs?

A: Yes. The 0707196 maintains identical electrical specifications (300 V, exceeds 10 A requirement at 15 A), mechanical dimensions (12 positions, 5.00mm pitch, 80.00mm width), and panel mount configuration (screw mount front flange). The rear panel connection method differs but does not prevent functional substitution.

Q: What is the significance of the current rating difference (10 A vs. 15 A)?

A: The 0707196 provides higher current capacity (15 A) compared to the 0708205 (10 A). This represents an enhancement that maintains backward compatibility with applications designed for 10 A operation.

Q: Are there packaging differences between these parts?

A: The 0708205 is listed as packaging "-" (unspecified), while the 0707196 is supplied in Bulk packaging. Both parts are available in new original condition with comparable inventory levels.

Q: Does the rear panel connection change affect mechanical fit?

A: No. Both parts maintain identical front panel dimensions, pitch, width, and screw mount configuration. The rear panel connection difference (Quick Connect solder eyelet versus wire wrap terminals) does not affect mechanical panel mounting or front-side compatibility.

Q: What compliance advantages does the 0707196 offer?

A: The 0707196 meets ROHS3 compliance and is REACH unaffected, representing current environmental standards. The 0708205 meets RoHS compliance. Both maintain MSL 1 (Unlimited) moisture sensitivity rating.

Q: Why is the 0708205 classified as obsolete?

A: Obsolete status indicates the part is no longer in active production. The 0707196 provides an active equivalent with enhanced specifications and current manufacturer support.
