Molex 0702465021 Equivalent & Substitute Parts

Part Overview

The Molex 0702465021 is a shrouded rectangular connector header with 50 positions arranged in 2 rows at 0.100" (2.54mm) pitch, designed for through-hole mounting with solder termination. This connector is classified as obsolete, which necessitates identification of active equivalent and substitute parts that maintain functional compatibility for board-to-cable/wire applications. The part features gold-plated mating contacts, tin-lead plated posts, and phosphor bronze contact material with UL94 V-0 flammability rating.

Key Parameters

Parameter	Value
Connector Type	Header
Contact Type	Male Pin
Number of Positions	50
Number of Rows	2
Pitch - Mating	0.100" (2.54mm)
Row Spacing - Mating	0.100" (2.54mm)
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Product Status	Obsolete

Substitute Part Grouping Explanation

Substitution of the Molex 0702465021 is determined by strict equivalence in the following critical parameters:

Connector type (Header), contact type (Male Pin), and number of positions (50 in 2 rows)
Mating pitch and row spacing (0.100" / 2.54mm)
Shrouding configuration (Shrouded - 4 Wall)
Mounting method (Through Hole) and termination (Solder)
Fastening type (Push-Pull)
Flammability rating (UL94 V-0)

Substitute parts are grouped into two categories based on contact material and finish specifications:

Category A: Brass Contact Material with Tin or Tin-Lead Posts

TE Connectivity 1-103308-0, 1-103309-0, 1-5103308-0, 1-5103309-0

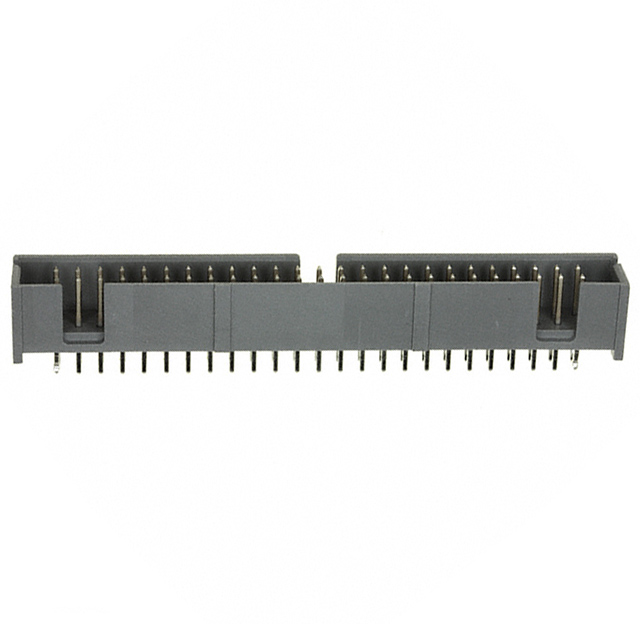

TE Connectivity 5104338-9
3M 30350-6002HB
Hirose HIF3FCA-50PA-2.54DSA(71)
3M N2550-6003-RB

Category B: Phosphor Bronze Contact Material

Amphenol ICC (FCI) 66506-031LF
Amphenol ICC (FCI) 66506-032LF

All substitute parts maintain the core mechanical and electrical interface requirements of the original Molex connector.

Parameter Comparison

Parameter	Molex 0702465021	TE 1-103308-0	TE 1-103309-0	TE 1-5103308-0	TE 1-5103309-0	TE 5104338-9	3M 30350-6002HB	Hirose HIF3FCA-50PA-2.54DSA(71)	3M N2550-6003-RB	Amphenol 66506-031LF	Amphenol 66506-032LF
Connector Type	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Number of Positions	50	50	50	50	50	50	50	50	50	50	50
Number of Rows	2	2	2	2	2	2	2	2	2	2	2
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Row Spacing - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Solder	Solder	Solder	Solder	Solder	Kinked Pin, Solder	Solder	Solder	Solder	Solder	Solder
Fastening Type	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull
Contact Material	Phosphor Bronze	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Copper Alloy	Phosphor Bronze	Phosphor Bronze
Contact Finish - Mating	Gold	Gold or Gold-Palladium	Gold or Gold-Palladium	Gold or Gold-Palladium	Gold or Gold-Palladium	Gold or Gold-Palladium	Gold	Gold	Gold	Gold or Gold, GXT™	Gold or Gold, GXT™
Contact Finish - Post	Tin-Lead	Tin-Lead	Tin-Lead	Tin	Tin	Tin	Gold	Tin	Tin	Not Specified	Not Specified
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Insulation Color	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black
Product Status	Obsolete	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active
RoHS Status	RoHS non-compliant	RoHS non-compliant	RoHS non-compliant	ROHS3 Compliant	ROHS3 Compliant	RoHS Compliant	ROHS3 Compliant	RoHS Compliant	ROHS3 Compliant	RoHS Compliant	RoHS Compliant

Engineering Selection Recommendations

All listed substitute parts maintain functional equivalence to the Molex 0702465021 through identical connector geometry, pitch, row configuration, and push-pull fastening mechanism. Selection among substitutes should be based on the following criteria:

For RoHS3 Compliance Requirements: TE Connectivity 1-5103308-0 and 1-5103309-0, 3M 30350-6002HB, and 3M N2550-6003-RB are ROHS3 compliant. These parts are suitable for applications requiring modern environmental compliance standards.

For Active Product Status with Established Supply: TE Connectivity 1-5103308-0 maintains the highest inventory availability (6300 pcs) among RoHS3-compliant options. TE Connectivity 1-103308-0 and 1-103309-0 are active parts with established supply chains, though classified as RoHS non-compliant.

For Contact Material Equivalence: Amphenol ICC (FCI) 66506-031LF and 66506-032LF maintain phosphor bronze contact material identical to the original Molex part, with RoHS compliance and active product status. These parts differ in contact post length (0.105" vs. 0.150").

For Operating Temperature Range: TE Connectivity parts specify -65°C to 105°C operating range. 3M 30350-6002HB specifies -55°C to 105°C. Hirose HIF3FCA-50PA-2.54DSA(71) specifies -55°C to 85°C, which is narrower than other options.

For Packaging Considerations: TE Connectivity parts are supplied in tubes. 3M 30350-6002HB is supplied in trays. Amphenol ICC (FCI) parts are supplied in trays. Hirose and 3M N2550-6003-RB are supplied in bulk. Packaging selection depends on assembly process requirements.

Frequently Asked Questions (FAQ)

Q: Can TE Connectivity 1-5103308-0 directly replace the Molex 0702465021?

A: Yes. Both parts share identical connector type, contact configuration, pitch, row spacing, shrouding, mounting method, and fastening mechanism. The TE part is active with RoHS3 compliance and higher inventory availability.

Q: What is the difference between TE Connectivity 1-103309-0 and 1-5103309-0?

A: Both parts are functionally equivalent with identical electrical and mechanical specifications. The primary difference is RoHS status: 1-103309-0 is RoHS non-compliant, while 1-5103309-0 is ROHS3 compliant. Contact finish thickness on the mating surface also differs (30.0µin vs. 15.0µin).

Q: Are Amphenol ICC (FCI) 66506-031LF and 66506-032LF interchangeable?

A: Both parts are mechanically and electrically equivalent with identical pitch, row configuration, and shrouding. The difference is contact post length: 66506-031LF has 0.105" posts, while 66506-032LF has 0.150" posts. Selection depends on PCB thickness and assembly requirements.

Q: Does the 3M N2550-6003-RB offer higher current capacity than the original Molex part?

A: The 3M N2550-6003-RB is rated for 1.75A per contact, while the Molex 0702465021 does not specify a current rating. The 3M part provides higher current handling capability for applications requiring increased power delivery.

Q: What packaging format is best for high-volume assembly?

A: Tube packaging (TE Connectivity parts) is standard for automated pick-and-place assembly. Tray packaging (3M 30350-6002HB, Amphenol ICC parts) is suitable for semi-automated processes. Bulk packaging (Hirose, 3M N2550-6003-RB) requires manual handling and is typically used for lower-volume applications.

Q: Is the Hirose HIF3FCA-50PA-2.54DSA(71) suitable for high-temperature applications?

A: The Hirose part specifies -55°C to 85°C operating range, which is narrower than most alternatives. For applications requiring -65°C to 105°C operation, TE Connectivity or 3M N2550-6003-RB are more appropriate selections.

Q: What is the significance of contact finish thickness differences?

A: Contact finish thickness affects durability and wear resistance. TE Connectivity 1-103309-0 specifies 30.0µin mating finish thickness, while 1-5103308-0 specifies 15.0µin. Thicker finishes provide longer service life in high-cycle mating applications.
