Molex 0702462621 Rectangular Connector Header - Equivalent & Substitute Parts

Part Overview

The Molex 0702462621 is a shrouded vertical rectangular connector header with 26 positions at 2.54mm pitch, designed for through-hole mounting with solder termination. This component is classified as obsolete, making equivalent and substitute parts necessary for ongoing production and maintenance applications. The part serves board-to-cable/wire interconnection in automotive, general purpose, lighting, medical, and telecommunications applications.

Key Parameters

Parameter	Value
Connector Type	Header
Contact Type	Male Pin
Number of Positions	26
Number of Rows	2
Pitch - Mating	0.100" (2.54mm)
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Shrouding	Shrouded - 4 Wall
Fastening Type	Push-Pull
Contact Shape	Square
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Moisture Sensitivity Level (MSL)	1 (Unlimited)

Substitute Part Grouping Explanation

Substitute parts for the Molex 0702462621 are qualified based on the following critical parameters that must match or be compatible:

Connector type: Header
Contact type: Male Pin
Number of positions: 26
Number of rows: 2
Pitch - mating: 0.100" (2.54mm)
Row spacing - mating: 0.100" (2.54mm)
Mounting type: Through Hole
Termination: Solder
Shrouding: Shrouded - 4 Wall
Fastening type: Push-Pull
Contact shape: Square
Material flammability rating: UL94 V-0
Insulation color: Black
MSL: 1 (Unlimited)

Substitutes are grouped into three categories: direct Molex equivalents, TE Connectivity AMP-Latch series alternatives, 3M 303 series alternatives, and Amphenol ICC Quickie™ series alternatives. Variations in contact finish, contact material, insulation material composition, and contact length specifications are permitted within engineering tolerance for functional compatibility.

Parameter Comparison

Parameter	0702462621 (Main)	0702462601	103308-6	103309-6	30326-6002HB	5103308-6	5103309-6	5104338-6	52601-G26-4LF	52601-S26-4LF	52601-S26-6LF
Manufacturer	Molex	Molex	TE Connectivity	TE Connectivity	3M	TE Connectivity	TE Connectivity	TE Connectivity	Amphenol ICC	Amphenol ICC	Amphenol ICC
Series	C-Grid 70246	C-Grid 70246	AMP-Latch	AMP-Latch	303	AMP-Latch	AMP-Latch	AMP-Latch	Quickie™	Quickie™	Quickie™
Product Status	Obsolete	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active
Connector Type	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Number of Positions	26	26	26	26	26	26	26	26	26	26	26
Number of Rows	2	2	2	2	2	2	2	2	2	2	2
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Row Spacing - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Kinked Pin, Solder	Solder	Solder	Solder
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall
Fastening Type	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull
Contact Shape	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square
Contact Length - Mating	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.236" (6.00mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.230" (5.84mm)	0.230" (5.84mm)	0.230" (5.84mm)
Contact Length - Post	0.135" (3.43mm)	0.135" (3.43mm)	0.120" (3.05mm)	0.120" (3.05mm)	0.110" (2.79mm)	0.120" (3.05mm)	0.120" (3.05mm)	0.120" (3.05mm)	0.120" (3.05mm)	0.120" (3.05mm)	0.150" (3.81mm)
Insulation Height	0.365" (9.27mm)	0.365" (9.27mm)	0.388" (9.86mm)	0.388" (9.86mm)	0.366" (9.30mm)	0.388" (9.86mm)	0.388" (9.86mm)	0.385" (9.78mm)	0.365" (9.27mm)	0.365" (9.27mm)	0.365" (9.27mm)
Contact Material	Phosphor Bronze	Phosphor Bronze	Brass	Brass	Brass	Brass	Brass	Brass	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze
Contact Finish - Mating	Gold	Gold	Gold or Gold-Palladium	Gold or Gold-Palladium	Gold	Gold or Gold-Palladium	Gold or Gold-Palladium	Gold or Gold-Palladium	Gold or Gold, GXT™	Gold or Gold, GXT™	Gold or Gold, GXT™
Contact Finish Thickness - Mating	15.0µin (0.38µm)	15.0µin (0.38µm)	15.0µin (0.38µm)	30.0µin (0.76µm)	Flash	15.0µin (0.38µm)	30.0µin (0.76µm)	15.0µin (0.38µm)	30.0µin (0.76µm)	15.0µin (0.38µm)	15.0µin (0.38µm)
Contact Finish - Post	Tin-Lead	Tin	Tin-Lead	Tin-Lead	Gold	Tin	Tin	Tin	Tin	Tin	Tin
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT), Glass Filled	Not specified	Not specified	Polybutylene Terephthalate (PBT), Polyester, Glass Filled	Not specified	Not specified	Polyphthalamide (PPA), Glass Filled	Thermoplastic	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Insulation Color	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black
Operating Temperature	Not specified	Not specified	-65°C ~ 105°C	-65°C ~ 105°C	-55°C ~ 105°C	-65°C ~ 105°C	-65°C ~ 105°C	-65°C ~ 105°C	Not specified	Not specified	Not specified
Current Rating (Amps)	Not specified	Not specified	1A per Contact	1A per Contact	1A	1A per Contact	1A per Contact	1A per Contact	Not specified	Not specified	Not specified
RoHS Status	RoHS non-compliant	ROHS3 Compliant	RoHS non-compliant	RoHS non-compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant
MSL	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
Packaging	Not specified	Bulk	Bulk	Bulk	Bulk	Tube	Tube	Tube	Tray	Tray	Tray

Engineering Selection Recommendations

The Molex 0702462601 is the primary direct equivalent, sharing identical mechanical and electrical specifications with the obsolete 0702462621 while offering active product status and ROHS3 compliance. This part is recommended as the first choice for direct replacement in new designs and production continuity.

For applications requiring RoHS3 compliance and extended operating temperature range, the TE Connectivity AMP-Latch series (103308-6, 103309-6, 5103308-6, 5103309-6, 5104338-6) provides functional compatibility with minor variations in contact post length and insulation height. The 5103308-6 and 5103309-6 variants offer ROHS3 compliance and are available in tube packaging.

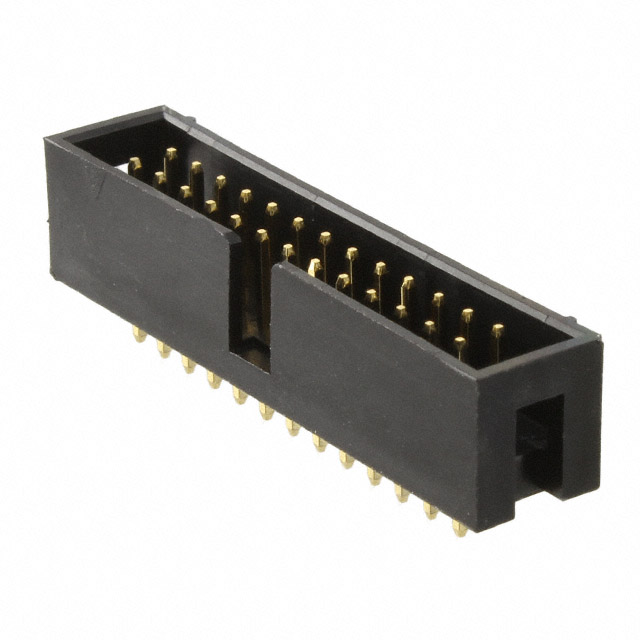

The 3M 30326-6002HB offers ROHS3 compliance and operates across -55°C to 105°C, with gold plating on both mating and post contacts. This part is suitable for applications requiring enhanced corrosion resistance.

The Amphenol ICC Quickie™ series (52601-G26-4LF, 52601-S26-4LF, 52601-S26-6LF) provides RoHS-compliant alternatives with phosphor bronze contacts matching the original material specification. The 52601-S26-6LF variant features extended contact post length (0.150") for applications requiring deeper board penetration.

Selection between these alternatives depends on specific compliance requirements, packaging preferences, and contact post length specifications for PCB board thickness accommodation.

Frequently Asked Questions (FAQ)

Q: Can the Molex 0702462601 directly replace the obsolete 0702462621?

A: Yes. The 0702462601 maintains identical pitch (2.54mm), position count (26), row configuration (2), mounting type (through hole), and shrouding specifications. The primary difference is active product status and ROHS3 compliance. Contact finish on the post differs (Tin versus Tin-Lead), which is functionally compatible for solder termination.

Q: What are the key differences between TE Connectivity and Amphenol ICC alternatives?

A: TE Connectivity AMP-Latch series uses brass contacts with operating temperature range -65°C to 105°C and specified current ratings (1A per contact). Amphenol ICC Quickie™ series uses phosphor bronze contacts matching the original material, with unspecified operating temperature and current ratings. Contact post length varies: TE Connectivity standard is 0.120" (3.05mm), while Amphenol ICC offers 0.120" or 0.150" (3.81mm) options.

Q: Are there RoHS compliance differences among substitutes?

A: Yes. The Molex 0702462621 is RoHS non-compliant. The Molex 0702462601 and 3M 30326-6002HB are ROHS3 compliant. TE Connectivity 5103308-6, 5103309-6, and 5104338-6 are ROHS3 compliant. Amphenol ICC Quickie™ series (52601-G26-4LF, 52601-S26-4LF, 52601-S26-6LF) are RoHS compliant. Selection depends on regulatory requirements for the target application.

Q: What packaging options are available?

A: Molex 0702462601 is supplied in bulk packaging. TE Connectivity AMP-Latch series offers bulk (103308-6, 103309-6) and tube (5103308-6, 5103309-6, 5104338-6) packaging. 3M 30326-6002HB is supplied in bulk. Amphenol ICC Quickie™ series is supplied in tray packaging. Packaging selection affects handling, storage, and automated assembly compatibility.

Q: Are contact post length variations significant for PCB compatibility?

A: Yes. The original 0702462621 specifies 0.135" (3.43mm) post length. Substitutes vary: Molex 0702462601 matches at 0.135", TE Connectivity standard is 0.120" (3.05mm), 3M is 0.110" (2.79mm), and Amphenol ICC offers 0.120" or 0.150" (3.81mm). Post length must accommodate PCB thickness and solder fillet requirements. Verify PCB design specifications before selection.

Q: What is the significance of contact finish differences?

A: The original part specifies gold mating contact with tin-lead post finish. Substitutes maintain gold or gold-palladium mating finish for signal integrity. Post finish varies: tin (Molex 0702462601, TE Connectivity, Amphenol ICC) or gold (3M 30326-6002HB). Tin and tin-lead finishes are functionally equivalent for solder termination. Gold post finish provides enhanced corrosion resistance in high-humidity environments.

Q: Can TE Connectivity and Amphenol ICC parts be mixed in the same assembly?

A: Mechanically, yes, as both maintain identical pitch, position count, and shrouding. However, mixing introduces variations in contact material (brass versus phosphor bronze), contact finish, and operating temperature specifications. For consistency and traceability, use a single manufacturer's part throughout an assembly.
