Molex 0701075007 Rectangular Connector Plug Housing - Equivalent & Substitute Parts

Part Overview

The Molex 0701075007 is a 7-position rectangular connector plug housing designed for 0.100" (2.54mm) pitch applications. This component serves as the housing assembly for male pin connectors in free-hanging, in-line configurations. The part is actively manufactured and maintains full compliance with RoHS3 and REACH regulations. Substitute parts are identified when inventory constraints, lead time requirements, or supply chain considerations necessitate alternative sourcing while maintaining identical electrical and mechanical specifications.

Substiute Parts

0701075007

MolexIn Stock: 10600701075007 Datasheet

Current PartRFQ

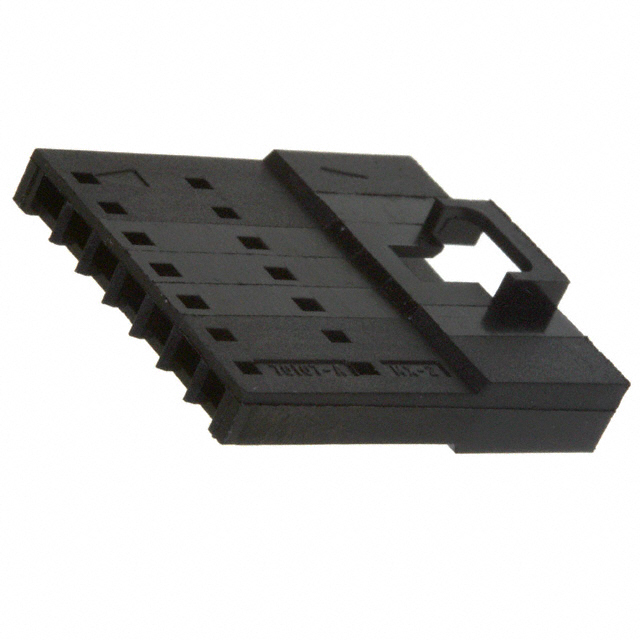

0701070006

MolexIn Stock: 648050701070006 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the Molex 0701075007 are identified based on strict equivalence across all critical electrical and mechanical parameters. The substitution criteria are:

• Connector Type: Plug housing only
• Contact Configuration: Male pin, 7-position
• Pitch Specification: 0.100" (2.54mm) center-to-center spacing
• Mounting Configuration: Free hanging, in-line orientation
• Termination Method: Crimp contact termination
• Fastening Mechanism: Latch holder design
• Material Composition: Polyester with glass reinforcement
• Environmental Rating: Operating temperature -40°C to 105°C
• Regulatory Compliance: RoHS3 and REACH compliance maintained

The identified substitute part maintains identical specifications across all parameters, ensuring direct functional and mechanical interchangeability within the SL 70107 series.

Parameter Comparison

Engineering Selection Recommendations

Both the Molex 0701075007 and 0701070006 are active production parts with full regulatory compliance. Selection between these parts should be based on:

• Inventory Availability: The 0701070006 maintains significantly higher stock levels (64,737 pcs vs. 1,020 pcs), providing improved lead time assurance for high-volume applications.
• Supply Chain Continuity: Both parts carry identical RoHS3 and REACH compliance certifications, ensuring regulatory requirements are met regardless of selection.
• Operational Equivalence: All electrical, mechanical, and environmental specifications are identical, permitting direct substitution without design modification or re-qualification.

Frequently Asked Questions (FAQ)

Q: Are these parts mechanically interchangeable? A: Yes. Both parts are identical in connector type, position count, pitch, mounting configuration, and fastening mechanism. They are direct mechanical equivalents within the SL 70107 series.

Q: Do these parts have the same environmental ratings? A: Yes. Both parts operate across the identical temperature range of -40°C to 105°C and maintain MSL 1 (Unlimited) moisture sensitivity classification.

Q: Are there any compliance differences between these parts? A: No. Both parts maintain identical RoHS3 and REACH compliance status. No additional certifications or regulatory considerations apply to either part.

Q: Can I use these parts interchangeably in existing designs? A: Yes. The parts are fully equivalent across all specified parameters. No design changes, re-layout, or re-qualification are required for substitution.

Q: What is the difference between these part numbers? A: The part numbers represent different manufacturing batches or inventory tracking codes within the same product specification. All functional and mechanical characteristics are identical.
