Phoenix Contact 0701024 Terminal Block - Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 0701024 is a 2-position feed-through terminal block connector rated for 8-20 AWG wire gauges with a maximum current capacity of 57 A at 400V (IEC). This component belongs to the CLIPLINE URK series and features screw termination with polyamide insulation rated UL94 V-0. The part is currently classified as obsolete, making identification of suitable substitute components essential for ongoing system maintenance and new design implementations.

Substiute Parts

0701024

Phoenix ContactIn Stock: 10710701024 Datasheet

Current PartRFQ

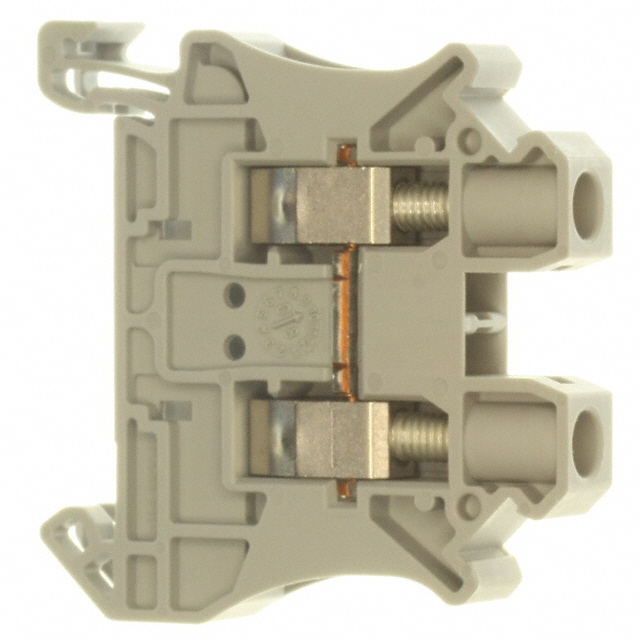

3044131

Phoenix ContactIn Stock: 16183044131 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 0701024 is determined by the following critical parameters:

Primary Compatibility Criteria:

• 2-position configuration (matching connector count)
• 1-level design (single row arrangement)
• 8.2mm terminal width (mechanical fit requirement)
• Screw termination style (installation method compatibility)
• Gray color (visual and material consistency)
• Polyamide (PA) insulation with UL94 V-0 rating (safety and thermal performance)

Electrical Compatibility Criteria:

• Wire gauge range must accommodate 8-20 AWG minimum
• Current rating must meet or exceed 57 A (IEC standard)
• Voltage rating must meet or exceed 400V (IEC standard)

The substitute part Phoenix Contact 3044131 satisfies all primary compatibility criteria and maintains electrical performance within acceptable parameters for this product category.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 3044131 is the identified substitute for the obsolete 0701024 terminal block. Selection of this substitute is supported by the following engineering factors:

Mechanical Compatibility: Both components share identical 2-position, 1-level configurations with 8.2mm terminal width and screw termination, ensuring direct mechanical interchangeability in existing installations.

Material and Safety Compliance: Both parts utilize polyamide (PA) insulation with UL94 V-0 flammability rating, maintaining equivalent thermal and fire safety performance. The 3044131 carries ROHS3 compliance, representing current regulatory alignment compared to the RoHS-compliant 0701024.

Electrical Performance: The 3044131 provides enhanced voltage rating (1000V IEC vs. 400V IEC) and expanded wire gauge compatibility (8-24 AWG vs. 8-20 AWG). The IEC current rating of 41 A is lower than the original 57 A specification; however, this component is suitable for applications where the 0701024 was operated within the 41 A threshold. UL certification data (50 A at 600V) is available for the 3044131, providing additional regulatory documentation for North American applications.

Product Status: The 3044131 maintains active production status, ensuring long-term availability and supply chain continuity.

Frequently Asked Questions (FAQ)

Q: Can the 3044131 directly replace the 0701024 in all applications?

A: Mechanical and material compatibility is confirmed. Electrical compatibility depends on application current requirements. If the original circuit operates at currents exceeding 41 A (IEC rating), the 3044131 is not suitable. Applications operating at 41 A or below are compatible.

Q: What is the significance of the expanded wire gauge range (8-24 AWG) in the 3044131?

A: The 3044131 accommodates smaller wire gauges (24 AWG) compared to the 0701024 (minimum 20 AWG). This expanded range provides greater flexibility for applications using finer conductors. The upper limit (10mm²) remains identical, maintaining compatibility with larger wire sizes.

Q: How does the stripping length difference (14mm vs. 10mm) affect installation?

A: Stripping length specifies the required conductor insulation removal for proper termination. The 3044131 requires 10mm stripping compared to 14mm for the 0701024. This difference must be observed during installation to ensure secure screw termination and prevent insulation damage or conductor exposure.

Q: Are there regulatory differences between the two parts?

A: The 0701024 carries RoHS compliance; the 3044131 carries ROHS3 compliance, representing updated regulatory requirements. Both maintain UL94 V-0 flammability certification. The 3044131 includes REACH compliance documentation, which is not specified for the 0701024.

Q: What applications are unsuitable for the 3044131 substitute?

A: Applications requiring sustained current operation above 41 A (IEC) are unsuitable. Systems designed specifically for the 57 A IEC rating of the 0701024 should not use the 3044131 as a substitute without circuit redesign or current limiting measures.
