LINE FILTER 250VAC 6A CHASSIS 06HB11

Part Overview

The 06HB11 is a single phase EMC/EMI line filter rated for 250VAC at 6A, designed for 50/60Hz operation with chassis mount configuration and wire lead termination. This component is classified as obsolete, making identification of active equivalent alternatives essential for ongoing system support and new design implementations. The part carries approvals from CSA, UR, and VDE for medical applications.

Substiute Parts

06HB11

Curtis IndustriesIn Stock: 79406HB11 Datasheet

Current PartRFQ

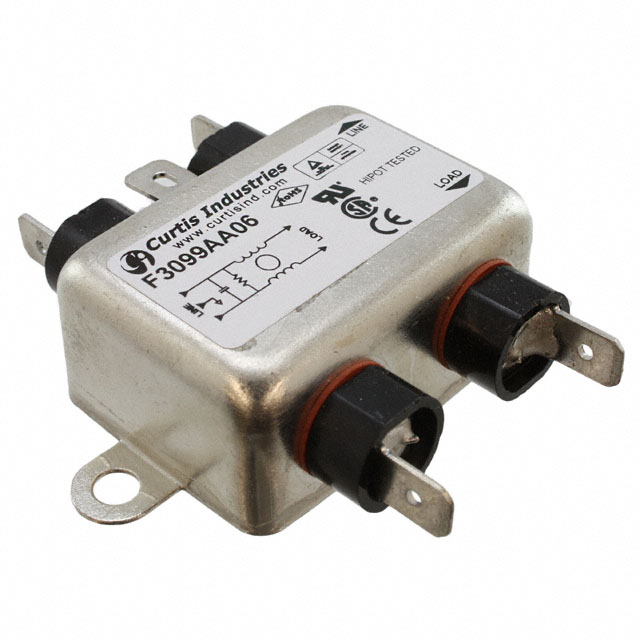

F3099AA06

Curtis IndustriesIn Stock: 1157F3099AA06 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The F3099AA06 qualifies as a direct substitute for the 06HB11 based on matching electrical and functional specifications. Both components share identical ratings across the critical parameters that determine substitutability: single phase filter type, single stage configuration, 250V AC rating, 6A current capacity, and 50/60Hz operating frequency. Both are chassis mount components approved for medical applications by CSA, UR, and VDE.

The primary difference between these parts is termination style: the 06HB11 uses wire leads while the F3099AA06 uses quick connect termination. This distinction affects only the physical connection method and does not alter the electrical performance or filtering characteristics of the component.

Parameter Comparison

Engineering Selection Recommendations

The F3099AA06 is the active equivalent for the obsolete 06HB11. Both components meet identical electrical specifications and carry the same regulatory approvals for medical applications. The F3099AA06 offers the additional advantage of ROHS3 compliance, addressing modern environmental and regulatory requirements that the 06HB11 does not satisfy.

Selection between these parts depends on termination requirements: wire lead connections are required for the 06HB11 design approach, while quick connect termination is standard for the F3099AA06. Integration of the F3099AA06 into new designs or replacement scenarios is supported by its active product status and improved compliance profile.

Frequently Asked Questions (FAQ)

Q: Can the F3099AA06 directly replace the 06HB11 in existing applications?

A: Electrical and functional compatibility is confirmed across all rated parameters. Termination style differs—wire leads versus quick connect—requiring assessment of connection methodology in the specific application.

Q: What is the significance of the product status difference?

A: The 06HB11 is obsolete and no longer manufactured. The F3099AA06 is active production, ensuring availability for current procurement and future support requirements.

Q: How does RoHS compliance affect substitution decisions?

A: The F3099AA06 meets ROHS3 compliance while the 06HB11 does not. For applications subject to RoHS regulations or environmental standards, the F3099AA06 is the required selection.

Q: Are the regulatory approvals equivalent between these parts?

A: Both components carry identical approvals from CSA, UR, and VDE for medical applications, confirming regulatory equivalence.

Q: What packaging differences exist between these parts?

A: The 06HB11 is supplied in standard packaging, while the F3099AA06 is packaged in boxes. This affects only logistics and handling, not component performance.
