LINE FILTER 06DVCG5 Equivalent & Substitute Parts

Part Overview

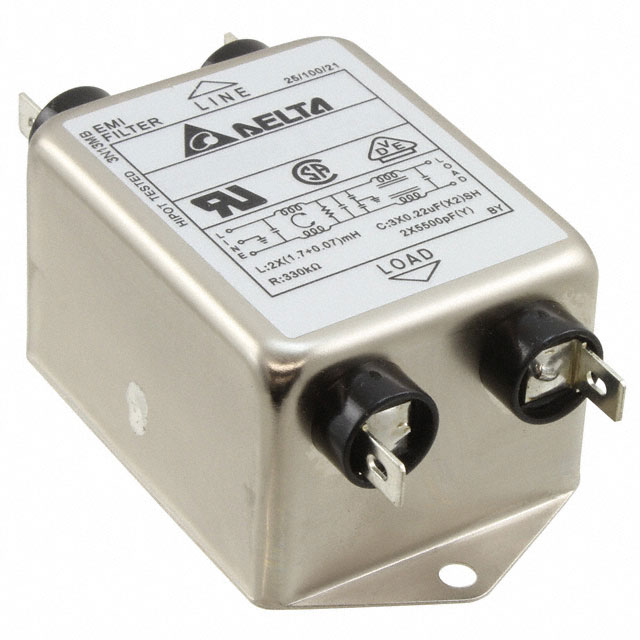

The Delta Electronics 06DVCG5 is a single-phase EMC/EMI line filter rated for 6 A at 115V and 250VAC, operating at 50/60Hz. This chassis-mounted filter features a two-stage configuration with quick-connect termination, designed for general-purpose applications requiring electromagnetic compatibility filtering. The product maintains active status with full RoHS3 compliance and REACH unaffected designation. Substitute parts are identified when equivalent electrical performance and mechanical compatibility can be maintained across the specified parameter ranges.

Substiute Parts

06DVCG5

Delta ElectronicsIn Stock: 117106DVCG5 Datasheet

Current PartRFQ

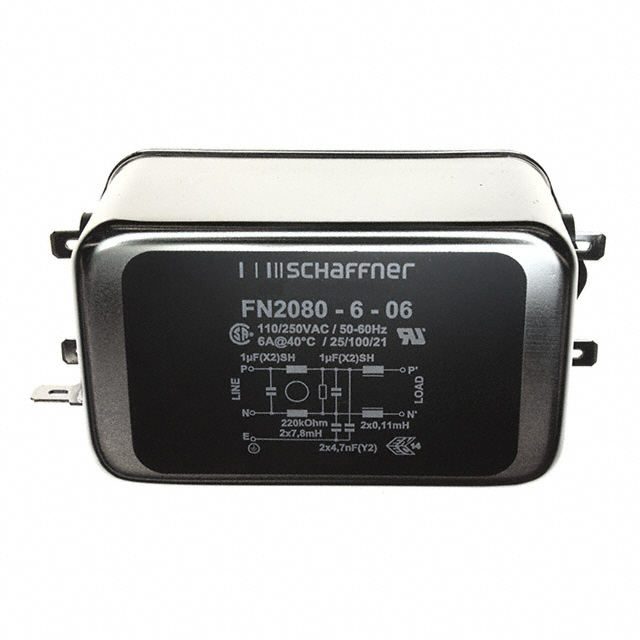

FN2080-6-06

Schaffner EMC Inc.In Stock: 5297FN2080-6-06 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The Schaffner EMC Inc. FN2080-6-06 qualifies as a substitute based on the following alignment of critical electrical and mechanical parameters:

• Filter Type & Configuration: Both are single-phase, two-stage EMC/EMI line filters
• Current Rating: Both rated at 6 A
• Voltage Compatibility: FN2080-6-06 operates at 110V/250VAC, which encompasses the 06DVCG5 operating range of 115V/250VAC
• Mounting & Termination: Both feature chassis mount with quick-connect termination
• Compliance: Both maintain ROHS3 compliance and REACH unaffected status
• Approval Agencies: Both carry CSA and UR certifications

The FN2080-6-06 operates across DC ~ 400Hz, which includes the 50/60Hz requirement of the 06DVCG5. Operating temperature range (-25°C ~ 100°C) for the substitute provides extended environmental capability.

Parameter Comparison

Engineering Selection Recommendations

Both the 06DVCG5 and FN2080-6-06 maintain active product status with equivalent electrical ratings and mechanical interfaces. Selection between these components should be based on:

• Certification Requirements: The 06DVCG5 includes VDE certification, while the FN2080-6-06 carries ENEC certification. Verify application-specific regulatory requirements.
• Operating Temperature: The FN2080-6-06 specifies operating temperature range (-25°C ~ 100°C), whereas the 06DVCG5 does not provide this specification. Applications requiring defined thermal performance should reference available datasheets.
• Frequency Range: The FN2080-6-06 supports DC ~ 400Hz operation, exceeding the 50/60Hz requirement of the 06DVCG5.
• Packaging & Availability: The 06DVCG5 is supplied in box packaging with 1071 units in stock; the FN2080-6-06 is supplied in tray packaging with 5220 units in stock.

Frequently Asked Questions (FAQ)

Q: Can the FN2080-6-06 replace the 06DVCG5 in a 115V/250VAC application?

A: Yes. The FN2080-6-06 is rated for 110V/250VAC operation, which is compatible with the 06DVCG5 115V/250VAC requirement. Both filters maintain identical 6 A current ratings and two-stage single-phase configuration.

Q: Are the quick-connect terminations mechanically compatible?

A: Both filters feature quick-connect termination style and chassis mount configuration. Physical connector compatibility should be confirmed against application-specific connector specifications.

Q: What is the difference in inductance between these filters?

A: The 06DVCG5 specifies L1 - 1.7mH and L2 - 70mH. The FN2080-6-06 specifies 7.8mH total inductance. Inductance values affect filter performance characteristics; application requirements should determine acceptability.

Q: Do both filters meet the same compliance standards?

A: Both filters are ROHS3 compliant and REACH unaffected. Certifications differ: the 06DVCG5 carries CSA, UR, and VDE approvals; the FN2080-6-06 carries CSA, ENEC, and UR approvals. Verify application-specific certification requirements.

Q: What is the frequency operating range difference?

A: The 06DVCG5 operates at 50/60Hz. The FN2080-6-06 operates across DC ~ 400Hz, providing broader frequency compatibility for applications requiring extended frequency support.
