LINE FILTER 06DSCG5 Equivalent & Substitute Parts

Part Overview

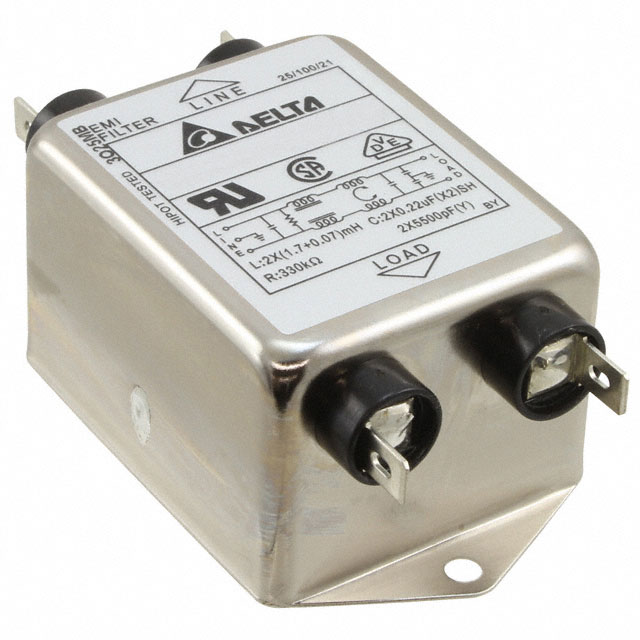

The Delta Electronics 06DSCG5 is a single-phase EMC/EMI line filter rated for 115V/250VAC at 6A with two-stage configuration and quick connect termination. This chassis-mount filter is designed for general-purpose applications requiring electromagnetic compatibility filtering in 50/60Hz power systems. The part maintains active product status with ROHS3 compliance and carries approvals from CSA, UR, and VDE. Substitute parts are identified when equivalent electrical performance and mechanical compatibility can be maintained across the specified parameter ranges.

Substiute Parts

06DSCG5

Delta ElectronicsIn Stock: 99706DSCG5 Datasheet

Current PartRFQ

FN2080-6-06

Schaffner EMC Inc.In Stock: 5297FN2080-6-06 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The Schaffner EMC Inc. FN2080-6-06 qualifies as a substitute based on the following alignment of critical parameters:

• Filter Type & Configuration: Both parts are single-phase, two-stage EMC/EMI line filters
• Current Rating: Both rated at 6A
• Voltage Compatibility: FN2080-6-06 operates at 110V/250VAC, which encompasses the 115V/250VAC range of the 06DSCG5
• Mounting & Termination: Both use chassis mount with quick connect termination
• Regulatory Compliance: Both are ROHS3 compliant and carry relevant safety approvals (CSA, UR)
• Application Class: Both designated for general-purpose applications

The FN2080-6-06 extends operating frequency range to DC~400Hz compared to the 06DSCG5's 50/60Hz specification, providing broader compatibility in variable frequency applications.

Parameter Comparison

Engineering Selection Recommendations

Both the 06DSCG5 and FN2080-6-06 maintain active product status with ROHS3 compliance. Selection between these parts is determined by application-specific requirements:

The 06DSCG5 is appropriate for standard 50/60Hz single-phase power distribution systems where the specified frequency range matches system requirements.

The FN2080-6-06 is suitable for applications requiring extended frequency operation up to 400Hz, including variable frequency drive (VFD) environments and broader industrial applications. This part carries CSA, ENEC, and UR approvals with documented operating temperature range of -25°C to 100°C.

Both parts satisfy the core electrical and mechanical compatibility criteria for 6A single-phase EMC/EMI filtering at 115V/250VAC with two-stage configuration and quick connect termination.

Frequently Asked Questions (FAQ)

Q: Can the FN2080-6-06 directly replace the 06DSCG5 in existing installations?

A: Yes, provided the application operates within the FN2080-6-06's specified parameters. The 110V rating accommodates 115V systems, and both parts share identical current rating, mounting type, and termination style. Verify that the application does not require the specific inductance values of the original part.

Q: What is the difference in frequency operating range between these parts?

A: The 06DSCG5 operates at 50/60Hz, suitable for standard AC power systems. The FN2080-6-06 operates from DC to 400Hz, enabling use in variable frequency applications and providing compatibility across a broader range of power distribution scenarios.

Q: Are there packaging considerations when substituting these parts?

A: The 06DSCG5 is supplied in box packaging while the FN2080-6-06 is supplied in tray packaging. Verify that receiving, storage, and handling procedures accommodate the different packaging format.

Q: Do both parts carry equivalent safety approvals?

A: Both parts are ROHS3 compliant. The 06DSCG5 carries CSA, UR, and VDE approvals. The FN2080-6-06 carries CSA, ENEC, and UR approvals. Verify that the specific approval agencies required by your application are present on the selected part.

Q: What inductance values should be considered when selecting a substitute?

A: The 06DSCG5 specifies L1 at 70mH and L2 at 1.7mH. The FN2080-6-06 specifies total inductance at 7.8mH. Applications with specific inductance requirements should verify compatibility with the substitute part's inductance characteristics.
