LINE FILTER 06DPCW5 Equivalent & Substitute Parts

Part Overview

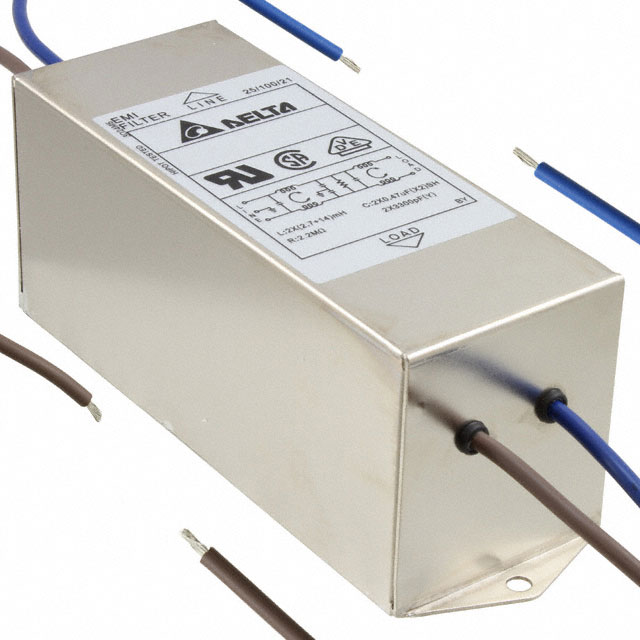

The Delta Electronics 06DPCW5 is a single-phase EMC/EMI line filter rated for 6 A at 115V and 250VAC, operating at 50/60Hz. This chassis-mount filter with wire lead termination is designed for general-purpose applications requiring electromagnetic compatibility filtering. The part maintains active product status with full inventory availability. Substitute parts are identified when equivalent electrical specifications and mechanical compatibility allow direct replacement in the same application context.

Substiute Parts

06DPCW5

Delta ElectronicsIn Stock: 103906DPCW5 Datasheet

Current PartRFQ

FN2070-6-07

Schaffner EMC Inc.In Stock: 1154FN2070-6-07 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

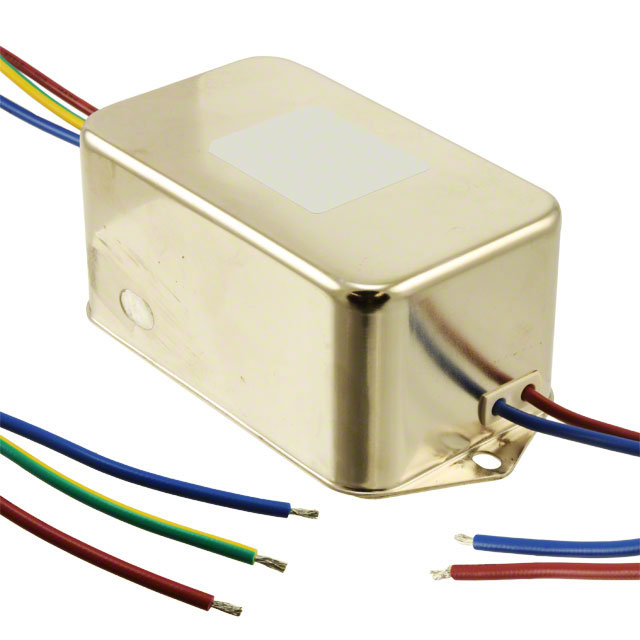

The FN2070-6-07 manufactured by Schaffner EMC Inc. qualifies as a substitute based on the following alignment of critical parameters:

• Filter Type & Configuration: Both are single-phase, two-stage EMC/EMI line filters
• Current Rating: Both rated at 6 A
• Voltage Compatibility: Both support 250VAC; the substitute supports 110V (versus 115V on the main part), which falls within acceptable tolerance for AC line voltage applications
• Mounting & Termination: Both use chassis mount with wire lead termination
• Frequency Operating Range: The substitute operates DC ~ 400Hz, which encompasses the 50/60Hz requirement
• Compliance: Both are ROHS3 compliant and REACH unaffected
• Product Status: Both maintain active status

Parameter Comparison

Engineering Selection Recommendations

Both the 06DPCW5 and FN2070-6-07 maintain active product status and meet ROHS3 compliance requirements. The primary distinction lies in approval agency certifications: the Delta part carries VDE approval while the Schaffner part carries ENEC approval. Selection between these parts should be based on specific regional regulatory requirements or existing certification documentation for the end application. The Schaffner substitute provides a broader frequency operating range (DC ~ 400Hz versus 50/60Hz), which may offer additional operational flexibility in applications with non-standard frequency requirements.

Frequently Asked Questions (FAQ)

Q: Can the FN2070-6-07 replace the 06DPCW5 in all applications?

A: Substitution is valid when the application operates within the specified parameters: 6 A current, 110V or 250VAC input, and 50/60Hz frequency. Verify that regional certification requirements (VDE, ENEC, or equivalent) align with your application's compliance documentation.

Q: What is the significance of the voltage difference (115V versus 110V)?

A: Both voltages represent standard AC line voltage specifications. 115V and 110V are within the tolerance band for single-phase AC power distribution and are functionally equivalent for filter operation.

Q: Does the wider frequency range of the FN2070-6-07 affect compatibility?

A: No. The FN2070-6-07 operates across DC ~ 400Hz, which fully encompasses the 50/60Hz requirement of the 06DPCW5. The broader range indicates the substitute can function in additional applications without performance degradation at standard frequencies.

Q: Are there packaging differences between these parts?

A: Yes. The 06DPCW5 is supplied in box packaging, while the FN2070-6-07 is supplied in tray packaging. Verify packaging requirements for your procurement and assembly processes.

Q: What role does inductance play in substitution?

A: Inductance (7.8mH for the FN2070-6-07) is a filtering characteristic. The 06DPCW5 inductance value is not specified in available documentation. Both parts function as two-stage filters; the specified inductance of the substitute confirms its filtering capability is documented and verified.
