LINE FILTER 06DPCG5 Equivalent & Substitute Parts

Part Overview

The Delta Electronics 06DPCG5 is a single-phase EMC/EMI line filter rated for 6 A at 115V and 250VAC, operating at 50/60Hz. This chassis-mounted filter features a two-stage configuration with quick-connect termination, designed for general-purpose applications requiring electromagnetic compatibility filtering. The part maintains active product status with full RoHS3 compliance and REACH unaffected designation. Substitute parts are identified when equivalent electrical specifications and mechanical compatibility allow direct replacement in the same application context.

Substiute Parts

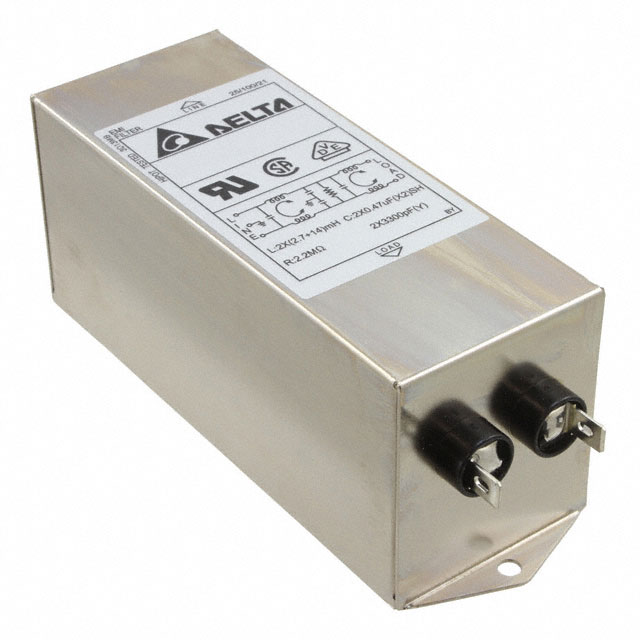

06DPCG5

Delta ElectronicsIn Stock: 98106DPCG5 Datasheet

Current PartRFQ

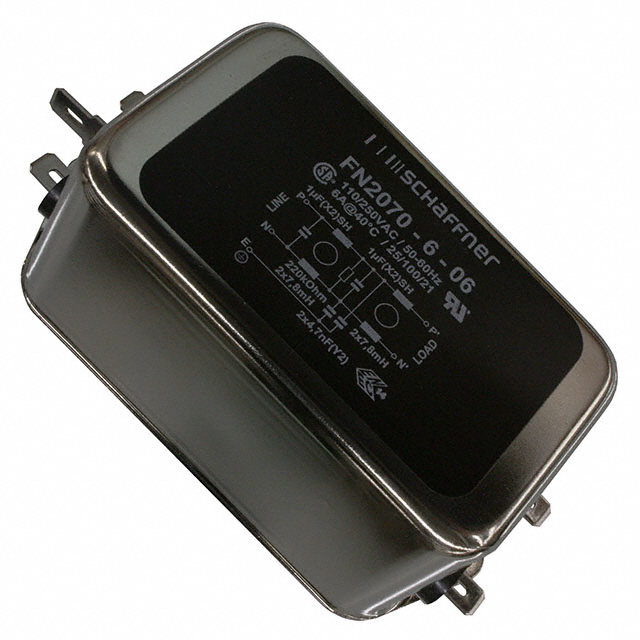

FN2070-6-06

Schaffner EMC Inc.In Stock: 1308FN2070-6-06 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 06DPCG5 is determined by the following critical parameters:

• Filter Type: Single Phase (required match)
• Configuration: Two Stage (required match)
• Current Rating: 6 A (required match)
• Voltage Range: 115V/250VAC minimum coverage (required match)
• Mounting Type: Chassis Mount (required match)
• Termination Style: Quick Connect (required match)
• Regulatory Compliance: RoHS3 Compliant, REACH Unaffected (required match)

The Schaffner EMC Inc. FN2070-6-06 meets all substitution criteria. Both parts share identical filter type, configuration, current rating, mounting method, and termination style. Voltage specifications are compatible: the 06DPCG5 operates at 115V/250VAC 50/60Hz, while the FN2070-6-06 operates at 110V/250VAC DC~400Hz, providing equivalent or broader operational coverage. Both maintain active product status and full regulatory compliance.

Parameter Comparison

Engineering Selection Recommendations

Both the 06DPCG5 and FN2070-6-06 are active products with full regulatory compliance. Selection between these parts should be based on:

Regulatory Certification Alignment: The 06DPCG5 carries VDE approval, while the FN2070-6-06 carries ENEC approval. Verify that the target application's regional requirements accept the substitute's certification body.

Frequency Operating Range: The FN2070-6-06 supports DC~400Hz operation, providing broader frequency coverage than the 06DPCG5's 50/60Hz specification. This extended range does not create incompatibility but may offer additional operational flexibility.

Voltage Compatibility: The FN2070-6-06 operates at 110V minimum versus the 06DPCG5's 115V minimum. Both support 250V maximum. Confirm that 110V operation is acceptable for the application if operating at the lower voltage boundary.

Packaging and Inventory: The 06DPCG5 is supplied in Box packaging with 875 units in stock. The FN2070-6-06 is supplied in Tray packaging with 1268 units in stock. Packaging format may affect handling and integration workflows.

Frequently Asked Questions (FAQ)

Q: Can the FN2070-6-06 directly replace the 06DPCG5 in existing designs?

A: Yes, provided that the application's regulatory certification requirements accept ENEC approval in place of VDE approval, and that 110V minimum voltage operation is compatible with the power supply specifications.

Q: What is the significance of the FN2070-6-06's DC~400Hz frequency range compared to the 06DPCG5's 50/60Hz specification?

A: The FN2070-6-06 supports a broader frequency range, including DC and frequencies up to 400Hz. The 06DPCG5 is specified for 50/60Hz operation. Both parts are compatible with standard 50/60Hz industrial applications. The FN2070-6-06's extended range does not create incompatibility but indicates capability for additional operating conditions.

Q: Are there differences in inductance specifications between these parts?

A: The 06DPCG5 does not specify inductance in the provided data. The FN2070-6-06 specifies 7.8mH inductance. Inductance values should be verified against application filtering requirements if this parameter is critical to circuit performance.

Q: How do packaging differences affect part selection?

A: The 06DPCG5 is supplied in Box packaging, while the FN2070-6-06 is supplied in Tray packaging. Tray packaging typically supports automated assembly processes, while Box packaging may be preferred for manual handling or smaller quantity orders. Select based on procurement and assembly workflow requirements.

Q: What approval agencies are relevant for my application?

A: The 06DPCG5 carries CSA, UR, and VDE approvals. The FN2070-6-06 carries CSA, ENEC, and UR approvals. Both parts share CSA and UR certifications. Verify that your application's regional requirements accept the specific approval body for the selected part.
