Delta Electronics 06AB2D AC Power Connector - Equivalent & Substitute Parts

Part Overview

The Delta Electronics 06AB2D is an IEC 320-C14 power entry module receptacle designed for panel-mount applications. This connector features male blades, integrated filtering for EMI/RFI suppression, a twin-fused fuse holder, and on-off switch functionality. The part is actively produced and maintains full compliance with RoHS3 and international safety standards. Substitute parts are identified when equivalent electrical ratings, mechanical compatibility, and functional specifications align with the original design requirements.

Substiute Parts

06AB2D

Delta ElectronicsIn Stock: 72406AB2D Datasheet

Current PartRFQ

06IB2D

Delta ElectronicsIn Stock: 117906IB2D Datasheet

DirectRFQ

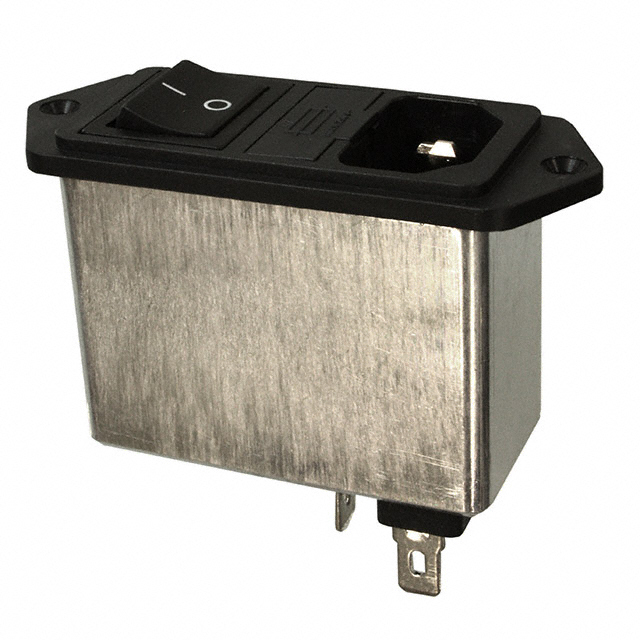

FN284-6-06

Schaffner EMC Inc.In Stock: 1351FN284-6-06 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 06AB2D is determined by strict alignment across the following critical parameters:

• Connector Style & Type: Must be IEC 320-C14 receptacle with male blades in module configuration
• Electrical Ratings: Current and voltage ratings must support 6A at 115/250VAC minimum
• Filtering & Protection: EMI/RFI filtering and twin-fused configuration required
• Mechanical Compatibility: Panel mount with flange, quick-connect termination, and compatible cutout dimensions
• Functional Features: On-off switch capability mandatory
• Compliance: RoHS3 compliance and recognized approval agencies (CSA, UL, or equivalent)

Two substitute parts meet these criteria: Delta Electronics 06IB2D (direct manufacturer equivalent) and Schaffner EMC Inc. FN284-6-06 (cross-manufacturer alternative).

Parameter Comparison

Engineering Selection Recommendations

Delta Electronics 06IB2D: This part is the direct manufacturer equivalent within the Delta product line. It maintains identical electrical specifications, filtering characteristics, and mechanical compatibility with the 06AB2D. The panel cutout dimensions differ by 0.01mm (29.00mm vs. 29.01mm), which is within standard manufacturing tolerance and does not affect interchangeability. The 06IB2D carries expanded approval certifications including VDE, providing additional compliance coverage. This substitute is recommended for applications requiring seamless drop-in replacement with enhanced regulatory documentation.

Schaffner EMC Inc. FN284-6-06: This cross-manufacturer substitute meets all critical functional and mechanical requirements. The current rating is specified at the filter stage (6A) rather than the appliance inlet stage, and voltage ratings are not explicitly provided in the specification. The FN284-6-06 offers broader approval agency coverage (CQC, ENEC in addition to CSA and UL) and includes material flammability rating (UL94 V-2) and ingress protection (IP40) specifications. Packaging differs (Tray vs. Bulk). This substitute is suitable for applications where cross-manufacturer sourcing is acceptable and additional environmental protection specifications are beneficial.

Frequently Asked Questions (FAQ)

Q: Can the 06IB2D replace the 06AB2D in existing designs? A: Yes. Both parts share identical electrical ratings (6A, 115/250VAC), connector configuration (IEC 320-C14 receptacle), filtering type (EMI/RFI commercial), switch functionality, and fuse holder design. Panel cutout dimensions are equivalent within manufacturing tolerance (0.01mm difference). No design modification is required.

Q: What are the key differences between the Delta 06IB2D and Schaffner FN284-6-06? A: Both parts meet the core substitution criteria. The 06IB2D is a direct Delta equivalent with identical electrical specifications. The FN284-6-06 is a cross-manufacturer alternative with expanded certifications (CQC, ENEC), specified material flammability (UL94 V-2), and ingress protection (IP40). The FN284-6-06 uses tray packaging instead of bulk. Voltage rating is not specified for the FN284-6-06.

Q: Are panel cutout dimensions compatible across all three parts? A: Yes. The 06AB2D specifies 29.01mm x 60.00mm, while both substitutes specify 29.00mm x 60.00mm. This 0.01mm difference is within standard manufacturing tolerance and does not affect panel mounting compatibility.

Q: What compliance certifications are common to all three parts? A: All three parts are ROHS3 compliant, CSA approved, and UL approved. The 06IB2D adds VDE certification. The FN284-6-06 adds CQC and ENEC certifications.

Q: Can the FN284-6-06 be used in applications requiring specific voltage ratings? A: The FN284-6-06 specification does not explicitly state voltage ratings. Verification against application requirements is necessary before selection.

Q: What is the difference in packaging between these parts? A: The 06AB2D and 06IB2D are supplied in Bulk packaging. The FN284-6-06 is supplied in Tray packaging. This affects handling and storage but does not impact functional compatibility.
