TE Connectivity Erni 063389 D-Sub Connector Housing Equivalent & Substitute Parts

Part Overview

The TE Connectivity Erni 063389 is a 9-position D-Sub shielded cable housing backshell connector designed for round cable applications. This component functions as a two-piece backshell assembly compatible with both 9-position and HD15-position D-Sub connectors using shell size E. The part is classified as obsolete, necessitating identification of active equivalent components to maintain system compatibility and ensure continued availability for new designs and field replacements.

Substiute Parts

063389

TE Connectivity ErniIn Stock: 1169063389 Datasheet

Current PartRFQ

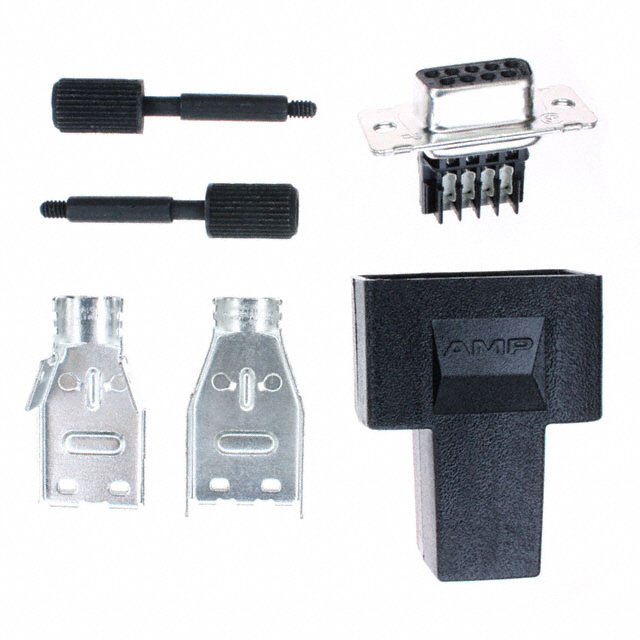

1-747943-5

TE Connectivity AMP ConnectorsIn Stock: 8881-747943-5 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

The substitute part TE Connectivity AMP Connectors 1-747943-5 is identified as a functional equivalent based on the following critical parameters:

Substitution Criteria:

• Number of Positions: Both parts specify 9 positions
• Shell Size Compatibility: Both support shell size E
• Shielding: Both incorporate shielded design
• Connector Category: Both are D-Sub, D-Shaped connectors
• Hardware Specification: Both feature 4-40 mating screws
• Compliance Status: Both are RoHS compliant and REACH compliant/unaffected
• Moisture Sensitivity: Both rated MSL 1 (Unlimited)

The substitute part 1-747943-5 transitions from an obsolete backshell housing to an active D-Sub receptacle connector with integrated backshell and mounting hardware, providing a complete connector assembly solution for 9-position D-Sub applications.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitute: TE Connectivity AMP Connectors 1-747943-5

The part 1-747943-5 is the designated substitute for the obsolete 063389. This selection is based on:

1. Product Status Alignment: The substitute is active and currently manufactured, ensuring long-term availability and supply chain continuity.

2. Compliance Certification: Both parts maintain RoHS compliance and equivalent moisture sensitivity ratings, satisfying regulatory requirements for new designs and field service applications.

3. Functional Compatibility: The 9-position configuration, shell size E compatibility, 4-40 jackscrew specification, and shielded design ensure mechanical and electrical compatibility with existing D-Sub connector systems.

4. Material and Construction: The substitute features steel construction with tin plating and integrated backshell assembly, providing equivalent environmental protection and mechanical robustness compared to the zinc die-cast original.

5. Electrical Performance: The 250V rating and -55°C to 105°C operating temperature range of the substitute accommodate standard industrial and commercial D-Sub applications.

Frequently Asked Questions (FAQ)

Q: Can the 1-747943-5 directly replace the 063389 in existing assemblies?

A: The 1-747943-5 is functionally equivalent for 9-position D-Sub applications. However, the 063389 is a backshell housing component, while the 1-747943-5 is a complete receptacle connector assembly. Integration into existing designs requires verification of mechanical mounting interfaces and connector body compatibility.

Q: What is the significance of the shell size designation?

A: Shell size E is the standard D-Sub shell size for 9-position connectors. Both the main part and substitute support this specification, ensuring compatibility with standard D-Sub connector bodies and mating plugs.

Q: Are there differences in material composition between the parts?

A: The 063389 uses zinc die-cast material, while the 1-747943-5 uses steel with tin plating. Both materials provide equivalent shielding effectiveness and environmental protection for D-Sub applications. The tin plating on the substitute provides corrosion resistance comparable to the original specification.

Q: What does the 4-40 jackscrew specification indicate?

A: The 4-40 designation refers to the mating screw size and thread pitch used to secure the connector backshell to the mating connector body. Both parts use identical 4-40 specifications, ensuring mechanical compatibility.

Q: Is the substitute suitable for high-temperature applications?

A: The 1-747943-5 operates across -55°C to 105°C, covering standard industrial temperature ranges. Applications requiring extended temperature operation beyond this range require evaluation of alternative connector solutions.

Q: What is the significance of RoHS compliance for both parts?

A: RoHS compliance indicates that both parts meet restrictions on hazardous substances, satisfying regulatory requirements for electronics manufacturing in regulated markets. The 063389 is ROHS3 compliant, while the 1-747943-5 is RoHS compliant, both meeting current environmental standards.

Q: How does the IDC termination of the substitute affect compatibility?

A: The 1-747943-5 supports IDC (Insulation Displacement Contact) and discrete wire termination. This provides flexibility for field assembly and repair applications while maintaining compatibility with standard D-Sub wiring practices.
