TE Connectivity Erni 063385 D-Sub Connector Equivalent & Substitute Parts

Part Overview

The TE Connectivity Erni 063385 is a D-Sub receptacle connector with 15 positions, designed for IDC (Insulation Displacement Contact) termination. This connector is classified as obsolete, making identification of equivalent and substitute parts essential for ongoing system maintenance, repair, and component sourcing. The obsolete status necessitates locating functionally compatible alternatives that maintain electrical and mechanical compatibility with existing installations.

Substiute Parts

063385

TE Connectivity ErniIn Stock: 697063385 Datasheet

Current PartRFQ

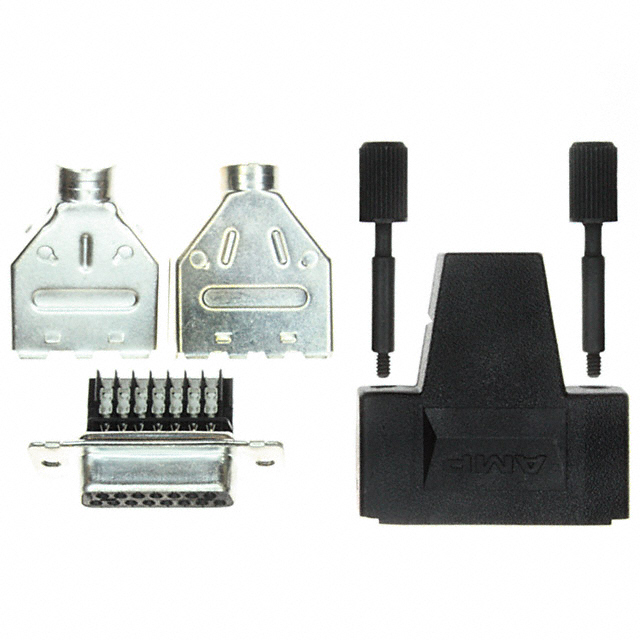

1-747945-5

TE Connectivity AMP ConnectorsIn Stock: 9491-747945-5 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the TE Connectivity Erni 063385 is based on the following critical parameters that must align between the original and substitute component:

Primary Substitution Criteria:

• Connector Category: D-Sub, D-Shaped Connectors
• Connector Type: Receptacle, Female Sockets
• Number of Positions: 15
• Termination Method: IDC, Discrete Wire
• Shell Size/Connector Layout: 2 (DA, A)

The substitute part TE Connectivity AMP Connectors 1-747945-5 satisfies all primary substitution criteria. Both connectors are 15-position D-Sub receptacles with IDC termination capability, ensuring mechanical and electrical compatibility in applications requiring this connector class.

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity AMP Connectors 1-747945-5 serves as the manufacturer-recommended substitute for the obsolete TE Connectivity Erni 063385. Selection of this substitute is based on the following engineering factors:

Functional Equivalence: Both connectors are 15-position D-Sub receptacles with IDC termination, ensuring direct functional compatibility in applications originally designed for the 063385.

Compliance Status: The substitute part 1-747945-5 carries ROHS3 compliance certification and EAR99 ECCN classification, providing defined regulatory status for procurement and deployment in regulated environments.

Product Availability: The substitute part maintains current inventory of 853 pieces, providing reliable sourcing compared to the obsolete original part with limited remaining stock of 645 pieces.

Electrical and Mechanical Specifications: The substitute provides documented electrical ratings (250V), operating temperature range (-55°C ~ 105°C), and wire gauge compatibility (26-30 AWG), enabling direct application in existing circuit designs.

Series Designation: The substitute is part of the AMPLIMITE HDE-20 series, establishing a defined product line for future reference and related component sourcing.

Frequently Asked Questions (FAQ)

Q: Can the TE Connectivity AMP 1-747945-5 directly replace the TE Connectivity Erni 063385 in existing installations?

A: Yes. Both connectors are 15-position D-Sub receptacles with IDC termination. The substitute maintains the same connector type, position count, and termination method, enabling direct mechanical and electrical compatibility.

Q: What is the significance of the shell size designation "2 (DA, A)" in the substitute part?

A: Shell size 2 (DA, A) defines the physical dimensions and pin layout of the D-Sub connector. This specification ensures the substitute connector maintains the same form factor and mating interface as the original part.

Q: Are there any wire gauge restrictions when using the substitute part?

A: The substitute part 1-747945-5 is specified for 26-30 AWG wire gauge. Applications must verify that existing wiring falls within this range to ensure proper IDC contact engagement and electrical performance.

Q: What is the operating temperature range for the substitute connector?

A: The TE Connectivity AMP 1-747945-5 operates across -55°C to 105°C. Applications must confirm that this range meets the thermal requirements of the original installation.

Q: Does the substitute part include mounting hardware and shielding?

A: Yes. The substitute part includes backshell, cover, mounting hardware, and shielding features, providing complete connector assembly functionality.

Q: What is the voltage rating of the substitute connector?

A: The substitute part is rated for 250V, establishing the maximum voltage applicable to signal transmission through the connector.

Q: Is the substitute part RoHS compliant?

A: Yes. The TE Connectivity AMP 1-747945-5 is ROHS3 compliant, meeting environmental and material restriction requirements for regulated procurement.

Q: What is the contact material composition in the substitute part?

A: The substitute uses phosphor bronze contacts with gold plating (30.0µin / 0.76µm thickness), providing corrosion resistance and reliable electrical conductivity.

Q: What is the moisture sensitivity level (MSL) of the substitute part?

A: The substitute part carries MSL 1 (Unlimited), indicating no moisture sensitivity restrictions for storage, handling, or deployment.
