Equivalent & Substitute Parts for Switchcraft 05DL5M

Part Overview

The Switchcraft 05DL5M is a 5-position circular connector plug with male pins designed for solder termination. This connector features a DIN (180 Degree) shell size, push-pull fastening, and includes backshell and strain relief. The 05DL5M is classified as obsolete, making identification of active equivalent parts essential for ongoing system support and procurement planning.

Substiute Parts

05DL5M

Switchcraft Inc.In Stock: 84005DL5M Datasheet

Current PartRFQ

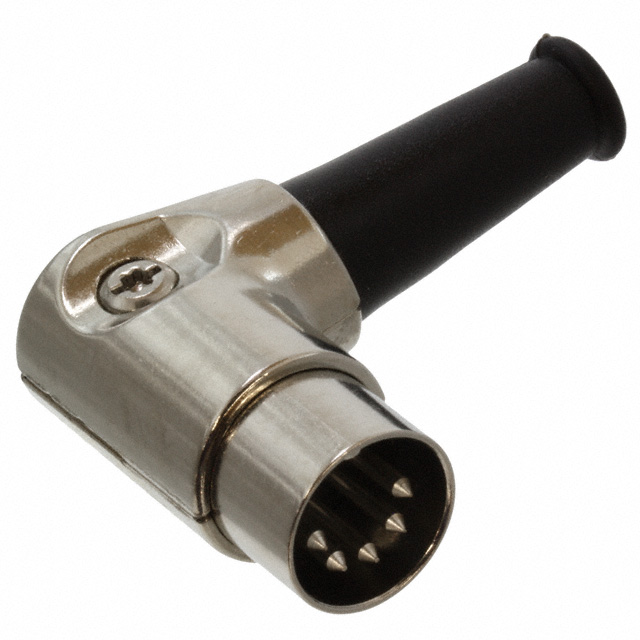

05DL5MX

Switchcraft Inc.In Stock: 99105DL5MX Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 05DL5M is determined by strict equivalence across the following critical parameters:

• Connector Type: Plug, Male Pins
• Number of Positions: 5
• Shell Size - Insert: DIN (180 Degree)
• Mounting Type: Free Hanging (In-Line), Right Angle
• Termination: Solder
• Fastening Type: Push-Pull
• Current Rating: 3A
• Voltage Rating: 34VDC
• Shell Material: Zinc Die Cast
• Shell Finish: Nickel
• Contact Finish - Mating: Tin
• Color: Silver
• Features: Backshell, Strain Relief
• Insert Material: Plastic

The 05DL5MX meets all substitution criteria as an active product variant manufactured by Switchcraft Inc. with identical electrical and mechanical specifications.

Parameter Comparison

Engineering Selection Recommendations

The 05DL5MX is the direct active equivalent for the obsolete 05DL5M. Both parts share identical electrical and mechanical specifications, ensuring functional compatibility in applications requiring 5-position DIN circular connectors with solder termination and 3A/34VDC ratings.

The 05DL5MX offers the additional advantage of ROHS3 compliance, whereas the 05DL5M is RoHS non-compliant. For new designs or systems requiring regulatory compliance with current environmental standards, the 05DL5MX is the appropriate selection. Both parts maintain REACH Unaffected status and EAR99 export classification.

Frequently Asked Questions (FAQ)

Q: Can the 05DL5MX directly replace the 05DL5M in existing applications?

A: Yes. The 05DL5MX is electrically and mechanically equivalent to the 05DL5M. Both connectors feature identical pin configurations, current and voltage ratings, shell dimensions, and termination methods. Direct substitution is supported for applications currently using the 05DL5M.

Q: What is the primary difference between these two part numbers?

A: The 05DL5M is classified as obsolete, while the 05DL5MX is an active product. Additionally, the 05DL5MX is ROHS3 compliant, whereas the 05DL5M is RoHS non-compliant. Electrical and mechanical specifications remain identical.

Q: Are there packaging differences between the 05DL5M and 05DL5MX?

A: The 05DL5MX is supplied in bulk packaging. The original packaging specification for the 05DL5M was not provided in the technical data.

Q: What certifications apply to both parts?

A: Both the 05DL5M and 05DL5MX are classified as REACH Unaffected and carry EAR99 export classification. The 05DL5MX additionally meets ROHS3 compliance requirements.

Q: Are there any applications where the 05DL5M should be preferred over the 05DL5MX?

A: No. The 05DL5MX is the recommended selection for all new applications and ongoing procurement. The 05DL5M is obsolete and should be replaced with the 05DL5MX where possible.
