Equivalent & Substitute Parts for Switchcraft 05CL5M

Part Overview

The Switchcraft 05CL5M is a 5-position circular connector plug with male pins designed for solder termination. This connector features a DIN (180 Degree) shell size with push-twist fastening, zinc die-cast construction, and nickel plating. The part is classified as obsolete, making substitute components necessary for ongoing procurement and system maintenance. The 05CL5MX serves as the direct equivalent, offering identical electrical and mechanical specifications with active product status and improved compliance.

Substiute Parts

05CL5M

Switchcraft Inc.In Stock: 108505CL5M Datasheet

Current PartRFQ

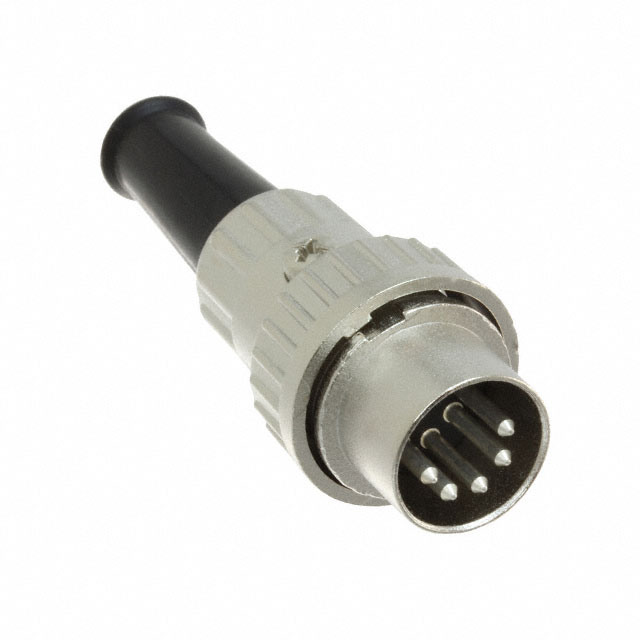

05CL5MX

Switchcraft Inc.In Stock: 119005CL5MX Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The 05CL5MX qualifies as a direct substitute for the 05CL5M based on identical electrical and mechanical parameters. Substitution is valid when the following criteria are met:

• Connector type and pin configuration: Plug, Male Pins, 5-position
• Shell size and insert specification: DIN (180 Degree)
• Termination method: Solder
• Fastening mechanism: Push-Twist
• Current and voltage ratings: 3A at 34VDC
• Physical construction: Zinc die-cast shell with nickel finish and tin contact plating
• Integrated features: Backshell, cable clamp, and strain relief

The 05CL5MX maintains full compatibility with applications designed for the 05CL5M while offering improved product status and regulatory compliance.

Parameter Comparison

Engineering Selection Recommendations

The 05CL5MX is the appropriate selection for new designs and ongoing procurement. The main part (05CL5M) is obsolete, creating supply chain risk for future applications. The substitute part maintains identical electrical performance and mechanical compatibility while offering active product status and ROHS3 compliance, providing regulatory alignment for modern manufacturing standards. Both parts share identical REACH and ECCN classifications, ensuring no change in export or environmental documentation requirements.

Frequently Asked Questions (FAQ)

Q: Can the 05CL5MX be used as a direct replacement for the 05CL5M in existing assemblies?

A: Yes. The 05CL5MX is electrically and mechanically identical to the 05CL5M. Both connectors feature 5-position DIN (180 Degree) configuration, 3A current rating, 34VDC voltage rating, solder termination, and push-twist fastening. Physical dimensions, shell construction, and integrated features are equivalent.

Q: What is the primary difference between these two parts?

A: The 05CL5M is obsolete with RoHS non-compliant status, while the 05CL5MX is active with ROHS3 compliance. All electrical and mechanical parameters are identical.

Q: Are there packaging differences between the 05CL5M and 05CL5MX?

A: The 05CL5M is supplied with unspecified packaging, while the 05CL5MX is supplied in bulk packaging. This does not affect connector performance or compatibility.

Q: Do these connectors require any special handling or installation procedures?

A: Both connectors use solder termination and push-twist fastening. Installation procedures are identical. Refer to Switchcraft technical documentation for specific solder joint requirements and fastening torque specifications.

Q: Are there any compliance or certification changes when switching from 05CL5M to 05CL5MX?

A: The 05CL5MX provides ROHS3 compliance, improving regulatory alignment. Both parts maintain identical REACH Unaffected and EAR99 ECCN classifications, requiring no changes to export documentation or environmental compliance procedures.
