Equivalent & Substitute Parts for Switchcraft 05CL3M

Part Overview

The Switchcraft 05CL3M is a 3-position circular connector plug with male pins, designed for solder termination. This DIN (180 Degree) connector features a push-twist fastening mechanism and includes backshell, cable clamp, and strain relief. The 05CL3M is classified as obsolete, making equivalent and substitute parts necessary for ongoing system maintenance and new design implementations where this connector type is required.

Substiute Parts

05CL3M

Switchcraft Inc.In Stock: 78305CL3M Datasheet

Current PartRFQ

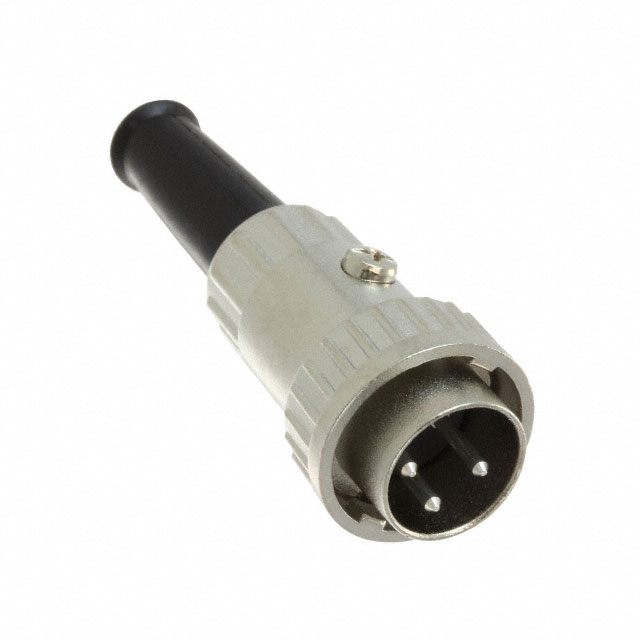

05CL3MX

Switchcraft Inc.In Stock: 189505CL3MX Datasheet

DirectRFQ

21031111305

HARTINGIn Stock: 97021031111305 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution for the 05CL3M is determined by the following critical parameters:

• Connector Type & Gender: Plug with male pins (required for mating with female receptacles)
• Position Count: 3-position configuration (electrical and mechanical compatibility)
• Shell Size & Insert Standard: DIN (180 Degree) or equivalent mechanical interface
• Mounting Configuration: Free hanging, in-line orientation
• Termination Method: Solder connection capability
• Fastening Mechanism: Push-twist or compatible locking method
• Physical Material & Finish: Zinc die cast shell with nickel finish and tin-plated contacts

Two substitute parts are identified:

1. 05CL3MX (Switchcraft Inc.) — Direct equivalent with identical electrical and mechanical specifications, differing only in product status (active vs. obsolete) and RoHS compliance.

2. 21031111305 (HARTING Harax® M12-S) — Similar 3-position male plug connector with comparable mounting and mechanical features, but with different shell size standard (M12-3), termination method (IDC vs. solder), and enhanced environmental ratings.

Parameter Comparison

Engineering Selection Recommendations

For Direct Replacement (Identical Specifications):

The 05CL3MX is the primary substitute for the obsolete 05CL3M. Both connectors share identical electrical and mechanical specifications, including DIN shell size, 3-position configuration, solder termination, and push-twist fastening. The 05CL3MX is currently in active production status with ROHS3 compliance, making it suitable for new designs and legacy system maintenance where the original DIN connector interface is required.

For Alternative Interface Applications:

The HARTING 21031111305 (Harax® M12-S series) provides a functionally similar 3-position male plug connector with enhanced environmental specifications (IP65/IP67 ingress protection, -40°C to 85°C operating range, 4A current rating, 32V voltage rating). This substitute is applicable only when the system design can accommodate the following differences:

• M12-3 shell size standard instead of DIN (180 Degree)
• IDC termination instead of solder
• Threaded fastening instead of push-twist
• Gold-plated contacts instead of tin-plated

The 21031111305 is suitable for applications requiring enhanced environmental sealing and higher electrical specifications than the original 05CL3M.

Frequently Asked Questions (FAQ)

Q: Can the 05CL3MX be used as a direct drop-in replacement for the 05CL3M?

A: Yes. The 05CL3MX maintains identical connector type, position count, shell size (DIN 180 Degree), mounting configuration, termination method (solder), and fastening mechanism (push-twist). Both connectors are mechanically and electrically compatible with the same mating receptacles.

Q: What is the primary difference between the 05CL3M and 05CL3MX?

A: The 05CL3MX is the active production equivalent of the obsolete 05CL3M. The 05CL3MX includes ROHS3 compliance, whereas the 05CL3M is RoHS non-compliant. All functional specifications remain identical.

Q: When should the HARTING 21031111305 be considered instead of the 05CL3MX?

A: The 21031111305 should be selected only when the application requires M12-3 connector interface, IDC termination capability, threaded fastening, or enhanced environmental protection (IP65/IP67). This connector is not a direct mechanical replacement due to different shell size and fastening standards.

Q: Are there packaging differences between the 05CL3M and 05CL3MX?

A: The 05CL3M is supplied in standard packaging, while the 05CL3MX is supplied in bulk packaging. Both connectors are functionally identical.

Q: What certifications apply to each substitute part?

A: The 05CL3MX and 21031111305 are both ROHS3 compliant and REACH unaffected. The 05CL3M is RoHS non-compliant. All three connectors carry EAR99 ECCN classification and 8536.69.4020 HTSUS code.

Q: Does the 05CL3MX support the same current and voltage ratings as the 05CL3M?

A: Current and voltage ratings are not specified for either the 05CL3M or 05CL3MX. The 21031111305 specifies 4A current rating and 32V voltage rating. Consult detailed datasheets for complete electrical specifications.
