Molex 0561348100 Socket Contact Equivalent & Substitute Parts

Part Overview

The Molex 0561348100 is a socket contact for rectangular connectors in the MicroClasp 56134 series, designed for 22-26 AWG wire gauges with crimp termination and tin contact finish. This component is classified as obsolete, necessitating identification of active equivalent parts to maintain supply chain continuity and ensure design compatibility in applications requiring this connector type.

Substiute Parts

0561348100

MolexIn Stock: 2004400561348100 Datasheet

Current PartRFQ

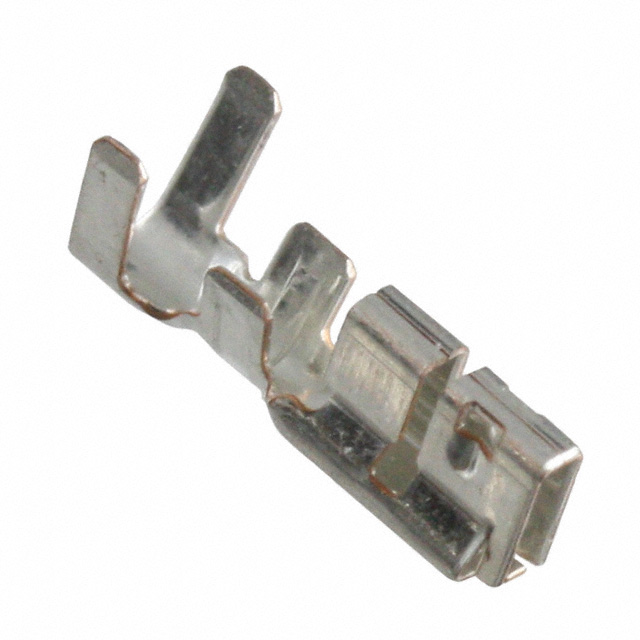

0561349100

MolexIn Stock: 1098970561349100 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

The Molex 0561349100 qualifies as a direct substitute for the 0561348100 based on the following alignment of critical parameters:

• Series Compatibility: Both parts belong to the MicroClasp 56134 series, ensuring mechanical and electrical compatibility within connector assemblies
• Socket Type: Both are socket contacts with crimp termination, maintaining functional equivalence
• Contact Finish: Identical tin finish specification ensures consistent electrical performance and corrosion resistance
• Wire Gauge Range: The substitute supports 22-28 AWG, which encompasses the original 22-26 AWG specification, providing expanded compatibility
• Regulatory Compliance: Both parts maintain ROHS3 compliance and REACH unaffected status, satisfying environmental and regulatory requirements
• Moisture Sensitivity: Identical MSL rating of 1 (Unlimited) ensures equivalent handling and storage requirements

Parameter Comparison

Engineering Selection Recommendations

The Molex 0561349100 is the designated substitute for the obsolete 0561348100. Selection of the active part is based on:

• Product Status: The 0561349100 maintains active production status, ensuring ongoing availability and supply chain reliability
• Regulatory Compliance: Both parts satisfy ROHS3 and REACH requirements, maintaining compliance with current environmental standards
• Series Continuity: Membership in the identical MicroClasp 56134 series guarantees mechanical and electrical interchangeability
• Wire Gauge Expansion: The extended 22-28 AWG range of the substitute accommodates the original 22-26 AWG specification while providing additional flexibility for related applications

Frequently Asked Questions (FAQ)

Q: Can the 0561349100 be used as a direct replacement for the 0561348100?

A: Yes. Both parts are socket contacts in the MicroClasp 56134 series with identical crimp termination, tin finish, and regulatory compliance. The substitute's expanded wire gauge range (22-28 AWG) encompasses the original specification (22-26 AWG).

Q: What is the significance of the wire gauge difference between the two parts?

A: The 0561348100 accommodates 22-26 AWG wire, while the 0561349100 supports 22-28 AWG. The substitute's broader range includes the original specification, ensuring compatibility with existing designs while permitting use with slightly larger wire gauges if required.

Q: Are there any differences in contact finish specifications?

A: Both parts feature tin contact finish. The 0561349100 specifies a contact finish thickness of 35.4µin (0.90µm), while the 0561348100 does not provide this specification. This additional data does not affect substitution compatibility.

Q: Do both parts have the same moisture sensitivity requirements?

A: Yes. Both parts carry an MSL rating of 1 (Unlimited), indicating identical handling, storage, and environmental requirements.

Q: What is the inventory status of the substitute part?

A: The 0561349100 is actively produced with 109,880 pieces in stock, ensuring reliable availability for procurement and production planning.
