Equivalent & Substitute Parts for Molex 0554601072
Part Overview

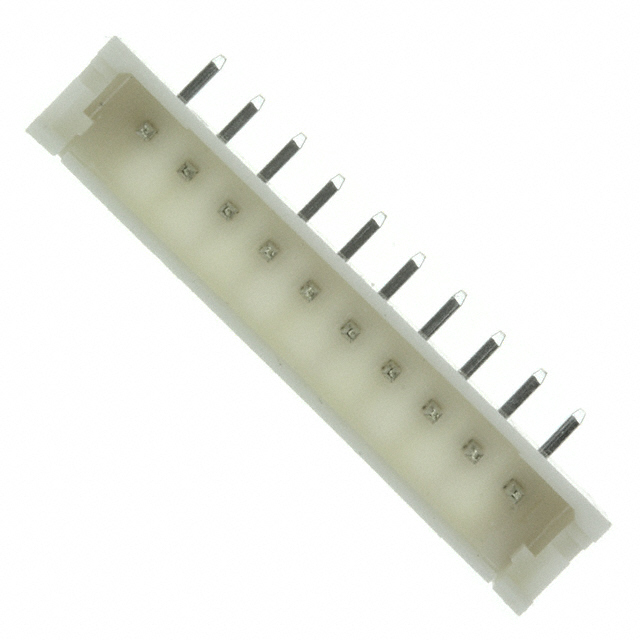

The Molex 0554601072 is a surface mount rectangular connector header with 10 positions at 2.00mm pitch, designed for board-to-board or cable interconnection applications. This component features shrouded 4-wall construction with solder termination and detent lock fastening. The product is classified as obsolete, making identification of functionally equivalent alternatives essential for ongoing design support and procurement planning.
Substiute Parts
Key Parameters
| Parameter | Value |
|---|---|
| Connector Type | Header |
| Contact Type | Male Pin |
| Number of Positions | 10 |
| Pitch - Mating | 0.079" (2.00mm) |
| Mounting Type | Surface Mount |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact Material | Brass |
| Contact Finish | Tin |
| Insulation Material | Polyamide (PA), Nylon |
| Flammability Rating | UL94 V-0 |
| RoHS Status | ROHS3 Compliant |
| MSL Rating | 1 (Unlimited) |
Substitute Part Grouping Explanation
Substitution eligibility for the Molex 0554601072 is determined by strict alignment of the following critical parameters:
- Connector Type & Contact Configuration: Header with male pins
- Position Count & Pitch: 10 positions at 0.079" (2.00mm) mating pitch
- Mounting Technology: Surface mount construction
- Shrouding Design: Shrouded 4-wall configuration
- Termination Method: Solder termination
- Contact Material & Finish: Brass with tin plating
- Insulation Composition: Polyamide or nylon-based materials
- Regulatory Compliance: UL94 V-0 flammability rating and ROHS3 compliance
The TE Connectivity AMP Connectors part 1-1775470-0 meets all mandatory substitution criteria across these parameters, establishing it as a direct functional equivalent despite differences in product status (active vs. obsolete) and certain optional specifications.
Parameter Comparison
| Parameter | Molex 0554601072 | TE Connectivity 1-1775470-0 |
|---|---|---|
| Manufacturer | Molex | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active |
| Connector Type | Header | Header |
| Contact Type | Male Pin | Male Pin |
| Number of Positions | 10 | 10 |
| Pitch - Mating | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Mounting Type | Surface Mount | Surface Mount |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Termination | Solder | Solder |
| Contact Material | Brass | Brass |
| Contact Finish - Mating | Tin | Tin |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA9T), Nylon 9T |
| Flammability Rating | UL94 V-0 | UL94 V-0 |
| Insulation Color | Natural | Natural |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant |
| MSL Rating | 1 (Unlimited) | 1 (Unlimited) |
| Series | Mi II 55460 | High Performance Interconnect (HPI) |
Engineering Selection Recommendations
The TE Connectivity 1-1775470-0 is the designated substitute for the obsolete Molex 0554601072. Both components satisfy identical core electrical and mechanical requirements: 10-position, 2.00mm pitch surface mount headers with shrouded 4-wall construction and solder termination.
Both parts maintain ROHS3 compliance and UL94 V-0 flammability certification, ensuring regulatory alignment in applications requiring these standards. The TE Connectivity part carries active product status with documented availability, providing supply chain continuity for new designs and ongoing production support.
The TE Connectivity substitute offers specified operating temperature range (-25°C to 85°C), current rating (3A), and voltage rating (250V), along with documented contact finish thickness specifications. These parameters support applications in automotive, general purpose, industrial, and medical sectors.
Frequently Asked Questions (FAQ)
Q: What makes the TE Connectivity 1-1775470-0 a valid substitute for the Molex 0554601072?
A: Both connectors share identical core specifications: 10 positions, 2.00mm mating pitch, surface mount technology, shrouded 4-wall design, solder termination, brass contacts with tin finish, and polyamide insulation. Both maintain UL94 V-0 and ROHS3 compliance. These aligned parameters establish functional equivalence for interconnection applications.
Q: Are there mechanical compatibility concerns when substituting these parts?
A: The connectors share identical pitch (2.00mm), position count (10), and shrouding configuration. Insulation height differs slightly (0.276" vs. 0.242"), which may affect mating stack height in constrained applications. PCB footprint compatibility should be verified against original design documentation.
Q: What is the significance of the product status difference?
A: The Molex part is classified as obsolete, indicating discontinued manufacturing and limited availability. The TE Connectivity substitute maintains active status with ongoing production and documented supply. This transition is necessary for long-term design support and component procurement.
Q: Do both parts meet the same regulatory requirements?
A: Yes. Both components are ROHS3 compliant and carry UL94 V-0 flammability certification, satisfying equivalent regulatory standards for industrial and consumer applications.
Q: What packaging format is available for the TE Connectivity substitute?
A: The TE Connectivity 1-1775470-0 is supplied in Tape & Reel (TR) packaging, standard for surface mount production environments.
