Equivalent & Substitute Parts for 0553-0013-HC-F

Part Overview

The 0553-0013-HC-F is a 1.2mH T1/E1 (Single) pulse transformer manufactured by Bel Fuse Inc., designed for telecommunications applications requiring single-channel T1/E1 signal transmission. This component features a 1CT:2CT turns ratio configuration with through-hole mounting. The part is currently classified as obsolete, making identification of functionally equivalent alternatives essential for ongoing system maintenance and new design implementations where legacy compatibility is required.

Substiute Parts

0553-0013-HC-F

Bel Fuse Inc.In Stock: 8020553-0013-HC-F Datasheet

Current PartRFQ

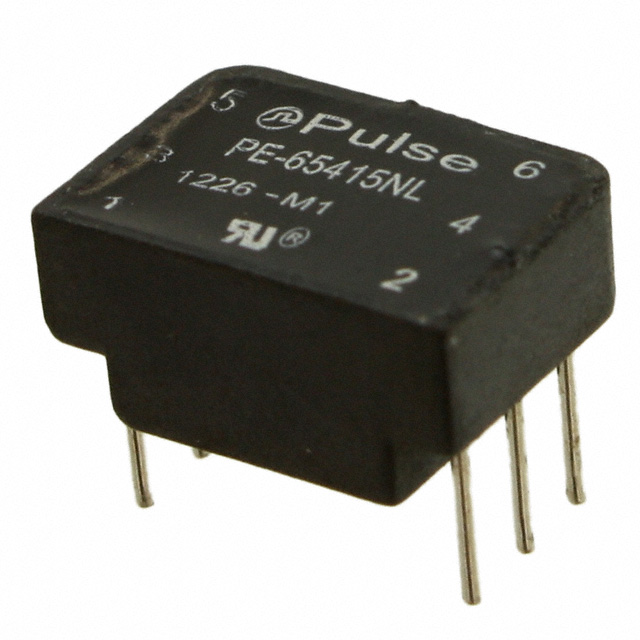

PE-65415NL

Pulse ElectronicsIn Stock: 3601PE-65415NL Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 0553-0013-HC-F is determined by strict equivalence across the following critical parameters:

• Transformer Type: T1/E1 (Single) configuration
• Inductance: 1.2mH
• Turns Ratio: 1CT:2CT
• Mounting Type: Through Hole
• Physical Dimensions: 0.500" L x 0.350" W (12.70mm x 8.89mm)
• Height - Seated (Max): 0.250" (6.35mm)
• Regulatory Compliance: REACH Unaffected, ECCN EAR99, HTSUS 8504.31.2000

The PE-65415NL from Pulse Electronics meets all substitution criteria, maintaining identical electrical specifications and physical form factor while offering active product status and enhanced availability.

Parameter Comparison

Engineering Selection Recommendations

The PE-65415NL serves as a direct functional equivalent to the 0553-0013-HC-F. Both components share identical electrical and mechanical specifications across all critical parameters. The primary distinction is product lifecycle status: the 0553-0013-HC-F is obsolete, while the PE-65415NL maintains active status with confirmed inventory availability of 3500 units.

The PE-65415NL additionally carries ROHS3 compliance certification, providing enhanced environmental regulatory alignment for new designs and system upgrades. Both parts maintain identical REACH and ECCN classifications, ensuring consistent export and supply chain compliance.

For applications requiring the 0553-0013-HC-F, the PE-65415NL is a direct substitution without circuit modification or performance degradation.

Frequently Asked Questions (FAQ)

Q: Can the PE-65415NL replace the 0553-0013-HC-F in existing designs?

A: Yes. The PE-65415NL is electrically and mechanically equivalent. Both components feature identical 1.2mH inductance, 1CT:2CT turns ratio, through-hole mounting, and physical dimensions. Direct substitution is possible without circuit redesign.

Q: What is the primary reason for seeking a substitute for the 0553-0013-HC-F?

A: The 0553-0013-HC-F is classified as obsolete. The PE-65415NL is an active product with established supply chain availability, making it suitable for ongoing production and maintenance applications.

Q: Are there any compliance differences between these parts?

A: Both parts maintain REACH Unaffected status and EAR99 ECCN classification. The PE-65415NL additionally carries ROHS3 compliance, which may be required for certain regulatory jurisdictions or customer specifications.

Q: Do the physical dimensions match exactly?

A: Yes. Both components share identical dimensions: 0.500" L x 0.350" W (12.70mm x 8.89mm) with a maximum seated height of 0.250" (6.35mm). PCB layout and mounting hole patterns are compatible.

Q: What is the moisture sensitivity level for both parts?

A: Both the 0553-0013-HC-F and PE-65415NL carry MSL 1 (Unlimited) classification, indicating no moisture sensitivity constraints during storage or handling.
