Molex 0544770608 Equivalent & Substitute Parts

Part Overview

The Molex 0544770608 is a 60-position rectangular connector receptacle with center strip contacts designed for surface mount applications. This connector features gold-plated contacts and is part of the SlimStack 54477 series. The part is currently classified as obsolete, making identification of functionally equivalent alternatives essential for ongoing design support, production continuity, and component sourcing.

Substiute Parts

0544770608

MolexIn Stock: 9860544770608 Datasheet

Current PartRFQ

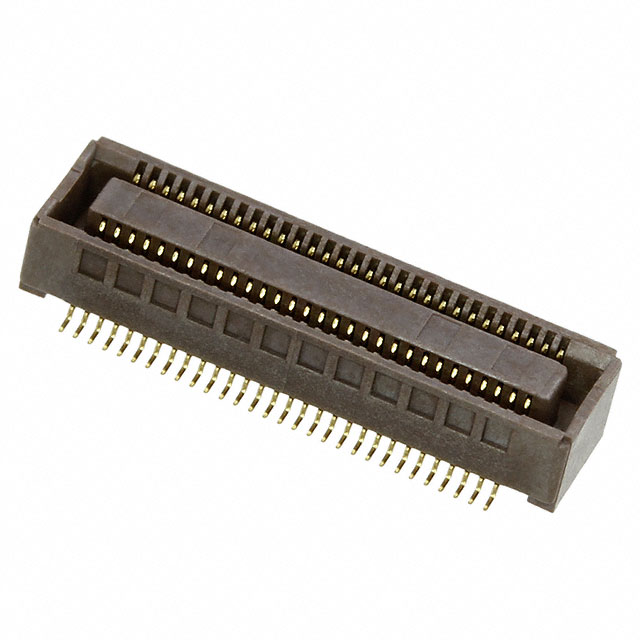

0546840604

MolexIn Stock: 103070546840604 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Molex 0544770608 is determined by the following critical parameters:

• Connector Type: Receptacle with center strip contacts
• Number of Positions: 60 positions
• Pitch: 0.016" (0.40mm)
• Number of Rows: 2 rows
• Mounting Type: Surface mount
• Contact Finish: Gold plating
• Height Above Board: 0.102" (2.60mm)
• Regulatory Compliance: ROHS3 compliant, REACH unaffected

The Molex 0546840604 meets all these critical parameters and is classified as an active product with current manufacturing support. This part belongs to the SlimStack 54684 series and maintains full electrical and mechanical compatibility with the obsolete 0544770608.

Parameter Comparison

Engineering Selection Recommendations

The Molex 0546840604 is the manufacturer-recommended substitute for the obsolete 0544770608. Both parts maintain identical electrical and mechanical specifications for the critical connector parameters: 60 positions, 0.016" pitch, 2-row configuration, surface mount design, and gold contact finish.

The 0546840604 offers the advantage of active product status with current manufacturing support and availability. Both parts are ROHS3 compliant and REACH unaffected, meeting current regulatory requirements.

The contact finish thickness differs between the two parts (10.0µin versus 4.00µin), but both maintain gold plating suitable for the connector application. The substitute part supports both 4.6mm and 4mm mated stacking heights, providing additional flexibility compared to the main part's 4mm specification.

Frequently Asked Questions (FAQ)

Q: Can the Molex 0546840604 be used as a direct replacement for the 0544770608?

A: Yes. Both parts share identical connector type, position count, pitch, row configuration, mounting type, contact finish, and height above board specifications. The 0546840604 is the manufacturer-recommended substitute.

Q: What is the difference in contact finish thickness between these parts?

A: The 0544770608 has a contact finish thickness of 10.0µin (0.25µm), while the 0546840604 has 4.00µin (0.100µm). Both maintain gold plating and are suitable for connector applications.

Q: Are there packaging differences between these parts?

A: The 0544770608 packaging is not specified in the available data. The 0546840604 is supplied in Tape & Reel (TR) packaging.

Q: Do both parts meet current regulatory compliance?

A: Yes. Both the 0544770608 and 0546840604 are ROHS3 compliant and REACH unaffected.

Q: What are the mated stacking height options?

A: The 0544770608 supports 4mm mated stacking height. The 0546840604 supports both 4.6mm and 4mm mated stacking heights.

Q: Why is the 0544770608 classified as obsolete?

A: The 0544770608 is no longer in active production. The 0546840604 represents the current active alternative within the Molex SlimStack connector family.
