Molex 0541323633 FFC/FPC Connector - Equivalent & Substitute Parts

Part Overview

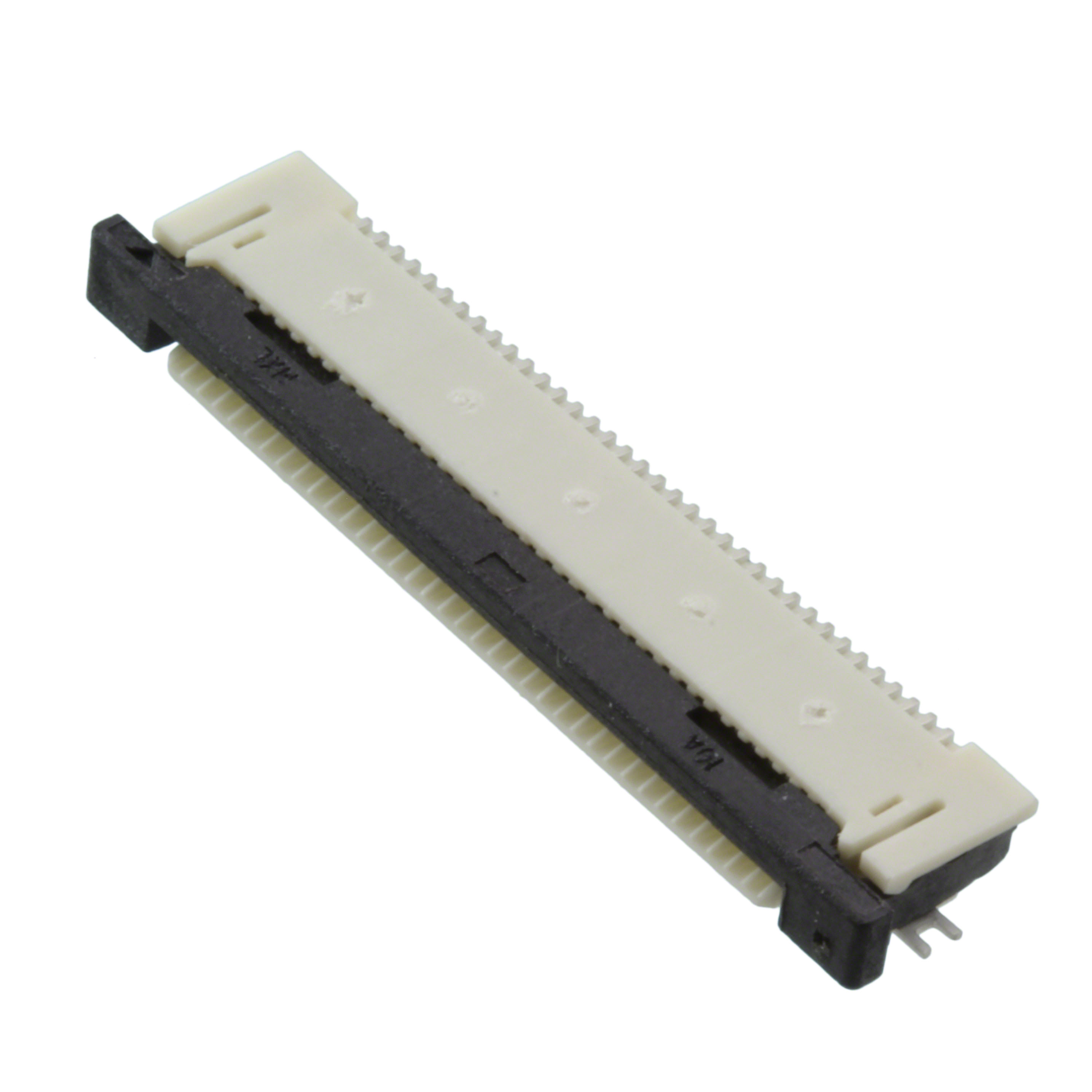

The Molex 0541323633 is a 36-position FFC/FPC connector with 0.5mm pitch, bottom-mounted contacts, and right-angle surface mount configuration. This connector is classified as obsolete, making equivalent and substitute parts necessary for ongoing production and maintenance applications. The part features zero insertion force (ZIF) operation, slide lock retention, and solder termination suitable for flat flexible cable assemblies in consumer electronics and industrial equipment.

Substiute Parts

0541323633

MolexIn Stock: 194180541323633 Datasheet

Current PartRFQ

0541323697

MolexIn Stock: 54420541323697 Datasheet

MFR RecommendedRFQ

62684-362100ALF

Amphenol ICC (FCI)In Stock: 214862684-362100ALF Datasheet

MFR RecommendedRFQ

62684-36210E9ALF

Amphenol ICC (FCI)In Stock: 203062684-36210E9ALF Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Molex 0541323633 is determined by the following critical parameters:

• Number of Positions: Must be 36
• Pitch: Must be 0.020" (0.50mm)
• Mounting Type: Must be Surface Mount, Right Angle
• Voltage Rating: Must be 50V
• Current Rating: Must be 0.5A
• Locking Feature: Must be Slide Lock
• Termination: Must be Solder

The substitute parts listed meet these core electrical and mechanical requirements. However, variations exist in contact orientation (bottom vs. top), contact finish material, housing composition, and product status. These variations are documented in the parameter comparison table below.

Parameter Comparison

Engineering Selection Recommendations

Molex 0541323697 is the primary equivalent substitute. This part maintains identical electrical specifications, mechanical dimensions, and contact configuration (bottom-mounted) as the original 0541323633. The key difference is active product status, ensuring long-term availability and supply chain continuity. Operating temperature range is narrower (-20°C ~ 85°C vs. -40°C ~ 85°C), which must be evaluated against application requirements. Packaging is supplied as Tape & Reel (TR) rather than Cut Tape (CT).

Amphenol ICC 62684-362100ALF and 62684-36210E9ALF are cross-manufacturer alternatives with identical electrical ratings and pitch specifications. Both parts feature top-mounted contacts rather than bottom-mounted, requiring PCB layout modification. Contact finish is gold instead of tin bismuth, providing enhanced corrosion resistance. Operating temperature range extends to -55°C, offering broader environmental capability. The 62684-362100ALF maintains active product status, while 62684-36210E9ALF is obsolete.

Selection between these substitutes depends on PCB design constraints (contact orientation), environmental operating range requirements, and supply availability. All listed parts comply with RoHS and REACH regulations as specified.
