Equivalent & Substitute Parts for Molex 0530141210

Part Overview

The Molex 0530141210 is a rectangular connector header, vertical orientation, 12-position, 2mm pitch (MicroBlade 53014 series). This through-hole component features shrouded 4-wall design with kinked pin solder termination and detent lock fastening. The part is classified as obsolete, necessitating identification of active equivalent components that maintain functional and mechanical compatibility for board-to-cable/wire applications.

Substiute Parts

0530141210

MolexIn Stock: 10610530141210 Datasheet

Current PartRFQ

0532531270

MolexIn Stock: 116780532531270 Datasheet

MFR RecommendedRFQ

1-292132-2

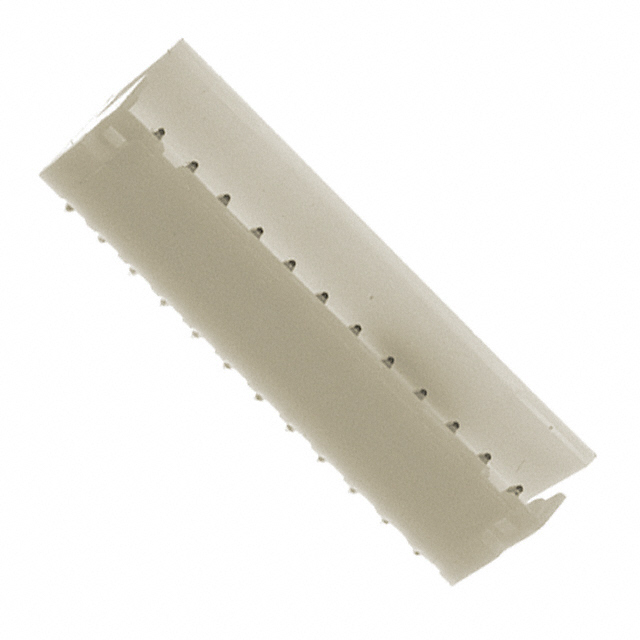

TE Connectivity AMP ConnectorsIn Stock: 28911-292132-2 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Molex 0530141210 is determined by the following mandatory parameters:

• Connector type: Header
• Pitch - mating: 0.079" (2.00mm)
• Number of positions: 12
• Number of rows: 1
• Mounting type: Through hole
• Termination: Kinked pin, solder
• Fastening type: Detent lock
• Style: Board to cable/wire
• Material flammability rating: UL94 V-0
• RoHS status: ROHS3 compliant
• Moisture sensitivity level: 1 (Unlimited)

Two active substitute parts meet these criteria: Molex 0532531270 (Micro-Latch 53253 series) and TE Connectivity 1-292132-2 (CT series). Both maintain the core electrical and mechanical interface requirements while offering improved product availability and active manufacturing status.

Parameter Comparison

Engineering Selection Recommendations

Both substitute parts are active products with ROHS3 compliance and UL94 V-0 flammability rating, meeting regulatory requirements for the 0530141210 application space.

Molex 0532531270 maintains manufacturer continuity within the Molex connector portfolio. This part offers equivalent contact post length (0.138", 4.60mm) and similar overall contact length (0.331", 8.40mm), with mated stacking height specification of 5.7mm. The 3-wall shrouding differs from the original 4-wall design. Contact material transitions from phosphor bronze to brass.

TE Connectivity 1-292132-2 provides cross-manufacturer substitution with 4-wall shrouding matching the original design. This part specifies 125VAC voltage rating and current rating varying by wire gauge. Overall contact length is 0.358" (9.09mm) and insulation height is 0.268" (6.80mm), representing dimensional increases from the original specification.

Selection between substitutes depends on mechanical envelope constraints, shrouding requirements, and voltage/current specifications for the target application.

Frequently Asked Questions (FAQ)

Q: Can the Molex 0532531270 directly replace the 0530141210 in existing designs?

A: Both parts share the same 2mm pitch, 12-position configuration, through-hole mounting, kinked pin solder termination, and detent lock fastening. The 0532531270 features 3-wall shrouding versus the original 4-wall design and uses square contacts instead of rectangular. Contact post length is identical at 0.138" (4.60mm). Mechanical envelope compatibility depends on shrouding geometry and contact shape tolerance in the mating connector.

Q: What are the dimensional differences between substitute parts?

A: The 0532531270 maintains overall contact length of 0.331" (8.40mm) and insulation height of 0.217" (5.51mm). The 1-292132-2 has overall contact length of 0.358" (9.09mm) and insulation height of 0.268" (6.80mm). These differences may affect board-level clearances and mating connector compatibility.

Q: Are both substitutes suitable for automotive applications?

A: The Molex 0532531270 lists automotive applications in its specification. The TE Connectivity 1-292132-2 specifies general purpose applications. Application suitability depends on specific automotive qualification requirements and environmental conditions.

Q: What is the difference between contact types across these parts?

A: The original 0530141210 uses male blade contacts. Both substitutes use male pin contacts (square pins in the 0532531270, circular pins in the 1-292132-2). Contact shape affects mating connector receptacle design and insertion force characteristics.

Q: Do all parts meet the same compliance standards?

A: All three parts are ROHS3 compliant with UL94 V-0 flammability rating and moisture sensitivity level 1 (unlimited). The 1-292132-2 additionally specifies 125VAC voltage rating. Compliance certifications are equivalent across parts for general industrial applications.

Q: What packaging options are available?

A: The 0530141210 is supplied in standard packaging. The 0532531270 is packaged in trays. The 1-292132-2 is supplied in bulk packaging. Packaging selection affects inventory management and component handling procedures.
