Molex 0530140910 Equivalent & Substitute Parts

Part Overview

The Molex 0530140910 is a rectangular connector header designed for through-hole mounting in 9-position, single-row configurations with 0.079" (2.00mm) pitch spacing. This connector belongs to the MicroBlade 53014 series and features shrouded 4-wall construction with kinked pin solder termination and detent lock fastening. The part is classified as obsolete, making identification of functionally equivalent alternatives necessary for ongoing design support and component procurement.

Substiute Parts

0530140910

MolexIn Stock: 8340530140910 Datasheet

Current PartRFQ

292132-9

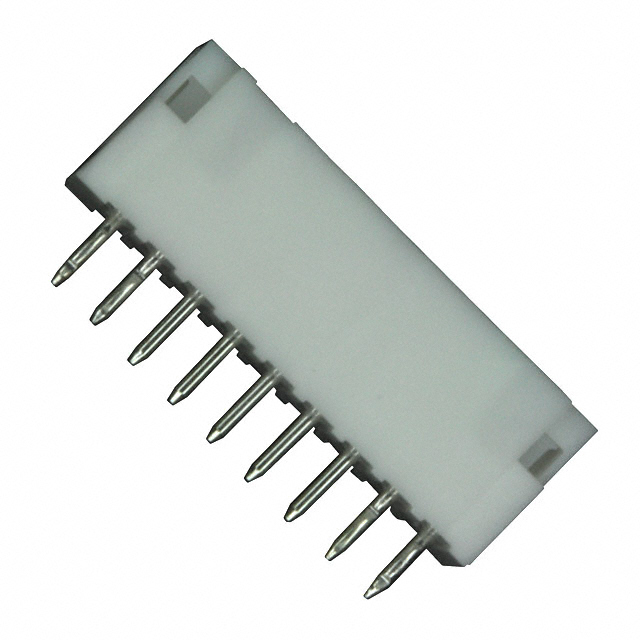

TE Connectivity AMP ConnectorsIn Stock: 5377292132-9 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Molex 0530140910 is determined by the following critical parameters:

• Connector Type: Header (male contact side)
• Number of Positions: 9
• Pitch - Mating: 0.079" (2.00mm)
• Mounting Type: Through Hole
• Shrouding: Shrouded - 4 Wall
• Termination: Kinked Pin, Solder
• Fastening Type: Detent Lock
• Style: Board to Cable/Wire
• Number of Rows: 1
• Compliance: ROHS3 Compliant, UL94 V-0

The TE Connectivity AMP Connectors part 292132-9 meets all critical substitution criteria. Both connectors share identical mating pitch, position count, shrouding configuration, through-hole mounting, solder termination, and detent lock fastening. Both are ROHS3 compliant and UL94 V-0 rated. The substitute part is currently active in production, providing long-term availability for replacement and new designs.

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity 292132-9 is the qualified substitute for the obsolete Molex 0530140910. Both parts maintain identical electrical and mechanical interface specifications: 9-position, 2.00mm pitch, through-hole mounting, shrouded 4-wall construction, kinked pin solder termination, and detent lock fastening.

The substitute part offers the advantage of active production status, ensuring long-term component availability and supply chain continuity. Both parts carry ROHS3 compliance and UL94 V-0 flammability certification, meeting regulatory requirements for equivalent applications.

Minor differences exist in contact geometry (rectangular versus circular) and contact material (phosphor bronze versus brass), with both material compositions providing equivalent electrical performance and solder joint reliability for general-purpose and telecommunications applications. The insulation material composition differs slightly (glass-filled versus non-filled polyamide), with both formulations meeting the same flammability and moisture sensitivity specifications.

Frequently Asked Questions (FAQ)

Q: Can the TE Connectivity 292132-9 be used as a direct replacement for the Molex 0530140910?

A: Yes. Both connectors share identical mating pitch (2.00mm), position count (9), mounting method (through-hole), shrouding configuration (4-wall), termination type (kinked pin solder), and fastening mechanism (detent lock). The connectors are mechanically and electrically compatible for board-to-cable/wire applications.

Q: What are the differences between these two connectors?

A: The primary differences are contact shape (rectangular in Molex versus circular in TE Connectivity) and contact material (phosphor bronze versus brass). The TE Connectivity part also uses non-glass-filled polyamide insulation compared to the glass-filled formulation in the Molex part. These differences do not affect functional compatibility for the specified applications.

Q: Why is the Molex 0530140910 classified as obsolete?

A: Obsolete status indicates the part is no longer manufactured by Molex. The TE Connectivity 292132-9 provides functional equivalence with active production status, ensuring continued availability for replacement and new design applications.

Q: Are there any compliance or certification differences?

A: No. Both parts are ROHS3 compliant, UL94 V-0 rated, carry MSL 1 (Unlimited) moisture sensitivity level, and share identical ECCN (EAR99) and HTSUS (8536.69.4040) classifications.

Q: What is the packaging difference?

A: The Molex part is listed with unspecified packaging, while the TE Connectivity substitute is supplied in bulk packaging. Confirm packaging requirements with your procurement specifications.

Q: Are the electrical ratings identical?

A: The Molex 0530140910 does not specify current or voltage ratings in the provided data. The TE Connectivity 292132-9 is rated for 125VAC with current rating varying by wire gauge. Consult detailed datasheets for specific electrical performance requirements.
