Molex 0510041300 Equivalent & Substitute Parts

Part Overview

The Molex 0510041300 is a 13-position rectangular connector receptacle housing with 2.00mm pitch, designed for free-hanging in-line applications using crimp termination. This part is classified as obsolete, necessitating identification of active equivalent alternatives to maintain supply chain continuity and support ongoing production requirements. Substitute parts must maintain identical electrical and mechanical specifications to ensure direct interchangeability without design modifications.

Substiute Parts

0510041300

MolexIn Stock: 44350510041300 Datasheet

Current PartRFQ

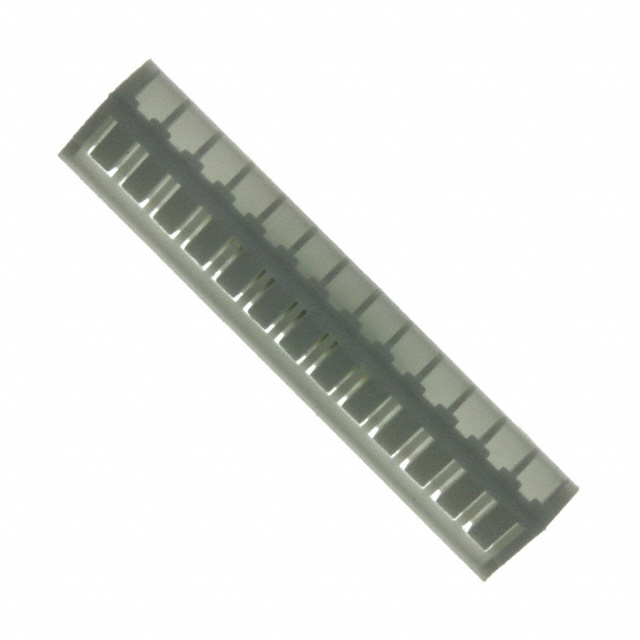

1-1470201-3

TE Connectivity AMP ConnectorsIn Stock: 10871-1470201-3 Datasheet

MFR RecommendedRFQ

PHR-13

JST Sales America Inc.In Stock: 6438PHR-13 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Molex 0510041300 is determined by strict equivalence across the following parameters: connector type (receptacle), contact type (female socket), number of positions (13), pitch (2.00mm), number of rows (1), mounting type (free hanging in-line), and contact termination method (crimp). Parts meeting all these criteria are classified as direct substitutes. The identified substitute parts—TE Connectivity 1-1470201-3 and JST PHR-13—satisfy all mandatory electrical and mechanical parameters required for interchangeability.

Parameter Comparison

Engineering Selection Recommendations

Both TE Connectivity 1-1470201-3 and JST PHR-13 are qualified substitutes for the obsolete Molex 0510041300. Selection between these alternatives should be based on supply availability and compliance requirements. The TE Connectivity part maintains RoHS compliance status and carries active product status with 1035 units in stock. The JST PHR-13 offers ROHS3 compliance with REACH unaffected status and higher inventory availability at 6369 units. Both parts satisfy identical electrical and mechanical specifications, MSL ratings, and export classification requirements. The choice between these substitutes does not introduce technical risk when all connector contacts are sourced to match the selected housing manufacturer's specifications.

Frequently Asked Questions (FAQ)

Q: Can the TE Connectivity 1-1470201-3 and JST PHR-13 be used interchangeably with the Molex 0510041300?

A: Both parts meet all mandatory substitution criteria: 13-position receptacle housings with 2.00mm pitch, female socket contacts, crimp termination, and free-hanging in-line mounting. Direct interchangeability is established based on these electrical and mechanical parameters.

Q: Are there differences in fastening mechanisms between the substitute parts?

A: The Molex 0510041300 uses a locking ramp fastening type. The TE Connectivity 1-1470201-3 does not specify a fastening type in available data. The JST PHR-13 uses a detent lock fastening mechanism. These differences do not affect housing interchangeability when mated with compatible connector plugs.

Q: What is the significance of the MSL rating for these parts?

A: All three parts carry MSL 1 (Unlimited) rating, indicating no moisture sensitivity restrictions during storage, handling, or assembly. This parameter is identical across all options.

Q: Do these substitute parts require different contact specifications?

A: All three housings are specified as contacts not included. Contact selection must be based on the specific connector series and gauge requirements of your application. Ensure selected contacts are compatible with the chosen housing manufacturer's specifications.

Q: Are there compliance differences between the substitute options?

A: The Molex 0510041300 and JST PHR-13 are ROHS3 compliant. The TE Connectivity 1-1470201-3 is RoHS compliant. The JST PHR-13 carries REACH unaffected status. All three parts are classified as EAR99 for export purposes. Selection should align with your specific regulatory requirements.
