Molex 0474910001 Equivalent & Substitute Parts

Part Overview

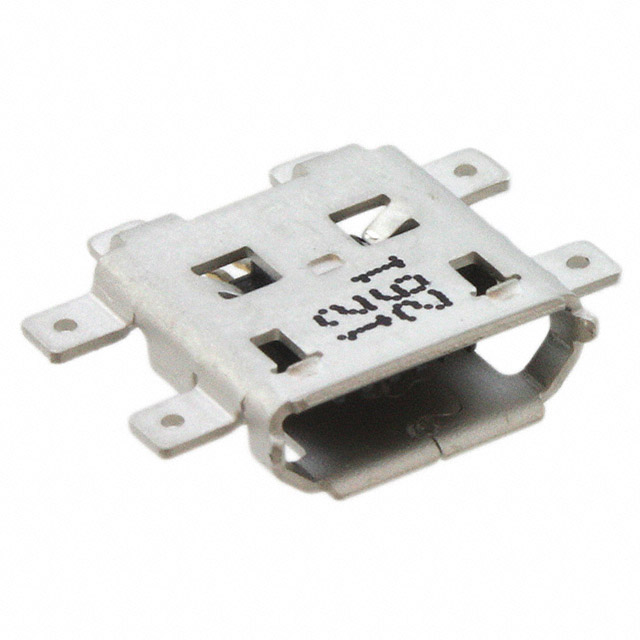

The Molex 0474910001 is an active USB micro B receptacle connector designed for surface mount applications with board cutout mounting. This 5-position connector operates across -35°C to 85°C and supports 10,000 mating cycles with a current rating of 1A to 1.8A at 30VAC. The component is ROHS3 compliant and carries UL94 V-0 flammability certification. Equivalent parts are identified when design requirements necessitate alternative sourcing due to inventory constraints, supply chain considerations, or specific application parameters.

Substiute Parts

0474910001

MolexIn Stock: 15540474910001 Datasheet

Current PartRFQ

UB-MC5BR3-M404-4S-TB NMP

JST Sales America Inc.In Stock: 18126UB-MC5BR3-M404-4S-TB NMP Datasheet

MFR RecommendedRFQ

USB3070-30-A

GCTIn Stock: 1656USB3070-30-A Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the Molex 0474910001 are qualified based on the following critical parameters:

• Connector Type: USB - micro B receptacle
• Number of Contacts: 5 positions
• Gender: Receptacle
• Mounting Configuration: Surface mount with board cutout, right angle orientation
• Mounting Feature: Horizontal, mid mount
• Termination Method: Solder with solder retention
• Current Capacity: Minimum 1A, with 1.8A support
• Voltage Rating: 30VAC minimum
• Mating Cycle Durability: 10,000 cycles
• Contact Material: Gold finish
• Flammability Compliance: UL94 V-0
• Environmental Compliance: RoHS3 compliant

The following parts meet these substitution criteria:

JST Sales America Inc. UB-MC5BR3-M404-4S-TB NMP - Meets all core electrical and mechanical parameters with equivalent 5-position micro B receptacle configuration, solder termination, and compliance certifications.

GCT USB3070-30-A - Meets all core electrical and mechanical parameters with equivalent 5-position micro B receptacle configuration, solder termination, and compliance certifications. Includes USB 2.0 specification designation.

Parameter Comparison

Engineering Selection Recommendations

Both substitute parts maintain active product status and full compliance with applicable regulatory standards. The Molex 0474910001 and GCT USB3070-30-A are both ROHS3 compliant with identical electrical specifications. The JST UB-MC5BR3-M404-4S-TB NMP is RoHS compliant and provides equivalent functionality with an extended current rating option of 0.5A.

Selection between these parts depends on specific application requirements:

• For applications requiring shielded configurations with identical temperature range (-35°C to 85°C), the Molex 0474910001 or GCT USB3070-30-A are appropriate.
• For applications where unshielded configuration is acceptable and DC voltage rating is required, the JST UB-MC5BR3-M404-4S-TB NMP provides an alternative with broader current rating flexibility.
• The GCT USB3070-30-A includes explicit USB 2.0 specification designation, suitable for applications requiring formal USB 2.0 compliance documentation.

All three parts carry UL94 V-0 flammability certification, gold-plated contacts, stainless steel shielding material, and support 10,000 mating cycles.

Frequently Asked Questions (FAQ)

Q: Can the JST UB-MC5BR3-M404-4S-TB NMP be used as a direct replacement for the Molex 0474910001?

A: The JST part meets all core electrical and mechanical substitution criteria including 5-position micro B receptacle configuration, solder termination, and compliance certifications. The primary difference is shielding configuration: the JST part is unshielded while the Molex part is shielded. Application-specific EMI requirements determine compatibility.

Q: What is the difference between the Molex 0474910001 and GCT USB3070-30-A?

A: Both parts are shielded 5-position micro B receptacle connectors with identical current ratings (1A, 1.8A) and mating cycle durability (10,000 cycles). The GCT part specifies USB 2.0 compliance and uses board edge mounting in addition to board cutout, while the Molex part specifies board cutout mounting. Both operate across -30°C to 85°C minimum temperature range.

Q: Are all three parts RoHS compliant?

A: The Molex 0474910001 and GCT USB3070-30-A are ROHS3 compliant. The JST UB-MC5BR3-M404-4S-TB NMP is RoHS compliant. All three parts meet applicable environmental compliance standards.

Q: What is the moisture sensitivity level difference between these parts?

A: The Molex 0474910001 and JST UB-MC5BR3-M404-4S-TB NMP both carry MSL 1 (Unlimited) rating. The GCT USB3070-30-A lists MSL as Not Applicable. MSL 1 indicates no moisture sensitivity restrictions during storage or handling.

Q: Can these parts be used interchangeably in high-temperature applications?

A: The Molex 0474910001 operates to 85°C maximum. The JST and GCT parts also operate to 85°C maximum. For applications requiring operation below -30°C, the Molex 0474910001 extends to -35°C minimum, providing a 5°C advantage over the JST and GCT alternatives.
