Equivalent & Substitute Parts for Molex 0471531002

Part Overview

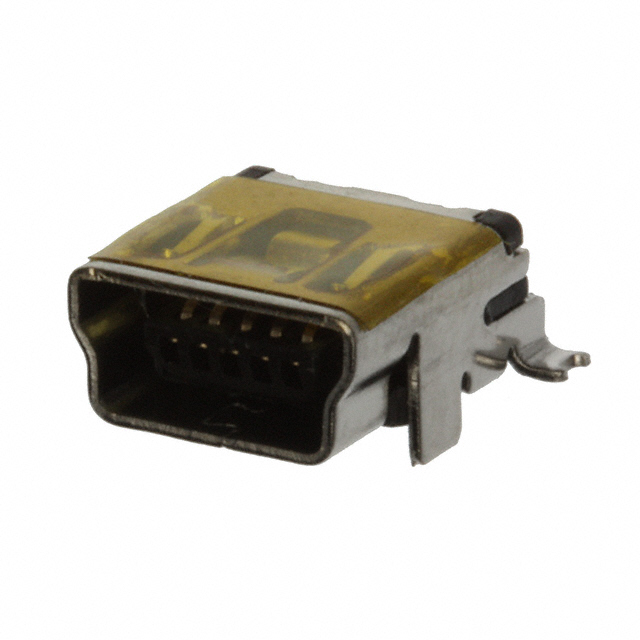

The Molex 0471531002 is a USB 2.0 mini B receptacle connector designed for surface mount, right-angle applications with 5 positions. This connector is classified as Obsolete, which necessitates identification of active alternative components that maintain functional and electrical compatibility for new designs or production transitions.

Substiute Parts

0471531002

MolexIn Stock: 8160471531002 Datasheet

Current PartRFQ

0513870530

MolexIn Stock: 129580513870530 Datasheet

Parametric EquivalentRFQ

0548190572

MolexIn Stock: 629220548190572 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the Molex 0471531002 are qualified based on the following mandatory parameters:

• Connector Type: USB - mini B
• Number of Contacts: 5
• Gender: Receptacle
• Specifications: USB 2.0 OTG
• Mounting Type: Surface Mount, Right Angle; Through Hole
• Mounting Feature: Horizontal
• Termination: Solder
• Shielding: Shielded
• Contact Finish: Gold
• Material Flammability Rating: UL94 V-0
• RoHS Status: ROHS3 Compliant
• Moisture Sensitivity Level: 1 (Unlimited)

The identified substitute parts meet all core functional and electrical requirements. Variations in operating temperature range, voltage rating, current rating, and mating cycles are noted in the parameter comparison but do not preclude substitution when application requirements fall within the substitute part specifications.

Parameter Comparison

Engineering Selection Recommendations

Both substitute parts are Active products with ROHS3 compliance and Moisture Sensitivity Level 1, providing long-term supply assurance compared to the Obsolete main part.

Molex 0513870530 is suitable for applications with operating temperature requirements between 0°C and 50°C and voltage requirements up to 30VAC/DC.

Molex 0548190572 is suitable for applications requiring the full operating temperature range of -20°C to 85°C, matching the main part specification, with rated voltage of 30V and specified mating cycle capability of 5000 cycles.

Selection between substitute parts should be based on application-specific operating temperature and voltage requirements. Both parts are available in Tape & Reel packaging for production environments.

Frequently Asked Questions (FAQ)

Q: Can the Molex 0513870530 be used as a direct replacement for the 0471531002?

A: The 0513870530 is functionally compatible for USB 2.0 mini B receptacle applications. However, its operating temperature range (0°C ~ 50°C) is narrower than the main part (-20°C ~ 85°C). Substitution is valid only if the application operates within the 0513870530 temperature specification.

Q: What is the primary difference between the two substitute parts?

A: The Molex 0548190572 matches the full operating temperature range of the main part (-20°C ~ 85°C) and includes specified mating cycle capability (5000 cycles). The 0513870530 has a restricted operating temperature range (0°C ~ 50°C) but is otherwise functionally equivalent.

Q: Are there packaging differences between the main part and substitutes?

A: The main part packaging is not specified. Both substitute parts are supplied in Tape & Reel (TR) packaging, which is standard for production surface mount applications.

Q: Do the substitute parts maintain the same shell material as the main part?

A: The main part uses Steel and Stainless steel for shell/shielding material. Both substitute parts use Copper Alloy. Both materials provide shielding and meet UL94 V-0 flammability requirements.

Q: What voltage and current ratings should be considered for substitution?

A: The main part is rated for 100VAC/DC with current ratings of 1A and 1.8A. Both substitute parts are rated for 30V with 1A current rating. Substitution is valid only if the application voltage and current requirements do not exceed 30V and 1A respectively.
