Molex 0432028113 Equivalent & Substitute Parts

Part Overview

The Molex 0432028113 is a jack modular connector (8p8c/RJ45) with 90° right-angle orientation, unshielded design, and through-hole solder termination. Rated for Cat4 performance, this connector features board lock and keyed design with phosphor bronze gold-plated contacts. The part is currently active in production with 831 units in stock.

Substitute parts are necessary when the primary part becomes unavailable, when design requirements shift toward enhanced shielding or higher category ratings, or when alternative sourcing improves supply chain resilience. The following equivalent and substitute parts maintain core functional compatibility while offering variations in shielding, category rating, and mounting specifications.

Key Parameters

Parameter	Molex 0432028113
Connector Type	Jack Modular (8p8c/RJ45)
Orientation	90° Angle (Right)
Mounting Type	Through Hole
Termination	Solder
Shielding	Unshielded
Category Rating	Cat4
Contact Material	Phosphor Bronze
Contact Finish	Gold (50.0µin / 1.27µm)
Operating Temperature	-40°C to 85°C
RoHS Status	ROHS3 Compliant
MSL Rating	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution eligibility is determined by the following core parameters:

Primary Compatibility Criteria:

Connector type: 8p8c/RJ45 jack modular
Orientation: 90° right-angle
Termination method: Solder
Contact material: Phosphor bronze with gold finish
Operating temperature range: -40°C to 85°C minimum
Moisture sensitivity: MSL 1

Allowable Variations:

Shielding: Unshielded primary part allows substitution with shielded variants (shielded provides EMI protection without functional incompatibility)
Category rating: Cat4 primary part allows substitution with Cat5 or higher (backward compatible)
Mounting type: Through hole primary allows substitution with board edge/cutout variants where mechanical fit permits
Contact finish thickness: Variations within gold plating specification acceptable
Housing material: Polyamide, nylon, thermoplastic, or PBT variants acceptable

Excluded from Substitution:

Different connector types or pin counts
Orientation other than 90° right-angle
Termination methods other than solder
Operating temperature ranges below -40°C to 85°C
MSL ratings higher than 1

Parameter Comparison

Part Number	Manufacturer	Shielding	Category	Mounting Type	Contact Finish Thickness	Operating Temp	RoHS Status	Product Status	Inventory
0432028113	Molex	Unshielded	Cat4	Through Hole	50.0µin (1.27µm)	-40°C to 85°C	ROHS3	Active	831
1116503-2	TE Connectivity	Shielded, EMI Finger	Cat5	Board Edge/Through Hole	50.0µin (1.27µm)	-40°C to 85°C	RoHS	Active	2111
1116504-2	TE Connectivity	Unshielded	Cat5	Board Edge/Through Hole	50.0µin (1.27µm)	-40°C to 85°C	ROHS3	Active	1324
A-20042/LP	Assmann WSW	Unshielded	Not Specified	Through Hole	6.00µin (0.152µm)	-40°C to 85°C	ROHS3	Active	1051
E5388-000012-L	Pulse Electronics	Unshielded	Cat3	Through Hole	6.00µin (0.152µm)	-40°C to 85°C	RoHS	Obsolete	4221
FRJAE-408	Amphenol ICC	Unshielded	Not Specified	Through Hole	50.0µin (1.27µm)	-55°C to 85°C	RoHS	Active	1568
FRJAE-418	Amphenol ICC	Shielded	Not Specified	Through Hole	50.0µin (1.27µm)	-55°C to 85°C	RoHS	Active	1232

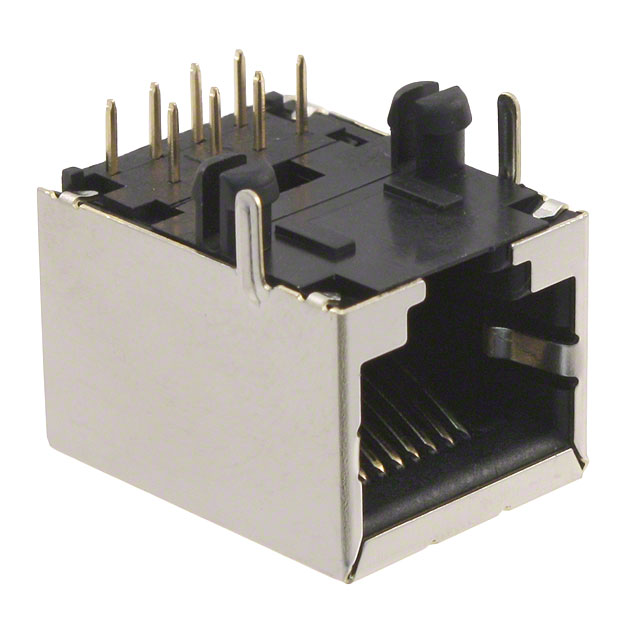

FRJAE-438	Amphenol ICC	Shielded	Not Specified	Through Hole	50.0µin (1.27µm)	-55°C to 85°C	RoHS	Active	2200
FRJAE-468	Amphenol ICC	Shielded	Not Specified	Through Hole	50.0µin (1.27µm)	-55°C to 85°C	RoHS	Active	5233

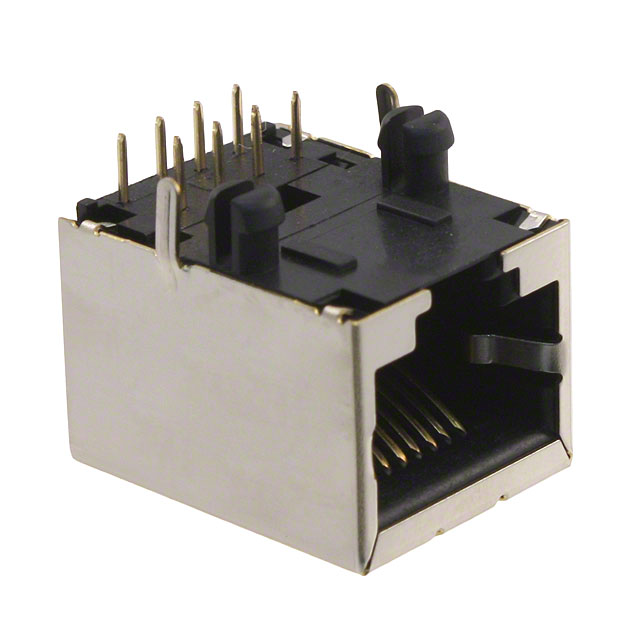

FRJAE-488	Amphenol ICC	Shielded	Not Specified	Through Hole	50.0µin (1.27µm)	-55°C to 85°C	RoHS	Active	2162

Engineering Selection Recommendations

Direct Unshielded Equivalents (Preferred for Pin-Compatible Replacement):

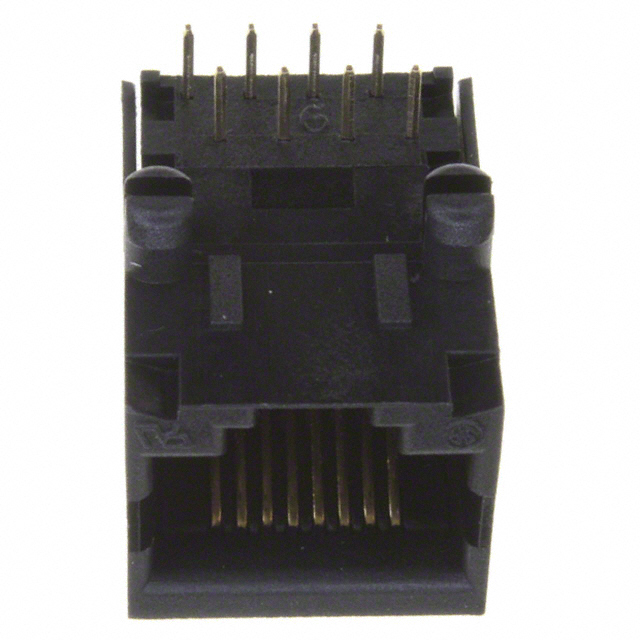

1116504-2 (TE Connectivity) and FRJAE-408 (Amphenol ICC) are the primary unshielded alternatives. Both maintain through-hole mounting, solder termination, and phosphor bronze gold-plated contacts. The 1116504-2 offers Cat5 rating (superior to Cat4) with identical contact finish thickness. The FRJAE-408 extends operating temperature to -55°C. Both are active products with robust inventory levels.

Shielded Alternatives (Enhanced EMI Protection):

1116503-2, FRJAE-418, FRJAE-438, and FRJAE-468 provide shielded variants. These are suitable when EMI rejection becomes a design requirement. The 1116503-2 combines shielding with Cat5 rating and board edge/through-hole flexibility. Amphenol FRJAE shielded variants (418, 438, 468) offer extended temperature range (-55°C to 85°C) and high inventory availability.

Avoid:

E5388-000012-L (Pulse Electronics) carries obsolete product status and lower Cat3 rating. A-20042/LP (Assmann WSW) lacks category specification and has reduced contact finish thickness (6.00µin vs. 50.0µin standard).

Compliance Considerations:

All recommended substitutes maintain RoHS compliance. The primary part and most substitutes are ROHS3 compliant. MSL 1 rating is consistent across all parts, indicating unlimited shelf life under standard storage conditions.

Frequently Asked Questions (FAQ)

Q: Can I substitute an unshielded connector with a shielded variant?

A: Yes. Shielded connectors are functionally compatible with unshielded designs. The shielding provides additional EMI rejection without affecting pin compatibility or electrical performance. Mechanical fit must be verified for board layout.

Q: What is the difference between Cat4 and Cat5 ratings?

A: Cat5 connectors support higher bandwidth and are backward compatible with Cat4 applications. Substituting Cat4 with Cat5 introduces no functional risk and improves performance headroom.

Q: Are Amphenol FRJAE-408, FRJAE-418, FRJAE-438, and FRJAE-468 interchangeable?

A: FRJAE-408 is unshielded; FRJAE-418, FRJAE-438, and FRJAE-468 are shielded variants. Within the shielded group, all three are mechanically and electrically compatible. Selection depends on EMI filtering requirements and board space constraints.

Q: Does the extended temperature range (-55°C to 85°C) on Amphenol parts affect compatibility?

A: No. Extended temperature range is a superset of the primary part's range (-40°C to 85°C). Amphenol parts are fully compatible and suitable for applications requiring lower temperature operation.

Q: Why does A-20042/LP have lower contact finish thickness?

A: Contact finish thickness variation (6.00µin vs. 50.0µin) affects contact durability and mating cycle life. The primary part and recommended substitutes maintain 50.0µin thickness for consistent performance. A-20042/LP is not recommended as a primary substitute.

Q: Is the TE Connectivity 1116503-2 suitable for my unshielded design?

A: The 1116503-2 is shielded and includes an EMI finger. While mechanically compatible, it introduces shielding not present in the original design. Use only if EMI performance becomes a requirement or if board layout permits the additional shielding structure.

Q: What is the inventory advantage of selecting FRJAE-468 over other Amphenol variants?

A: FRJAE-468 has the highest inventory level (5233 units) among Amphenol shielded options. This provides supply chain advantage for high-volume production. Electrical and mechanical specifications are equivalent to FRJAE-418 and FRJAE-488.
