Molex 0430454811 Equivalent & Substitute Parts

Part Overview

The Molex 0430454811 is a Rectangular Connector Header designed for surface mount applications with 3mm pitch in a right-angle position. This component belongs to the Micro-Fit 3.0 43045 series and is commonly used in board-to-board or board-to-cable interconnect applications. With 836 pieces in current inventory, this part maintains active availability. Substitute parts may be required due to supply constraints, design revisions, or specific application requirements that necessitate alternative connector configurations.

Substiute Parts

0430454811

MolexIn Stock: 8890430454811 Datasheet

Current PartRFQ

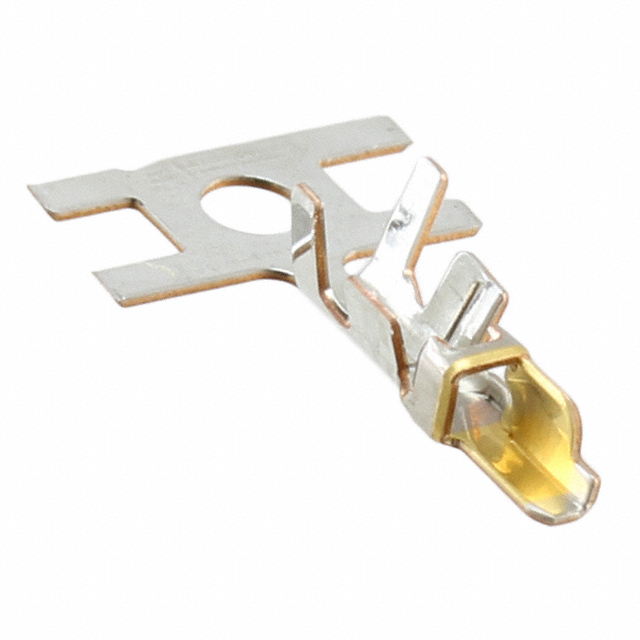

DF59-22PCFA

Hirose Electric Co LtdIn Stock: 406077DF59-22PCFA Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The identified substitute part DF59-22PCFA from Hirose Electric Co Ltd is classified as a Solid State Lighting Connector within the DF59 series. Substitution eligibility is determined by the following parameters:

• Connector Type & Function: Both parts serve interconnect applications with crimp termination capability
• Wire Gauge Compatibility: DF59-22PCFA supports 22 AWG wire gauge
• Electrical Ratings: Operating temperature range of -35°C to 105°C and voltage rating of 230V with 3A current capacity
• Compliance Status: DF59-22PCFA maintains ROHS3 compliance and REACH Unaffected status
• Contact Material: Gold-plated Phosphor Bronze contacts ensure reliable electrical connection
• Moisture Sensitivity: MSL Level 1 (Unlimited) indicates no moisture sensitivity constraints

Parameter Comparison

Engineering Selection Recommendations

Selection between the Molex 0430454811 and Hirose DF59-22PCFA substitute should be based on the following engineering criteria:

• Product Status: The Hirose DF59-22PCFA maintains Active product status with significantly higher inventory availability (406,020 pieces), providing supply chain flexibility
• Compliance Requirements: Both parts align with modern regulatory standards. The DF59-22PCFA is ROHS3 compliant and REACH Unaffected, suitable for applications requiring environmental compliance
• Electrical Performance: The DF59-22PCFA provides defined electrical specifications (230V, 3A, -35°C to 105°C operating range) that establish clear performance boundaries for circuit design
• Contact Reliability: Gold-plated Phosphor Bronze contacts in the DF59-22PCFA ensure consistent electrical performance across mating cycles
• Moisture Handling: MSL Level 1 classification indicates no special moisture control requirements during storage or assembly

Frequently Asked Questions (FAQ)

Q: What determines if the Hirose DF59-22PCFA can substitute for the Molex 0430454811?

A: Substitution is valid when the connector serves the same functional role in the circuit, the electrical ratings (voltage, current, temperature) meet or exceed application requirements, and the termination method (crimp contacts) is compatible with the PCB or cable assembly process.

Q: Are there mechanical compatibility concerns between these two connector families?

A: The Molex 0430454811 is a surface mount header with 3mm pitch, while the Hirose DF59-22PCFA is a crimp plug contact. Mechanical compatibility depends on the mating receptacle design. Direct physical substitution requires verification that the mating interface accepts the DF59 contact geometry.

Q: What is the significance of the 22 AWG wire gauge specification on the DF59-22PCFA?

A: The 22 AWG specification indicates the wire gauge for which the crimp contact is optimized. This ensures proper contact retention and electrical connection when crimped onto 22 AWG wire. Using incorrect wire gauges may result in poor contact or mechanical failure.

Q: Does the higher inventory of the DF59-22PCFA affect its suitability as a substitute?

A: Inventory levels reflect supply availability but do not determine technical suitability. The DF59-22PCFA's higher inventory (406,020 pieces) provides supply chain advantages and may reduce lead times, but substitution must still be validated against electrical and mechanical requirements.

Q: What does ROHS3 compliance mean for the DF59-22PCFA?

A: ROHS3 compliance indicates the component meets Restriction of Hazardous Substances Directive requirements, restricting the use of specific hazardous materials. This is essential for applications subject to EU environmental regulations or customer specifications requiring RoHS certification.

Q: Is the MSL Level 1 rating important for assembly planning?

A: MSL Level 1 (Unlimited) means the component has no moisture sensitivity constraints. It does not require special dry-pack storage, desiccant handling, or bake-out procedures before soldering, simplifying inventory and assembly logistics.
