Molex 0395232002 Terminal Block Plug – Equivalent & Substitute Parts

Part Overview

The Molex 0395232002 is a 2-position terminal block plug with female sockets, 5.00mm pitch, designed for 270° free-hanging in-line applications. This component is rated for 15A at 300V (UL) and accommodates wire gauges from 12–26 AWG with screw-rising cage clamp termination. The part is active in production status and ROHS3 compliant, making it suitable for industrial control, automation, and power distribution applications where reliable screw-terminated connections are required.

Equivalent and substitute parts are identified to support procurement flexibility, inventory management, and supply chain continuity when the primary part becomes unavailable or when design specifications allow for compatible alternatives.

Key Parameters

Parameter	Value
Manufacturer Part Number	0395232002
Manufacturer	Molex
Series	Eurostyle ESE 39523
Number of Positions	2
Pitch	0.197" (5.00mm)
Plug Wire Entry	270°
Termination Style	Screw - Rising Cage Clamp
Mounting Type	Free Hanging (In-Line)
Current Rating (UL)	15 A
Voltage Rating (UL)	300 V
Wire Gauge Range	12–26 AWG
Operating Temperature	–40°C to +105°C
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material	Phosphor Bronze
Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant
Product Status	Active

Substitute Part Grouping Explanation

Substitution eligibility for the Molex 0395232002 is determined by the following critical parameters:

Primary Compatibility Criteria:

2-position configuration
Female socket type
Pitch tolerance: 5.00mm nominal (5.08mm acceptable within mechanical tolerance)
270° wire entry orientation
Free-hanging in-line mounting
Screw termination method
Voltage rating ≥ 300V (UL)
Current rating ≥ 15A (UL)
Wire gauge compatibility: 12–26 AWG minimum
UL94 V-0 flammability rating
Active product status

Identified Substitute Parts:

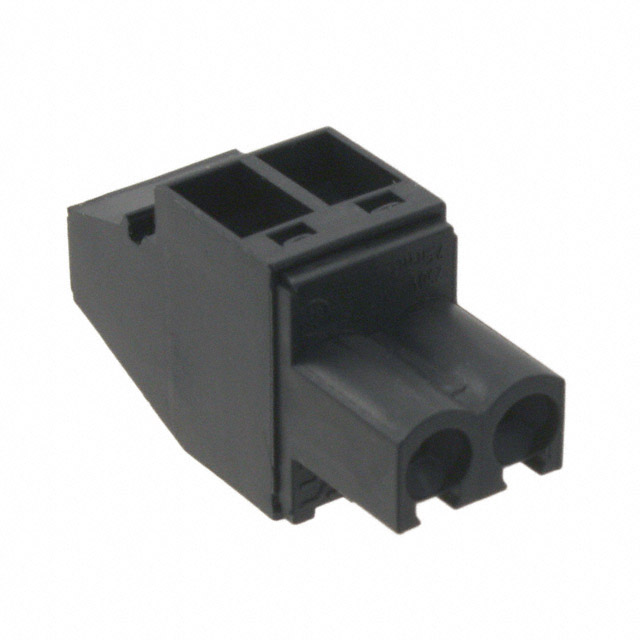

Weidmüller 1948790000 – Omnimate BL series, 5.08mm pitch, screw-clamping yoke termination, 20A/300V (UL), 12–30 AWG, bulk packaging
Weidmüller 1949020000 – Omnimate BL series, 5.08mm pitch, screw-clamping yoke termination, 20A/300V (UL), 12–30 AWG, box packaging
On-Shore Technology EDZ1100/2 – EDZ1100 series, 5.08mm pitch, screw termination, 300V (UL), 10–22 AWG, bulk packaging

All three substitutes meet the core electrical and mechanical requirements for direct replacement in applications where the Molex 0395232002 is specified.

Parameter Comparison

Parameter	Molex 0395232002	Weidmüller 1948790000	Weidmüller 1949020000	On-Shore EDZ1100/2
Number of Positions	2	2	2	2
Pitch	5.00mm	5.08mm	5.08mm	5.08mm
Wire Entry	270°	270°	270°	Not specified
Termination Style	Screw - Rising Cage Clamp	Screw - Clamping Yoke	Screw - Clamping Yoke	Screw
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Current Rating (UL)	15 A	20 A	20 A	Not specified
Voltage Rating (UL)	300 V	300 V	300 V	300 V
Wire Gauge Range (AWG)	12–26	12–30	12–30	10–22
Operating Temperature	–40°C to +105°C	–50°C to +100°C	–50°C to +100°C	–30°C to +105°C
Housing Material	Polyamide (PA66)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polyamide (PA)
Contact Material	Phosphor Bronze	Copper Alloy	Copper Alloy	Copper Tin Alloy
Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
RoHS Status	ROHS3 Compliant	RoHS Compliant	RoHS Compliant	ROHS3 Compliant
Product Status	Active	Active	Active	Active

Engineering Selection Recommendations

Molex 0395232002 (Primary Part)

Recommended for new designs and applications where Eurostyle ESE 39523 series compatibility is required
Active production status ensures long-term availability
ROHS3 compliance supports regulatory requirements in restricted substance applications

Weidmüller 1948790000 (Bulk Packaging)

Direct electrical and mechanical substitute with enhanced current rating (20A vs. 15A)
Omnimate BL series offers broader wire gauge acceptance (12–30 AWG)
Bulk packaging suitable for high-volume procurement
PBT housing provides alternative material composition
Clamping yoke termination offers different mechanical engagement method

Weidmüller 1949020000 (Box Packaging)

Functionally identical to 1948790000 with box packaging for smaller order quantities
Preferred when unit-level packaging and traceability are required
Higher inventory availability (2403 pcs) supports immediate procurement needs

On-Shore Technology EDZ1100/2

Suitable for applications where wire gauge range 10–22 AWG is acceptable
ROHS3 compliance aligns with primary part regulatory status
Copper tin alloy contact material provides alternative contact composition
Wire gauge lower limit (10 AWG) accommodates heavier gauge applications

All three substitutes maintain UL94 V-0 flammability rating, 300V voltage rating, and active product status, ensuring compliance with safety and supply chain continuity requirements.

Frequently Asked Questions (FAQ)

Q: Can Weidmüller 1948790000 or 1949020000 be used as direct replacements for Molex 0395232002?

A: Yes. Both Weidmüller parts meet the core substitution criteria: 2-position configuration, 5.08mm pitch (within mechanical tolerance of 5.00mm), 270° wire entry, free-hanging mounting, screw termination, 300V/20A (UL) rating, and UL94 V-0 flammability. The primary difference is termination method (clamping yoke vs. rising cage clamp) and housing material (PBT vs. PA66).

Q: What is the difference between Weidmüller 1948790000 and 1949020000?

A: Both parts are electrically and mechanically identical. The difference is packaging: 1948790000 is supplied in bulk, while 1949020000 is supplied in box packaging. Select based on order quantity and traceability requirements.

Q: Is On-Shore Technology EDZ1100/2 compatible with the Molex 0395232002?

A: Yes, with wire gauge consideration. EDZ1100/2 accepts 10–22 AWG, which overlaps with the Molex specification of 12–26 AWG. Applications using 23–26 AWG wire require verification that EDZ1100/2 can accommodate the upper wire gauge range, or the Weidmüller alternatives (12–30 AWG) should be selected.

Q: Does pitch difference (5.00mm vs. 5.08mm) affect compatibility?

A: The 0.08mm difference is within standard mechanical tolerance for terminal block pitch specifications and does not prevent physical or electrical compatibility in standard PCB or panel-mount applications. However, applications with tight mechanical constraints should verify mounting hole spacing.

Q: Are all substitute parts RoHS compliant?

A: Yes. Molex 0395232002 is ROHS3 compliant. Weidmüller 1948790000 and 1949020000 are RoHS compliant. On-Shore Technology EDZ1100/2 is ROHS3 compliant. All parts meet RoHS requirements for restricted substance elimination.

Q: What is the difference in termination methods?

A: Molex 0395232002 uses screw-rising cage clamp termination. Weidmüller parts use screw-clamping yoke (tension sleeve) termination. On-Shore EDZ1100/2 uses standard screw termination. All three methods are screw-based and provide equivalent electrical connection reliability; the mechanical engagement approach differs.

Q: Which substitute should be selected for high-volume procurement?

A: Weidmüller 1948790000 (bulk packaging) is optimized for high-volume orders. Weidmüller 1949020000 (box packaging) is suitable for medium-volume orders requiring unit-level packaging. On-Shore EDZ1100/2 is available in bulk and supports high-volume applications where wire gauge 10–22 AWG is acceptable.
