Equivalent & Substitute Parts for Molex 0359780410

Part Overview

The Molex 0359780410 is a rectangular connector header, through-hole mounted, with 4 positions at 0.156" (3.96mm) pitch. This connector is classified as obsolete, making equivalent substitute parts necessary for ongoing production and maintenance applications. The part features shrouded design with friction lock fastening and tin-plated brass contacts suitable for board-to-cable/wire connections.

Substiute Parts

0359780410

MolexIn Stock: 9370359780410 Datasheet

Current PartRFQ

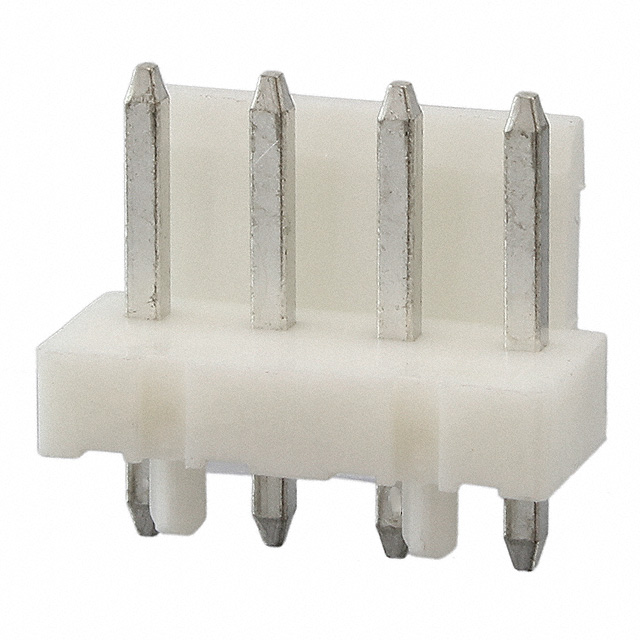

1744057-4

TE Connectivity AMP ConnectorsIn Stock: 149481744057-4 Datasheet

MFR RecommendedRFQ

B4P-VH-B

JST Sales America Inc.In Stock: 30083B4P-VH-B Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution for the Molex 0359780410 is based on the following critical parameters that must remain constant:

• Connector type: Header
• Contact type: Male Pin
• Pitch - mating: 0.156" (3.96mm)
• Number of positions: 4
• Number of rows: 1
• Mounting type: Through Hole
• Termination: Solder
• Shrouding: Shrouded - 1 Wall
• Contact material: Brass
• Contact finish: Tin
• Insulation material: Polyamide (PA66), Nylon 6/6
• Flammability rating: UL94 V-0

The two substitute parts identified—TE Connectivity 1744057-4 and JST B4P-VH-B—meet all critical substitution criteria. Both are active products with equivalent mechanical and electrical interfaces, making them suitable replacements for the obsolete Molex part in applications requiring 4-position, 3.96mm pitch through-hole header connectors.

Parameter Comparison

Engineering Selection Recommendations

Both substitute parts are active products with current manufacturing support, addressing the obsolescence of the Molex 0359780410. Selection between TE Connectivity 1744057-4 and JST B4P-VH-B should be based on the following factors:

TE Connectivity 1744057-4 is RoHS Compliant and carries a current rating of 7.5A at 250VAC with an operating temperature range of -25°C to 105°C. This part includes board guide features and employs a locking ramp fastening mechanism.

JST B4P-VH-B is ROHS3 Compliant with a current rating of 10A at 250V and an operating temperature range of -25°C to 85°C. The insulation material is polybutylene terephthalate (PBT) glass-filled, and fastening is accomplished via locking ramp.

Both parts meet UL94 V-0 flammability requirements and maintain compatibility with the original Molex connector interface specifications. The choice between these substitutes depends on application-specific requirements for current capacity, temperature range, and insulation material properties.

Frequently Asked Questions (FAQ)

Q: Can TE Connectivity 1744057-4 and JST B4P-VH-B be used interchangeably with the Molex 0359780410?

A: Yes. Both substitute parts maintain identical pitch (0.156" / 3.96mm), position count (4), contact type (male pin), mounting method (through-hole), and termination (solder). All three connectors feature shrouded 1-wall design with tin-plated brass contacts and UL94 V-0 flammability rating.

Q: What are the differences in insulation material between the substitutes?

A: The Molex 0359780410 and TE Connectivity 1744057-4 use polyamide (PA66) nylon 6/6 insulation. The JST B4P-VH-B uses polybutylene terephthalate (PBT) glass-filled insulation, which offers different mechanical and thermal properties.

Q: Are there differences in operating temperature ranges?

A: Yes. The TE Connectivity 1744057-4 operates from -25°C to 105°C, while the JST B4P-VH-B operates from -25°C to 85°C. The original Molex part does not specify an operating temperature range.

Q: What is the difference in current rating between the substitutes?

A: The TE Connectivity 1744057-4 is rated for 7.5A at 250VAC. The JST B4P-VH-B is rated for 10A at 250V. The original Molex part does not specify a current rating.

Q: Do the substitute parts have different fastening mechanisms?

A: The Molex 0359780410 uses friction lock fastening. Both substitute parts employ locking ramp fastening. The TE Connectivity 1744057-4 includes board guide features.

Q: Are both substitutes RoHS compliant?

A: The TE Connectivity 1744057-4 is RoHS Compliant. The JST B4P-VH-B is ROHS3 Compliant. Both meet regulatory requirements for lead-free manufacturing.
