Molex 0355071502 Rectangular Connector Housing - Equivalent & Substitute Parts

Part Overview

The Molex 0355071502 is a 15-position receptacle housing for rectangular connectors with a 2.00mm pitch, designed for free-hanging in-line applications. This part is classified as obsolete, making equivalent and substitute parts necessary for ongoing system maintenance and new design implementations. The housing accommodates female socket contacts with crimp termination and latch lock fastening, suitable for applications requiring reliable interconnection in compact form factors.

Substiute Parts

0355071502

MolexIn Stock: 10040355071502 Datasheet

Current PartRFQ

0355071500

MolexIn Stock: 42780355071500 Datasheet

Parametric EquivalentRFQ

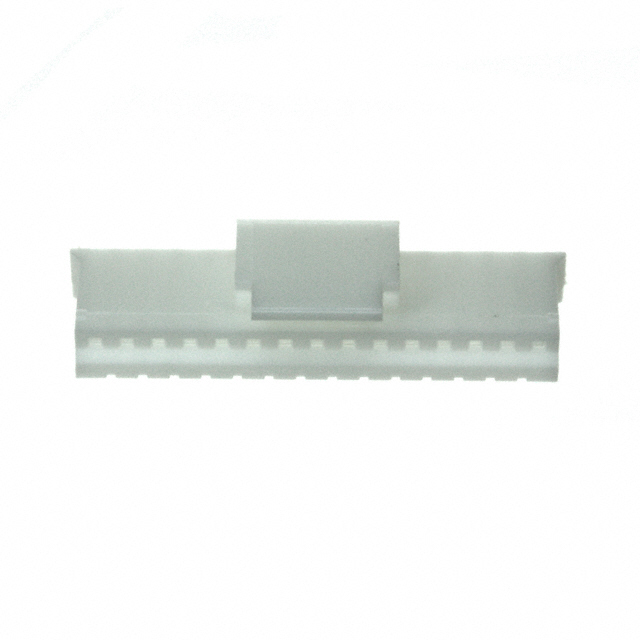

1-1735447-5

TE Connectivity AMP ConnectorsIn Stock: 12411-1735447-5 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution for the Molex 0355071502 is determined by strict equivalence across the following critical parameters:

• Connector type (Receptacle)
• Contact type (Female Socket)
• Number of positions (15)
• Pitch specification (2.00mm)
• Number of rows (1)
• Mounting configuration (Free Hanging In-Line)
• Contact termination method (Crimp)
• Fastening mechanism (Latch Lock)
• Compliance certifications (ROHS3)
• Moisture sensitivity rating (MSL 1)

Two substitute parts meet these criteria: the Molex 0355071500 (parametric equivalent) and the TE Connectivity 1-1735447-5 (manufacturer-recommended equivalent). Both maintain identical functional and mechanical specifications while differing in color, insulation material, and operating temperature ranges.

Parameter Comparison

Engineering Selection Recommendations

Both substitute parts maintain full functional and mechanical compatibility with the Molex 0355071502. Selection between alternatives should be based on the following factors:

Molex 0355071500 is the parametric equivalent within the same manufacturer series (Sherlock 35507). This part is active in production with higher inventory availability (4204 units) and extended operating temperature range (-40°C to 105°C). The polyester insulation material and natural color provide standard performance characteristics. This option is preferred for direct replacement in existing Molex-based designs.

TE Connectivity 1-1735447-5 is the manufacturer-recommended alternative from a different connector family (High Performance Interconnect series). This part is active with moderate inventory (1200 units) and operates within a narrower temperature range (-25°C to 85°C). The thermoplastic insulation material represents a different material specification. This option is suitable for applications where cross-manufacturer compatibility is acceptable and TE Connectivity supply chain integration is preferred.

Both parts carry ROHS3 compliance and MSL 1 ratings, ensuring regulatory and environmental compatibility with the original specification.

Frequently Asked Questions (FAQ)

Q: Can the Molex 0355071500 be used as a direct replacement for the 0355071502?

A: Yes. Both parts share identical connector type, contact configuration, pitch, position count, mounting method, termination type, and fastening mechanism. The primary difference is housing color (natural versus red) and operating temperature specification. Functional and mechanical compatibility is complete.

Q: What are the key differences between the Molex and TE Connectivity substitutes?

A: The Molex 0355071500 and TE Connectivity 1-1735447-5 differ in manufacturer, connector series, insulation material (polyester versus thermoplastic), and operating temperature range. All critical electrical and mechanical parameters remain identical. Selection depends on supply chain preference and thermal environment requirements.

Q: Are there any compatibility concerns when switching from the red housing (0355071502) to natural housing alternatives?

A: Housing color does not affect electrical or mechanical function. Color change is purely cosmetic and does not impact connector performance, mating characteristics, or contact integrity.

Q: Do these substitute parts require different contact specifications?

A: No. All three housings accommodate the same contact specifications. The note "Contacts Not Included" applies uniformly across all parts. Contact selection and sourcing remain independent of housing choice.

Q: Which substitute part offers the best long-term availability?

A: The Molex 0355071500 is the preferred choice for long-term availability, as it remains in the active product status within the same manufacturer series and maintains higher inventory levels.
