Molex 0355070502 Rectangular Connector Housing - Equivalent & Substitute Parts

Part Overview

The Molex 0355070502 is a 5-position receptacle housing for rectangular connectors with a 2.00mm pitch, designed for free-hanging in-line applications using crimp termination and latch lock fastening. This part is classified as obsolete, making identification of active equivalent and substitute components essential for ongoing production and maintenance applications. Substitute parts must maintain electrical and mechanical compatibility across the same connector category while meeting current product availability and compliance requirements.

Substiute Parts

0355070502

MolexIn Stock: 11460355070502 Datasheet

Current PartRFQ

0512160500

MolexIn Stock: 200160512160500 Datasheet

Parametric EquivalentRFQ

0513820500

MolexIn Stock: 51710513820500 Datasheet

Parametric EquivalentRFQ

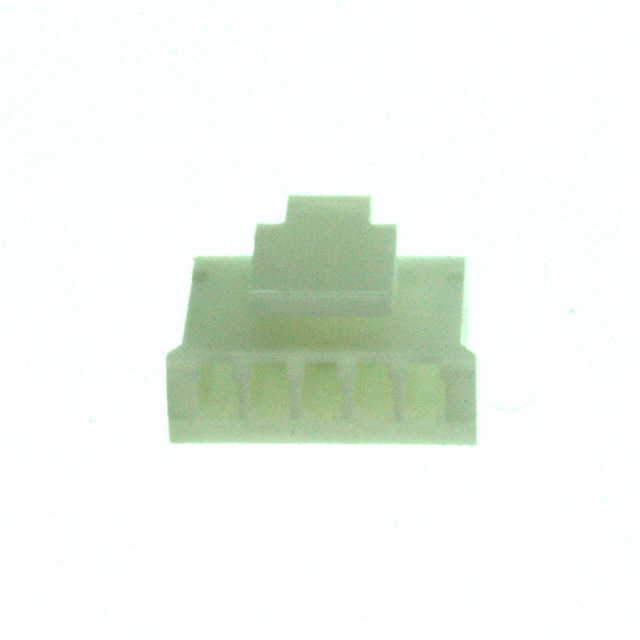

1735447-5

TE Connectivity AMP ConnectorsIn Stock: 226601735447-5 Datasheet

MFR RecommendedRFQ

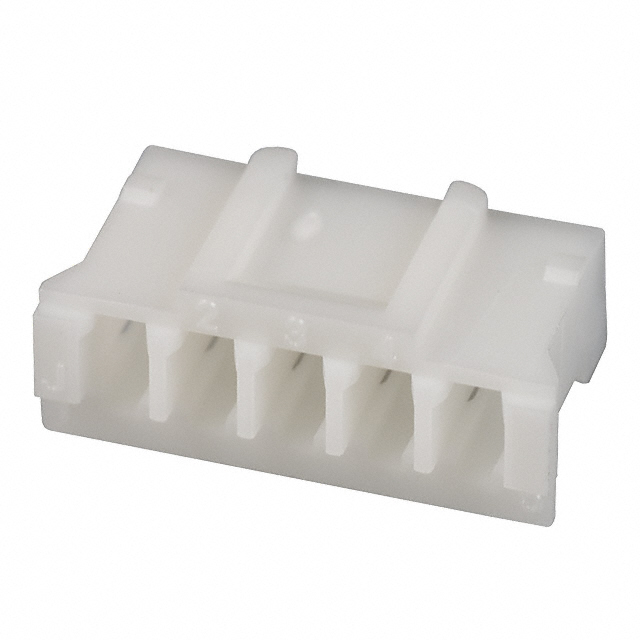

PHR-5

JST Sales America Inc.In Stock: 338095PHR-5 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility is determined by strict equivalence across the following parameters: connector type (receptacle), contact type (female socket), number of positions (5), pitch (2.00mm), number of rows (1), mounting type (free hanging in-line), and contact termination method (crimp). All identified substitutes maintain these core electrical and mechanical specifications.

The substitute parts are grouped into two categories:

Parametric Equivalents (Molex Series): Parts 0512160500 and 0513820500 are Molex rectangular connector housings that maintain identical core specifications to the main part. These differ only in color (natural and white respectively) and insulation material composition, which do not affect functional compatibility in standard applications.

Manufacturer-Recommended Equivalents (Cross-Manufacturer): Parts 1735447-5 (TE Connectivity) and PHR-5 (JST Sales America) are cross-manufacturer substitutes that maintain the same electrical and mechanical parameters. These parts are from different manufacturers but are designed for equivalent performance in 5-position, 2.00mm pitch receptacle applications.

Parameter Comparison

Engineering Selection Recommendations

For Direct Molex Series Replacement: Parts 0512160500 and 0513820500 are the primary substitutes, as they maintain identical specifications within the Molex product line and are currently in active production status. Both parts are ROHS3 compliant and carry unlimited moisture sensitivity ratings. Selection between these two depends on color requirements for your application; both are functionally equivalent.

For Cross-Manufacturer Substitution: Part 1735447-5 (TE Connectivity) and PHR-5 (JST Sales America) are manufacturer-recommended equivalents suitable for applications where cross-manufacturer compatibility is acceptable. Both maintain the core electrical and mechanical specifications. Part PHR-5 uses detent lock fastening rather than latch lock, which represents a functional difference in connector engagement mechanism. Part 1735447-5 maintains latch lock fastening consistent with the original design.

All substitute parts carry ROHS3 compliance and unlimited moisture sensitivity ratings, meeting the same environmental and regulatory standards as the original part.

Frequently Asked Questions (FAQ)

Q: Can I use part 0512160500 or 0513820500 as a direct replacement for 0355070502?

A: Yes. Both parts are Molex rectangular connector housings with identical electrical and mechanical specifications: 5 positions, 2.00mm pitch, female socket contacts, crimp termination, and latch lock fastening. The differences are color (natural or white versus red) and insulation material composition, which do not affect functional compatibility in standard applications.

Q: What is the difference between the Molex substitutes and the cross-manufacturer options?

A: The Molex parts (0512160500 and 0513820500) are from the same manufacturer as the original and maintain identical specifications. The cross-manufacturer options (1735447-5 from TE Connectivity and PHR-5 from JST) are from different manufacturers but are designed for equivalent performance. Part PHR-5 uses detent lock fastening instead of latch lock, which affects the connector engagement mechanism.

Q: Are all substitute parts ROHS3 compliant?

A: Yes. All identified substitute parts carry ROHS3 compliance certification, matching the compliance status of the original 0355070502.

Q: What does "Contacts Not Included" mean for these parts?

A: These are connector housings only. Crimp contacts must be sourced separately and are not included with the housing. Ensure that selected contacts are compatible with the 2.00mm pitch and female socket configuration.

Q: Why is the original part 0355070502 listed as obsolete?

A: The Sherlock 35507 series has been discontinued by Molex. Active equivalent products from current Molex series (51216 and MicroClasp 51382) are available as replacements, along with cross-manufacturer options from TE Connectivity and JST.

Q: Can I mix and match housings from different manufacturers in the same assembly?

A: Mixing manufacturers is possible if all parts maintain the same pitch (2.00mm), position count (5), and contact type (female socket). However, for consistency and to minimize supply chain complexity, it is preferable to standardize on a single manufacturer within a product design.
