Molex 0349006130 Rectangular Connector Receptacle Housing - Equivalent & Substitute Parts

Part Overview

The Molex 0349006130 is a 6-position rectangular connector receptacle housing with 0.157" (4.00mm) pitch, designed for crimp termination in free-hanging in-line applications. This component is part of the MXP120 34900 series and is classified as Active product status. Substitute parts become necessary when addressing specific application requirements such as color differentiation, inventory availability, or design revision compatibility while maintaining identical electrical and mechanical specifications.

Key Parameters

Parameter	Value
Manufacturer Part Number	0349006130
Manufacturer	Molex
Category	Rectangular Connectors
Series	MXP120 34900
Connector Type	Receptacle
Contact Type	Female Blade Socket
Number of Positions	6
Pitch	0.157" (4.00mm)
Number of Rows	1
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Holder
Color	Gray
Features	Sealed
Insulation Material	Polyamide (PA), Nylon, Glass Filled; Syndiotatic Polystyrene (SPS)
Operating Temperature Range	-40°C ~ 125°C
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Product Status	Active

Substitute Part Grouping Explanation

Substitution of the Molex 0349006130 rectangular connector receptacle housing is determined by strict equivalence across the following critical parameters:

Electrical Compatibility: Connector type (Receptacle), contact type (Female Blade Socket), number of positions (6), and pitch (0.157" / 4.00mm) must remain identical
Mechanical Compatibility: Mounting type (Free Hanging In-Line), contact termination method (Crimp), and fastening type (Latch Holder) must be unchanged
Environmental Specifications: Operating temperature range (-40°C ~ 125°C), sealed feature, and insulation material composition must match
Regulatory Compliance: RoHS3 compliance and MSL rating (1) must be maintained
Variable Parameters: Color (Gray or Black) and specific design revision (indicated by part number suffix) may differ while maintaining full functional equivalence

All substitute parts listed below meet these criteria and are classified as parametric equivalents within the MXP120 34900 series.

Parameter Comparison

Parameter	0349006130	0349006111	0349006119	0349006128	0349006140
Manufacturer	Molex	Molex	Molex	Molex	Molex
Series	MXP120 34900	MXP120 34900	MXP120 34900	MXP120 34900	MXP120 34900
Connector Type	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle
Contact Type	Female Blade Socket	Female Blade Socket	Female Blade Socket	Female Blade Socket	Female Blade Socket
Number of Positions	6	6	6	6	6
Pitch	0.157" (4.00mm)	0.157" (4.00mm)	0.157" (4.00mm)	0.157" (4.00mm)	0.157" (4.00mm)
Number of Rows	1	1	1	1	1
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Contact Termination	Crimp	Crimp	Crimp	Crimp	Crimp
Fastening Type	Latch Holder	Latch Holder	Latch Holder	Latch Holder	Latch Holder
Color	Gray	Gray	Black	Gray	Black
Features	Sealed	Sealed	Sealed	Sealed	Sealed
Insulation Material	Polyamide (PA), Nylon, Glass Filled; Syndiotatic Polystyrene (SPS)	Polyamide (PA), Nylon, Glass Filled; Syndiotatic Polystyrene (SPS)	Polyamide (PA), Nylon, Glass Filled; Syndiotatic Polystyrene (SPS)	Polyamide (PA), Nylon, Glass Filled; Syndiotatic Polystyrene (SPS)	Polyamide (PA), Nylon, Glass Filled; Syndiotatic Polystyrene (SPS)
Operating Temperature Range	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
Product Status	Active	Active	Active	Active	Active

Engineering Selection Recommendations

All listed substitute parts maintain Active product status and ROHS3 compliance, ensuring continued availability and regulatory adherence. Selection between the Molex 0349006130 and its equivalents should be based on the following criteria:

Color Selection: The 0349006130 and 0349006128 are available in Gray, while 0349006119 and 0349006140 are available in Black. Color selection is determined by application requirements and visual identification needs within the assembly.

Inventory Availability: Part 0349006128 maintains the highest inventory level (15,035 pcs), followed by 0349006111 (2,157 pcs), 0349006140 (2,826 pcs), 0349006119 (3,035 pcs), and 0349006130 (1,047 pcs). Inventory considerations may influence part selection for high-volume production schedules.

Design Revision Compatibility: All parts belong to the MXP120 34900 series and share identical base product number 034900. Design revisions indicated by part number suffixes do not affect electrical or mechanical performance within this series.

All substitute parts are suitable for direct replacement in applications currently specified for the Molex 0349006130 rectangular connector receptacle housing.

Frequently Asked Questions (FAQ)

Q: Can the Molex 0349006130 be directly replaced with 0349006119 or 0349006140?

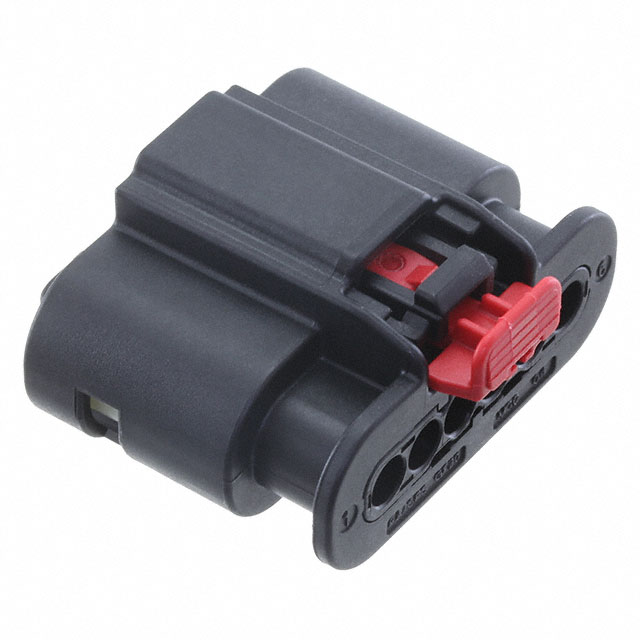

A: Yes. Parts 0349006119 and 0349006140 are parametric equivalents with identical electrical and mechanical specifications. The only difference is color (Black instead of Gray). Direct substitution is permissible if color differentiation is not a design requirement.

Q: Are all substitute parts RoHS3 compliant?

A: Yes. All listed substitute parts, including 0349006130, 0349006111, 0349006119, 0349006128, and 0349006140, are ROHS3 compliant and maintain MSL rating 1 (Unlimited).

Q: What is the significance of the different part number suffixes (111, 119, 128, 130, 140)?

A: Part number suffixes indicate design revisions within the MXP120 34900 series. These revisions do not alter the electrical or mechanical performance of the 6-position, 4.00mm pitch receptacle housing. Suffixes may reflect manufacturing process updates or color variations.

Q: Can I use 0349006128 instead of 0349006130 due to higher inventory availability?

A: Yes. Part 0349006128 is a parametric equivalent with identical specifications and is available in the same Gray color as the 0349006130. Higher inventory availability makes it suitable for applications requiring immediate component sourcing.

Q: Are contacts included with these receptacle housings?

A: No. All listed parts are receptacle housings only. Female blade socket contacts must be sourced separately and crimped into the housing according to Molex specifications.

Q: What is the operating temperature range for all substitute parts?

A: All substitute parts operate within the range of -40°C to 125°C, ensuring compatibility across standard industrial and commercial temperature environments.
