Molex 0348404010 Rectangular Connector Plug Housing - Equivalent & Substitute Parts

Part Overview

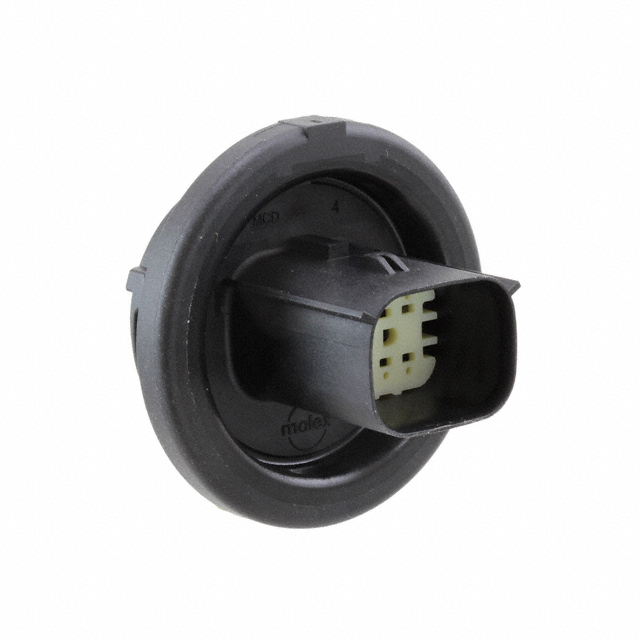

The Molex 0348404010 is an 8-position rectangular connector plug housing designed for panel mount and bulkhead applications. This component features a 4.60mm pitch, male blade contact configuration, and twist latch fastening mechanism. The part is classified as obsolete, making identification of active equivalent components essential for ongoing production and maintenance applications. Substitute parts must maintain identical electrical and mechanical specifications to ensure direct interchangeability without circuit redesign or mechanical modification.

Substiute Parts

0348404010

MolexIn Stock: 11650348404010 Datasheet

Current PartRFQ

0348404410

MolexIn Stock: 8820348404410 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Molex 0348404010 is determined by strict equivalence across the following critical parameters:

• Connector Type & Contact Configuration: Plug housing with male blade contacts
• Position Count & Pitch: 8 positions at 0.138" (4.60mm) pitch
• Physical Layout: 2 rows with 0.236" (6.00mm) row spacing
• Mounting & Fastening: Panel mount/bulkhead configuration with twist latch mechanism
• Material & Environmental Rating: SPS glass-filled insulation with IP67K protection
• Termination Method: Crimp contact termination

The substitute part Molex 0348404010 meets all these criteria while maintaining active product status and current manufacturing support.

Parameter Comparison

Engineering Selection Recommendations

The Molex 0348404410 is the direct active equivalent for the obsolete 0348404010. Both components share identical electrical and mechanical specifications within the MX150 34840 series. The 0348404410 maintains ROHS3 compliance and provides documented operating temperature range (-40°C ~ 125°C), supporting long-term design continuity and supply chain reliability. Selection of the 0348404410 eliminates obsolescence risk while preserving full functional and physical compatibility with existing connector systems.

Frequently Asked Questions (FAQ)

Q: Can the 0348404410 be used as a direct replacement for the 0348404010?

A: Yes. Both parts are identical in connector type, position count, pitch, row configuration, mounting method, fastening mechanism, and insulation material. The 0348404410 is the active production equivalent.

Q: What is the difference between these two part numbers?

A: The primary difference is product status. The 0348404010 is obsolete, while the 0348404410 is active. The 0348404410 also includes a documented operating temperature specification (-40°C ~ 125°C). All functional and mechanical parameters are equivalent.

Q: Are there packaging differences between these parts?

A: The 0348404010 packaging is not specified in available documentation. The 0348404410 is supplied in bulk packaging. Confirm packaging requirements with your procurement department.

Q: Do these connectors include contacts?

A: No. Both the 0348404010 and 0348404410 are housing-only components. Male blade contacts must be sourced separately and crimped into the housing.

Q: What certifications apply to these connectors?

A: Both parts are ROHS3 compliant. The 0348404410 is REACH unaffected. Both carry EAR99 export classification and HTSUS code 8536.69.4030.

Q: What is the moisture sensitivity level for these parts?

A: The 0348404010 has MSL 1 (unlimited). The 0348404410 has MSL not applicable, indicating no moisture sensitivity restrictions.
