Molex 0348030211 Equivalent & Substitute Parts

Part Overview

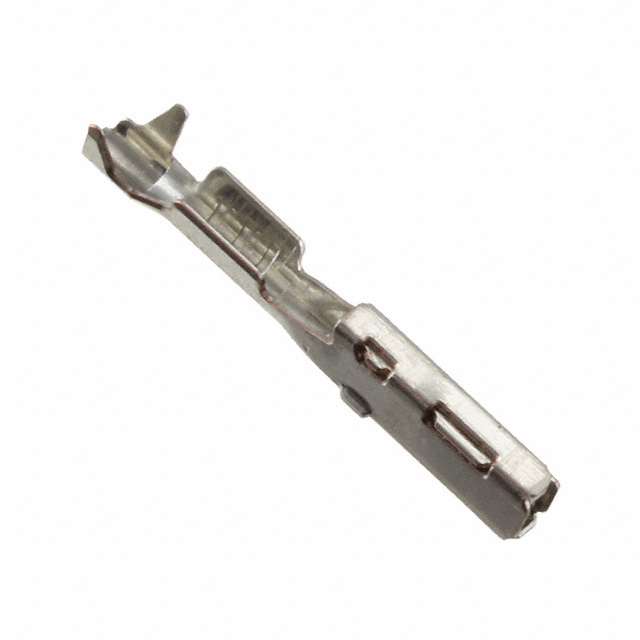

The Molex 0348030211 is a socket contact connector designed for 22 AWG wire applications with crimp termination and tin plating. This component is classified as obsolete, making it necessary to identify active equivalent parts for ongoing procurement and system maintenance. The part belongs to the CTX64 and 34803 series of rectangular connectors and maintains ROHS3 compliance with unlimited moisture sensitivity rating.

Substiute Parts

0348030211

MolexIn Stock: 9020348030211 Datasheet

Current PartRFQ

0348033211

MolexIn Stock: 531990348033211 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The substitute part 0348033211 qualifies as a direct equivalent based on the following critical parameters that determine substitution validity:

• Pin or Socket Configuration: Both parts are socket contacts
• Contact Termination Method: Both use crimp termination
• Wire Gauge Rating: Both accommodate 22 AWG wire
• Contact Finish Material: Both feature tin plating
• Series Classification: Both belong to CTX64 and 34803 series
• Base Product Number: Both share the same base product number 034803
• Regulatory Compliance: Both maintain ROHS3 compliance and unlimited MSL rating

The primary distinction is product status: the main part is obsolete while the substitute is active, with significantly higher inventory availability (53,120 pieces versus 853 pieces).

Parameter Comparison

Engineering Selection Recommendations

The Molex 0348033211 is the appropriate selection for applications currently specified with the 0348030211. Both parts maintain identical electrical and mechanical specifications across all critical parameters: socket configuration, 22 AWG wire gauge capacity, crimp termination, and tin contact finish.

The 0348033211 offers the advantage of active product status with substantially higher inventory availability, supporting long-term supply chain continuity. Both parts satisfy ROHS3 compliance requirements and carry unlimited moisture sensitivity rating, ensuring regulatory and environmental compatibility.

Frequently Asked Questions (FAQ)

Q: Can the 0348033211 directly replace the 0348030211 in existing assemblies?

A: Yes. Both parts share identical electrical and mechanical specifications including socket type, 22 AWG wire gauge rating, crimp termination, and tin plating. They belong to the same CTX64 and 34803 series with matching base product number 034803.

Q: What is the primary reason for substitution?

A: The 0348030211 is classified as obsolete. The 0348033211 is an active equivalent part with superior inventory availability, ensuring reliable procurement for current and future production requirements.

Q: Are there compliance differences between these parts?

A: No. Both parts maintain ROHS3 compliance, carry unlimited moisture sensitivity level (MSL 1), and share identical regulatory classifications including ECCN EAR99 and HTSUS 8536.90.4000.

Q: Does packaging differ between these parts?

A: The 0348033211 is specified with Cut Tape (CT) packaging. The original part packaging specification is not provided in the technical data.

Q: Are these parts interchangeable at the connector assembly level?

A: Yes. Both parts are socket contacts within the same series with identical termination and wire gauge specifications, making them functionally interchangeable in CTX64 and 34803 series connector assemblies.
