Molex 0334861601 Rectangular Connector Plug Housing - Equivalent & Substitute Parts

Part Overview

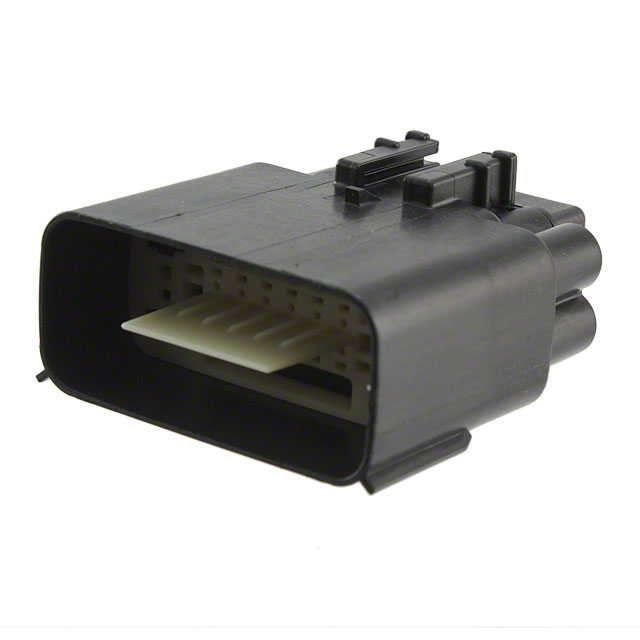

The Molex 0334861601 is a 16-position rectangular connector plug housing with 4.60mm pitch, designed for crimp contact termination in free-hanging inline applications. This component is classified as obsolete, making identification of active equivalent parts essential for ongoing production and maintenance requirements. The sealed design with locking ramp fastening provides reliable connection integrity in industrial and commercial applications.

Substiute Parts

0334861601

MolexIn Stock: 12460334861601 Datasheet

Current PartRFQ

0334828601

MolexIn Stock: 17670334828601 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the Molex 0334861601 is determined by strict equivalence across the following critical parameters:

• Connector Type & Contact Configuration: Plug housing with male blade contacts
• Electrical Interface: 16-position layout with 0.138" (4.60mm) pitch spacing
• Physical Configuration: 2-row arrangement with free-hanging inline mounting
• Termination Method: Crimp contact termination
• Mechanical Interface: Locking ramp fastening mechanism
• Environmental Sealing: Sealed design classification
• Compliance: ROHS3 compliance requirement

The substitute part 0334828601 maintains full parametric equivalence across all these criteria while offering active product status and improved availability.

Parameter Comparison

Engineering Selection Recommendations

The Molex 0334828601 is the direct parametric equivalent for the obsolete 0334861601. Both components maintain identical electrical and mechanical specifications across all critical interface parameters. The substitute part carries active product status with ROHS3 compliance certification, ensuring long-term availability and regulatory alignment. Selection of the 0334828601 eliminates obsolescence risk while maintaining full functional and physical compatibility with existing connector systems designed for the 0334861601.

Frequently Asked Questions (FAQ)

Q: Are the 0334861601 and 0334828601 mechanically interchangeable?

A: Yes. Both components share identical connector type, contact configuration, pitch spacing, row arrangement, mounting method, and fastening mechanism. Physical dimensions and mating interfaces are equivalent.

Q: What is the primary difference between these parts?

A: The 0334861601 is classified as obsolete, while the 0334828601 maintains active product status. Both meet ROHS3 compliance requirements and carry unlimited moisture sensitivity rating.

Q: Can I use the 0334828601 in applications originally designed for the 0334861601?

A: Yes. The substitute part maintains full parametric equivalence across connector type, contact type, position count, pitch, row configuration, mounting type, termination method, fastening type, and sealing classification.

Q: Are there packaging differences between these parts?

A: The 0334861601 is supplied in standard packaging, while the 0334828601 is available in bulk packaging. This does not affect component functionality or compatibility.

Q: Do both parts require the same contact specifications?

A: Yes. Both housings are designed for crimp termination with male blade contacts and do not include contacts in the base package.
