Molex 0334823634 Rectangular Connector Plug Housing - Equivalent & Substitute Parts

Part Overview

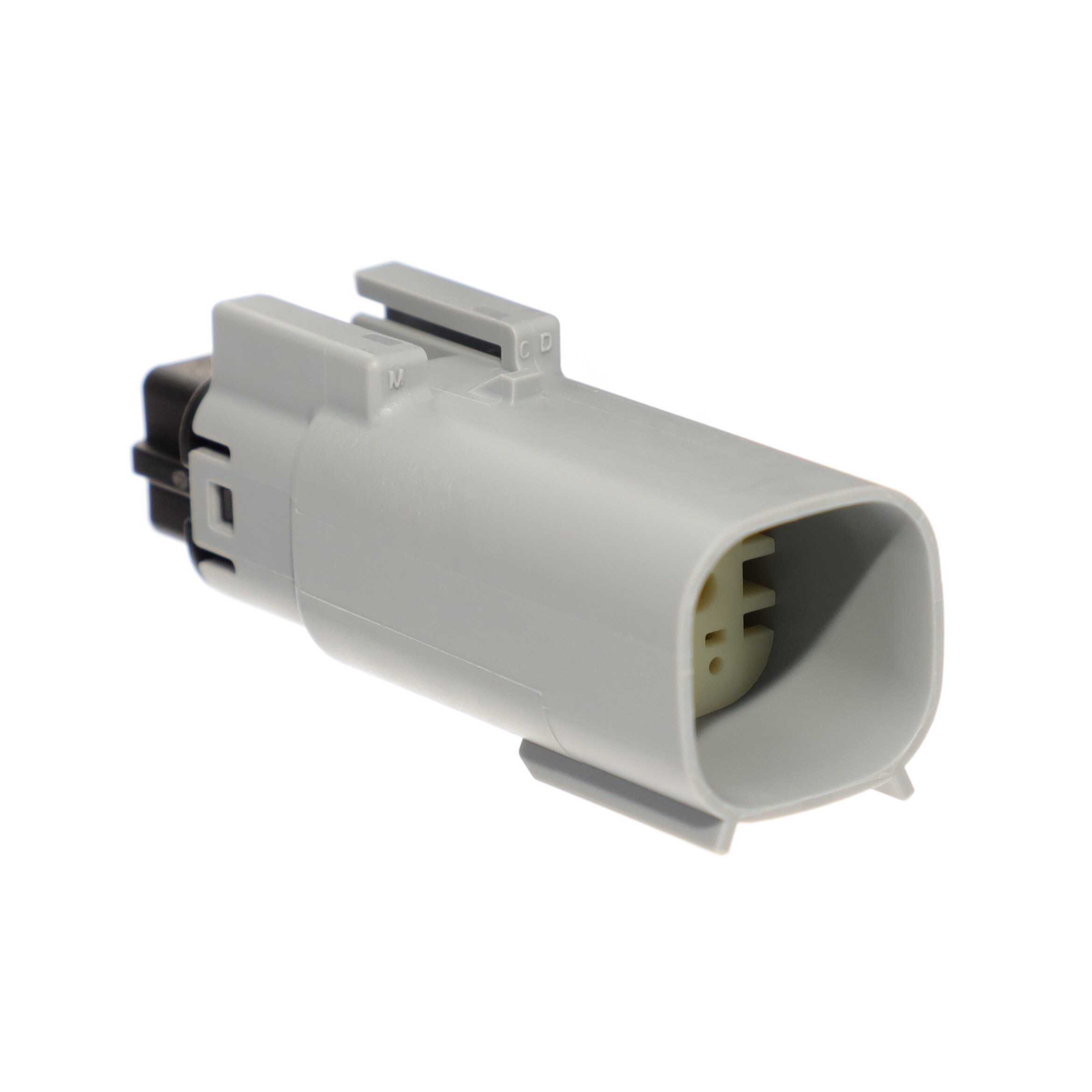

The Molex 0334823634 is a 6-position rectangular connector plug housing with 4.60mm pitch, designed for crimp termination in free-hanging inline applications. This connector housing is part of the MX150 33482 series and features sealed construction with gray polyamide nylon glass-filled insulation. The part is currently active in production with ROHS3 compliance and unlimited moisture sensitivity rating (MSL 1). Substitute parts are identified when identical electrical and mechanical parameters are maintained across the connector housing specifications.

Key Parameters

Parameter	Specification
Connector Type	Plug
Contact Type	Male Blade
Number of Positions	6
Pitch	0.138" (4.60mm)
Number of Rows	2
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Locking Ramp
Color	Gray
Features	Sealed
Insulation Material	Polyamide (PA), Nylon, Glass Filled; Syndiotatic Polystyrene (SPS)
RoHS Status	ROHS3 Compliant
MSL Rating	1 (Unlimited)

Substitute Part Grouping Explanation

Substitute parts for the Molex 0334823634 are identified based on strict equivalence of the following critical parameters:

Connector type (Plug)
Contact type (Male Blade)
Number of positions (6)
Pitch specification (0.138" / 4.60mm)
Number of rows (2)
Mounting configuration (Free Hanging In-Line)
Contact termination method (Crimp)
Fastening mechanism (Locking Ramp)
Housing color (Gray)
Sealed feature
Insulation material composition
Series designation (MX150 33482)
RoHS compliance level (ROHS3)
MSL rating (1)

The substitute parts 0334823601 and 0334823602 maintain identical values across all these parameters, establishing them as direct functional equivalents within the MX150 33482 connector series.

Parameter Comparison

Parameter	0334823634 (Main)	0334823601 (Substitute)	0334823602 (Substitute)
Manufacturer	Molex	Molex	Molex
Category	Rectangular Connectors	Rectangular Connectors	Rectangular Connectors
Description	CONN PLUG HSG 6POS 4.60MM	CONN PLUG HSG 6POS 4.60MM	CONN PLUG HSG 6POS 4.60MM
Series	MX150 33482	MX150 33482	MX150 33482
Connector Type	Plug	Plug	Plug
Contact Type	Male Blade	Male Blade	Male Blade
Number of Positions	6	6	6
Pitch	0.138" (4.60mm)	0.138" (4.60mm)	0.138" (4.60mm)
Number of Rows	2	2	2
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Contact Termination	Crimp	Crimp	Crimp
Fastening Type	Locking Ramp	Locking Ramp	Locking Ramp
Color	Gray	Gray	Gray
Features	Sealed	Sealed	Sealed
Insulation Material	Polyamide (PA), Nylon, Glass Filled; Syndiotatic Polystyrene (SPS)	Polyamide (PA), Nylon, Glass Filled; Syndiotatic Polystyrene (SPS)	Polyamide (PA), Nylon, Glass Filled; Syndiotatic Polystyrene (SPS)
Product Status	Active	Active	Active
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
MSL Rating	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
ECCN	EAR99	EAR99	EAR99
HTSUS Code	8536.69.8000	8536.69.8000	8536.69.8000

Engineering Selection Recommendations

All three part numbers—0334823634, 0334823601, and 0334823602—are active production parts manufactured by Molex with identical ROHS3 compliance and MSL 1 ratings. Selection between these equivalents may be based on inventory availability and lead time considerations. The substitute parts 0334823601 and 0334823602 provide additional operating temperature specification documentation (-40°C ~ 150°C) and REACH unaffected status, which may be relevant for applications requiring explicit thermal range confirmation or regulatory documentation.

Frequently Asked Questions (FAQ)

Q: Are parts 0334823601 and 0334823602 direct replacements for 0334823634?

A: Yes. All three parts share identical electrical and mechanical specifications within the MX150 33482 series, including connector type, position count, pitch, mounting configuration, and termination method. They are functionally equivalent for applications requiring 6-position rectangular connector plug housings with 4.60mm pitch and crimp termination.

Q: What determines substitutability for this connector housing?

A: Substitutability is determined by matching the following parameters: connector type (plug), contact type (male blade), position count (6), pitch (4.60mm), row configuration (2 rows), mounting style (free hanging inline), termination method (crimp), fastening mechanism (locking ramp), housing color (gray), sealed feature, insulation material composition, and series designation (MX150 33482).

Q: Do the substitute parts have different operating temperature ranges?

A: The main part 0334823634 does not specify an operating temperature range in the provided data. The substitute parts 0334823601 and 0334823602 both specify -40°C ~ 150°C operating temperature. This additional specification does not represent a functional difference but rather more complete documentation of the same component.

Q: Are there packaging differences between these parts?

A: All three parts are supplied in bulk packaging. Inventory levels differ: 0334823634 has 1,984 pieces in stock, 0334823601 has 6,343 pieces, and 0334823602 has 7,808 pieces.

Q: What compliance certifications apply to all three parts?

A: All parts are ROHS3 compliant with MSL 1 (unlimited moisture sensitivity level) rating. The substitute parts additionally document REACH unaffected status. All parts carry EAR99 export classification and 8536.69.8000 HTSUS code.
