Molex 0334821602 Rectangular Connector Plug Housing - Equivalent & Substitute Parts

Part Overview

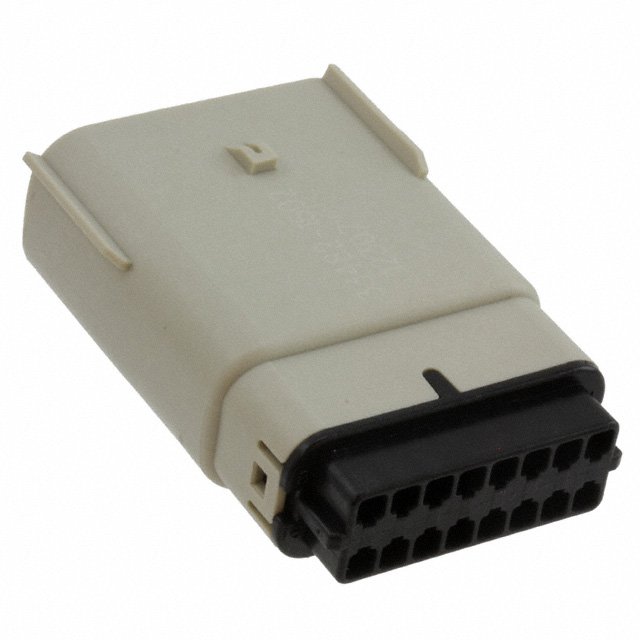

The Molex 0334821602 is a 16-position rectangular connector plug housing from the MX150 33482 series, designed for crimp termination with a 0.138" (4.60mm) pitch. This connector features a sealed design with a locking ramp fastening mechanism and is suitable for free-hanging in-line applications. The part is currently obsolete, making identification of active equivalent alternatives essential for ongoing production and maintenance requirements.

Substiute Parts

0334821602

MolexIn Stock: 6750334821602 Datasheet

Current PartRFQ

0334828602

MolexIn Stock: 18470334828602 Datasheet

DirectRFQ

0334828601

MolexIn Stock: 17670334828601 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution for the Molex 0334821602 is determined by strict equivalence across the following critical parameters:

• Connector type (Plug)
• Contact type (Male Blade)
• Number of positions (16)
• Pitch (0.138" / 4.60mm)
• Number of rows (2)
• Mounting type (Free Hanging In-Line)
• Contact termination method (Crimp)
• Fastening type (Locking Ramp)
• Sealed feature requirement
• Series designation (MX150 33482)

Two active substitute parts meet these criteria with full parametric equivalence. Variations exist only in color specification and certain compliance attributes, which do not affect the core mechanical and electrical function of the connector housing.

Parameter Comparison

Engineering Selection Recommendations

Both substitute parts (0334828602 and 0334828601) are active production components with full parametric equivalence to the obsolete 0334821602. Selection between substitutes should be based on the following factors:

0334828602 (Gray): Maintains color specification matching the original part. This substitute is recommended when color consistency with existing assemblies is required. Product status is active with ROHS3 compliance confirmed.

0334828601 (Black): Offers identical functional and mechanical specifications with alternative color designation. This substitute is suitable for applications where color is not a critical design parameter. Product status is active with ROHS3 compliance and REACH affected status noted.

Both parts carry identical electrical and mechanical characteristics, including operating temperature range (-40°C to 150°C), sealed design, and crimp termination compatibility. Selection should prioritize availability and color requirements for your specific application.

Frequently Asked Questions (FAQ)

Q: Can the 0334828602 and 0334828601 be used interchangeably with the 0334821602?

A: Yes. Both substitute parts are parametrically equivalent across all critical connector specifications: 16 positions, 0.138" pitch, 2-row configuration, male blade contacts, crimp termination, and locking ramp fastening. The primary difference is color (gray vs. black) and product status (active vs. obsolete).

Q: What is the difference between the two substitute parts?

A: The 0334828602 is gray and the 0334828601 is black. All other mechanical, electrical, and functional parameters are identical. Selection depends on color requirements for your assembly.

Q: Why is the original part obsolete?

A: The 0334821602 has been superseded by active production alternatives. The substitute parts (0334828602 and 0334828601) represent the current manufacturing equivalents within the MX150 33482 series.

Q: Are the substitute parts RoHS compliant?

A: Yes. Both 0334828602 and 0334828601 are ROHS3 compliant, matching the compliance status of the original part.

Q: Do the substitute parts require different contact specifications?

A: No. All three parts (original and substitutes) are designed for identical crimp contact specifications. Contacts are not included with any of these housing parts and must be sourced separately.

Q: What is the operating temperature range for these connectors?

A: The substitute parts operate across -40°C to 150°C. This specification is provided for the active alternatives; verify compatibility with your application requirements.
