Molex 0334810401 Rectangular Connector Plug Housing - Equivalent & Substitute Parts

Part Overview

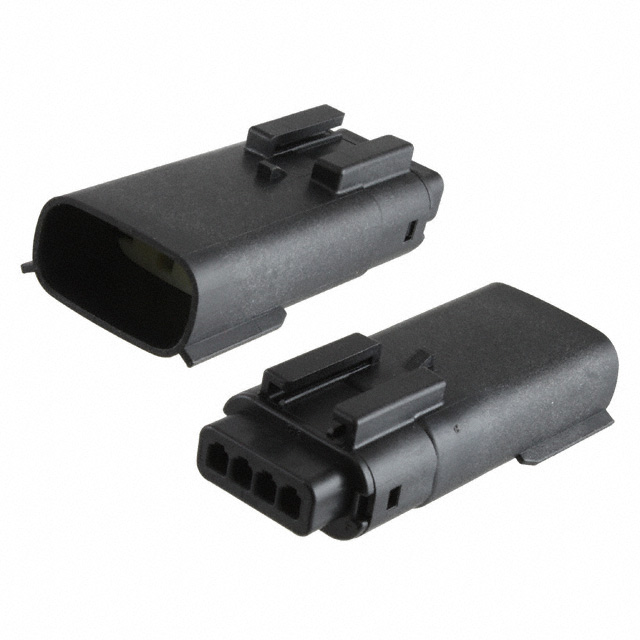

The Molex 0334810401 is a 4-position rectangular connector plug housing with 4.60mm pitch, designed for free-hanging in-line applications. This component features male blade contacts, crimp termination, and a locking ramp fastening mechanism. The part is classified as obsolete, making identification of active equivalent components essential for ongoing production and maintenance applications. The substitute part maintains functional compatibility while offering current product status and improved availability.

Substiute Parts

0334810401

MolexIn Stock: 15840334810401 Datasheet

Current PartRFQ

0334814401

MolexIn Stock: 34420334814401 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

The Molex 0334814401 qualifies as a direct substitute for the 0334810401 based on the following critical parameters:

• Connector Type & Configuration: Both are plug housings with identical 4-position, 4.60mm pitch specifications
• Contact Interface: Male blade contact type and crimp termination are identical
• Mechanical Compatibility: Free-hanging in-line mounting and locking ramp fastening are preserved
• Physical Properties: Black color and sealed features match
• Electrical & Environmental Compliance: Both maintain ROHS3 compliance and REACH unaffected status

The primary distinction is product status: the 0334810401 is obsolete, while the 0334814401 is active production. Both parts share the same base product number (033481) and series designation (MX150 33481), confirming their functional equivalence within the MX150 connector family.

Parameter Comparison

Engineering Selection Recommendations

The Molex 0334814401 is the designated manufacturer substitute for the obsolete 0334810401. Selection of the active part is supported by:

• Product Status: The 0334814401 maintains active production status, ensuring long-term availability and supply chain continuity
• Regulatory Compliance: Both parts maintain identical ROHS3 and REACH compliance certifications, satisfying current environmental and safety requirements
• Functional Equivalence: All critical electrical, mechanical, and dimensional parameters are preserved, enabling direct substitution without circuit or assembly redesign
• Series Continuity: Both parts belong to the MX150 33481 series, confirming compatibility within existing connector ecosystems

Frequently Asked Questions (FAQ)

Q: Can the 0334814401 be used as a direct replacement for the 0334810401 in existing assemblies?

A: Yes. The 0334814401 maintains identical specifications for connector type, position count, pitch, contact configuration, mounting method, and fastening mechanism. No assembly modifications are required.

Q: Are there differences in insulation material between these parts?

A: The 0334810401 specifies Polyamide (PA), Nylon, Glass Filled and Syndiotactic Polystyrene (SPS). The 0334814401 specifies Syndiotactic Polystyrene (SPS), Glass Filled. Both materials are suitable for the operating temperature range and sealed connector application.

Q: What is the significance of the product status change from Obsolete to Active?

A: The active status of the 0334814401 indicates current manufacturing and availability. This eliminates supply risk associated with obsolete components and ensures access to current production batches with consistent quality control.

Q: Are the crimp contact specifications identical between both parts?

A: Yes. Both parts specify crimp termination with male blade contacts. Existing crimp tooling and contact inventory remain compatible with the substitute part.

Q: Do both parts meet the same environmental and compliance standards?

A: Yes. Both parts are ROHS3 compliant, REACH unaffected, and classified under EAR99 export control. Compliance documentation and certifications are equivalent.
