Molex 0334761606 Rectangular Connector Housing - Equivalent & Substitute Parts

Part Overview

The Molex 0334761606 is a 16-position rectangular connector housing designed for crimp termination applications with a 0.138" (4.60mm) pitch. This receptacle housing features a sealed design with a latch holder fastening mechanism and is configured in a 2-row arrangement for free-hanging in-line mounting. The part is classified as obsolete, making identification of functionally equivalent alternatives necessary for ongoing procurement and system maintenance.

Substiute Parts

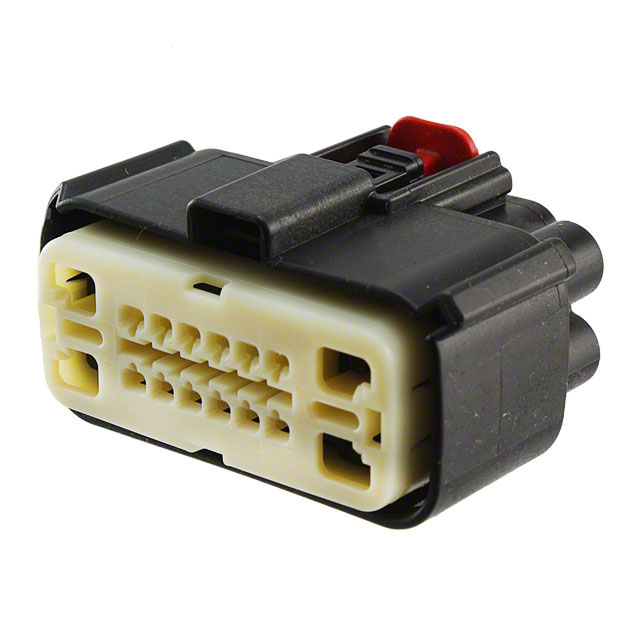

0334761606

MolexIn Stock: 10550334761606 Datasheet

Current PartRFQ

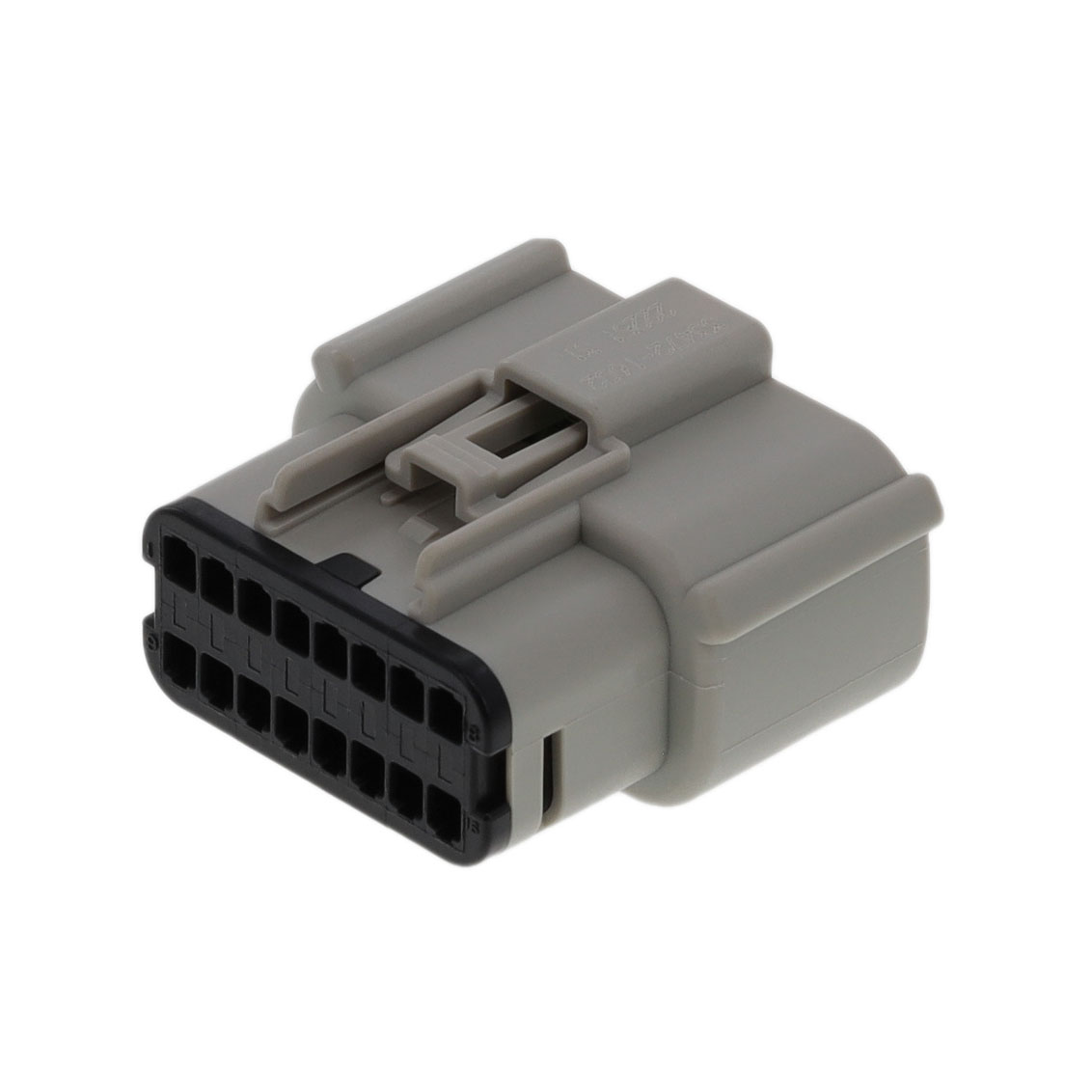

0334721602

MolexIn Stock: 22680334721602 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the Molex 0334761606 is determined by strict equivalence across the following critical parameters:

• Connector Type & Contact Configuration: Receptacle housing with female socket contacts
• Position Count & Pitch: 16 positions at 0.138" (4.60mm) spacing
• Physical Layout: 2-row configuration for in-line mounting
• Termination Method: Crimp contact termination
• Fastening Mechanism: Latch holder design
• Environmental Sealing: Sealed housing construction
• Regulatory Compliance: ROHS3 compliance requirement

The Molex 0334721602 meets all these criteria as a direct functional equivalent. The primary distinction is the housing color (gray versus black) and active product status, which does not affect electrical or mechanical compatibility.

Parameter Comparison

Engineering Selection Recommendations

The Molex 0334721602 is the direct substitute for the obsolete 0334761606. Both parts maintain identical electrical and mechanical specifications across all critical parameters. The 0334721602 offers the advantage of active product status, ensuring continued availability and supply chain reliability. Both parts satisfy ROHS3 compliance requirements and carry MSL 1 rating, indicating no moisture sensitivity constraints during storage or handling. Selection between these parts should be based on housing color requirements and supply availability, with the 0334721602 recommended for new designs and ongoing procurement due to its active status.

Frequently Asked Questions (FAQ)

Q: Can the 0334721602 be used as a direct replacement for the 0334761606?

A: Yes. Both parts are 16-position receptacle housings with identical pitch (0.138"), row configuration (2-row), mounting type (free-hanging in-line), termination method (crimp), and fastening mechanism (latch holder). The housing color difference (gray vs. black) does not affect functional compatibility.

Q: What is the significance of the obsolete status of the 0334761606?

A: Obsolete status indicates the part is no longer manufactured by Molex. The 0334721602 is an active equivalent that provides continued access to the same connector housing specifications with assured supply availability.

Q: Are there any compliance differences between these parts?

A: No. Both parts are ROHS3 compliant and carry identical Moisture Sensitivity Level 1 ratings. Regulatory and environmental compliance requirements are equivalent.

Q: Does the housing color affect electrical performance?

A: No. Housing color is a cosmetic distinction only and does not impact electrical characteristics, contact performance, or mechanical fit.

Q: What contacts are compatible with these housings?

A: Both housings accept crimp-terminated female socket contacts designed for the MX150 series 0.138" (4.60mm) pitch configuration. Contacts are not included with the housing and must be sourced separately.

Q: Are these parts suitable for sealed applications?

A: Yes. Both housings feature sealed design construction, providing environmental protection for mated connector pairs in sealed applications.
