Molex 0334720406 Rectangular Connector Housing – Equivalent & Substitute Parts

Part Overview

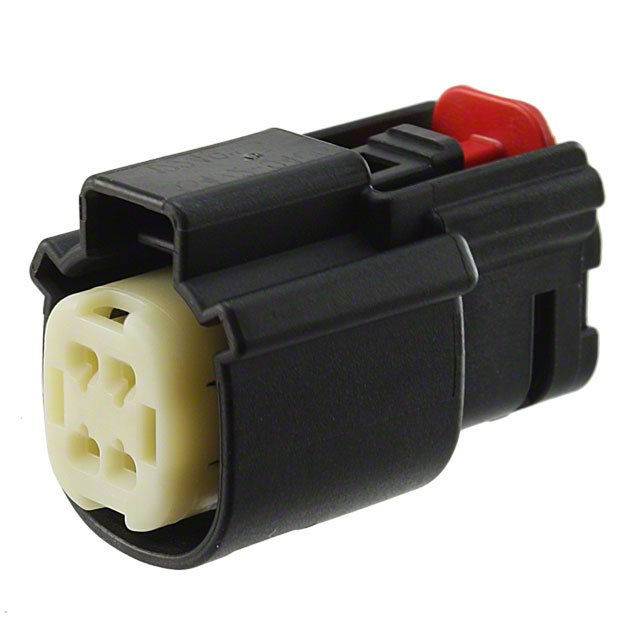

The Molex 0334720406 is a 4-position receptacle housing for the MX150 33472 series rectangular connector system. This component is a sealed, female socket housing with crimp termination, designed for free-hanging in-line mounting applications. The part is discontinued at DiGi Electronics, making identification of active equivalent alternatives essential for ongoing procurement and design continuity. Substitute parts maintain identical electrical and mechanical specifications while offering improved availability through active product status.

Substiute Parts

0334720406

MolexIn Stock: 7490334720406 Datasheet

Current PartRFQ

0334724001

MolexIn Stock: 443920334724001 Datasheet

Parametric EquivalentRFQ

0334724002

MolexIn Stock: 64030334724002 Datasheet

Parametric EquivalentRFQ

0334724101

MolexIn Stock: 20730334724101 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the Molex 0334720406 are identified based on strict parametric equivalence within the MX150 33472 connector series. All substitute parts maintain the following critical parameters:

• Connector type: Receptacle
• Contact type: Female socket
• Number of positions: 4
• Pitch: 0.138" (4.60mm)
• Number of rows: 2
• Mounting type: Free hanging (in-line)
• Contact termination: Crimp
• Fastening type: Latch holder
• Features: Sealed
• RoHS compliance: ROHS3 compliant
• MSL rating: 1 (unlimited)

Substitute parts are grouped by color variation and product status. Parts 0334724001 and 0334724101 are black housings with active product status. Part 0334724002 is a gray housing variant, also active. All three substitutes are packaged in bulk and maintain full compatibility with the original part's electrical and mechanical interface specifications.

Parameter Comparison

Engineering Selection Recommendations

All three substitute parts (0334724001, 0334724002, 0334724101) are direct parametric equivalents to the original 0334720406 and are suitable for replacement in applications requiring the MX150 33472 series 4-position receptacle housing.

For color-critical applications: Select 0334724001 or 0334724101 (black housings) to maintain visual consistency with the original part. Both are active products with equivalent availability.

For color-flexible applications: Part 0334724002 (gray housing) is functionally equivalent and offers an alternative aesthetic option while maintaining all electrical and mechanical specifications.

For procurement priority: All three substitutes carry active product status, ensuring ongoing availability. Parts 0334724001 and 0334724101 offer the highest inventory levels (44,337 and 1,982 units respectively), supporting immediate procurement needs.

All substitute parts maintain ROHS3 compliance and unlimited MSL rating, ensuring compatibility with standard manufacturing and storage environments.

Frequently Asked Questions (FAQ)

Q: Can 0334724001, 0334724002, and 0334724101 be used interchangeably with 0334720406?

A: Yes, all three parts are parametric equivalents within the MX150 33472 series. They share identical electrical and mechanical specifications including connector type, contact configuration, pitch, mounting method, and termination type. The primary difference is color: 0334724001 and 0334724101 are black; 0334724002 is gray.

Q: What is the difference between 0334724001 and 0334724101?

A: Both parts are black 4-position receptacle housings with identical electrical and mechanical specifications. The difference is inventory availability: 0334724001 has 44,337 units in stock, while 0334724101 has 1,982 units. Both are active products suitable for direct substitution.

Q: Why is the original part 0334720406 discontinued?

A: The original part is discontinued at DiGi Electronics. The active substitute parts (0334724001, 0334724002, 0334724101) provide equivalent functionality and are recommended for new procurement.

Q: Are the substitute parts compatible with existing MX150 33472 series contacts and plugs?

A: Yes. All substitute parts maintain the same pitch (0.138" / 4.60mm), number of positions (4), row configuration (2 rows), and crimp termination specifications as the original part. They are fully compatible with standard MX150 33472 series contacts and mating plugs.

Q: What is the operating temperature range for the substitute parts?

A: The substitute parts operate across -40°C to 150°C, supporting standard industrial and commercial temperature environments.

Q: Are all parts RoHS compliant?

A: Yes. The original part and all three substitutes are ROHS3 compliant, meeting regulatory requirements for hazardous substance restrictions.

Q: What packaging is available for the substitute parts?

A: All three substitute parts are supplied in bulk packaging, suitable for high-volume manufacturing and assembly operations.
