Molex 0334720402 Rectangular Connector Housing - Equivalent & Substitute Parts

Part Overview

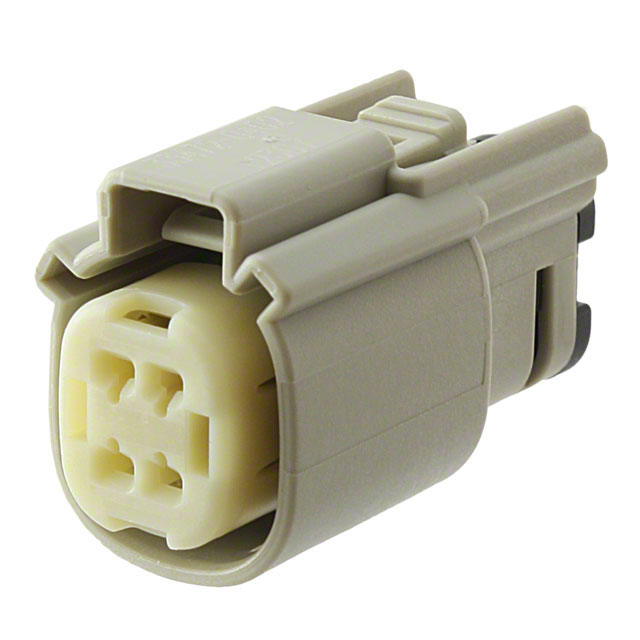

The Molex 0334720402 is a 4-position rectangular connector housing receptacle with 4.60mm pitch, designed for free-hanging in-line mounting applications. This component is classified as obsolete, necessitating identification of active equivalent alternatives to maintain supply chain continuity and ensure design compatibility in new procurement cycles.

Key Parameters

Parameter	Value
Manufacturer Part Number	0334720402
Manufacturer	Molex
Category	Rectangular Connectors
Series	MX150 33472
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	4
Pitch	0.138" (4.60mm)
Number of Rows	2
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Holder
Features	Sealed
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Product Status	Obsolete

Substitute Part Grouping Explanation

Substitute parts for the Molex 0334720402 are determined by strict equivalence across the following critical parameters:

Connector Type & Contact Configuration: Receptacle with female socket contacts
Electrical Interface: 4-position, 0.138" (4.60mm) pitch, 2-row configuration
Mechanical Interface: Free-hanging in-line mounting with crimp termination and latch holder fastening
Environmental Sealing: Sealed design
Compliance: ROHS3 compliant, MSL 1 rating

All substitute parts maintain identical electrical and mechanical interfaces within the MX150 33472 series. Variations in color (gray vs. black) and product status (active vs. obsolete) do not affect functional interchangeability for connector housing applications.

Parameter Comparison

Parameter	0334720402 (Main)	0334724001 (MFR Recommended)	0334724002 (Parametric Equivalent)	0334724101 (Parametric Equivalent)
Manufacturer	Molex	Molex	Molex	Molex
Series	MX150 33472	MX150 33472	MX150 33472	MX150 33472
Connector Type	Receptacle	Receptacle	Receptacle	Receptacle
Contact Type	Female Socket	Female Socket	Female Socket	Female Socket
Number of Positions	4	4	4	4
Pitch	0.138" (4.60mm)	0.138" (4.60mm)	0.138" (4.60mm)	0.138" (4.60mm)
Number of Rows	2	2	2	2
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Contact Termination	Crimp	Crimp	Crimp	Crimp
Fastening Type	Latch Holder	Latch Holder	Latch Holder	Latch Holder
Features	Sealed	Sealed	Sealed	Sealed
Color	Gray	Black	Gray	Black
Product Status	Obsolete	Active	Active	Active
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
MSL Rating	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
Operating Temperature	Not specified	-40°C ~ 150°C	-40°C ~ 150°C	-40°C ~ 150°C

Engineering Selection Recommendations

Primary Recommendation: Molex 0334724001

The 0334724001 is designated as the manufacturer-recommended substitute. This part maintains full electrical and mechanical compatibility with the obsolete 0334720402 while offering active product status and documented operating temperature range (-40°C to 150°C). Selection of this part ensures long-term supply availability and compliance with current manufacturing standards.

Secondary Options: Molex 0334724002 and 0334724101

Both parts are parametric equivalents with identical electrical and mechanical specifications. The 0334724002 matches the original gray color, while the 0334724101 provides a black alternative. Both are active products with ROHS3 compliance and MSL 1 rating. Selection between these options depends on color requirements for your specific application.

All three substitute parts are functionally interchangeable with the original 0334720402 for connector housing applications within the MX150 33472 series.

Frequently Asked Questions (FAQ)

Q: Can I use the substitute parts as direct replacements for the 0334720402?

A: Yes. All substitute parts (0334724001, 0334724002, 0334724101) maintain identical electrical and mechanical interfaces. They are functionally interchangeable for connector housing applications.

Q: What is the difference between the substitute parts?

A: The primary differences are color and inventory availability. The 0334724001 and 0334724101 are black housings, while the 0334724002 is gray. All three share identical electrical specifications, pitch, position count, and mounting characteristics.

Q: Why is the original 0334720402 listed as obsolete?

A: Obsolete status indicates the part is no longer in active production. The manufacturer recommends transitioning to active alternatives to ensure continued supply chain access and support.

Q: Are all substitute parts ROHS3 compliant?

A: Yes. All substitute parts carry ROHS3 compliance certification, matching the original part's environmental standards.

Q: Does color selection affect connector performance?

A: No. Color is a cosmetic parameter only and does not affect electrical or mechanical performance. Selection should be based on application requirements and design specifications.

Q: What is the operating temperature range for these connectors?

A: The substitute parts are rated for -40°C to 150°C operation. This specification is documented for the active alternatives but was not specified for the obsolete original part.
