Molex 0334710207 Rectangular Connector Housing - Equivalent & Substitute Parts

Part Overview

The Molex 0334710207 is a 2-position receptacle housing for rectangular connectors in the MX150 33471 series. This black polyamide connector housing operates across -40°C to 150°C and features sealed construction with crimp termination and latch holder fastening. The part is Active status and ROHS3 compliant. Substitute parts are identified when equivalent electrical and mechanical parameters are maintained within the MX150 33471 series, particularly when color or insulation material variations are acceptable for the application.

Key Parameters

Parameter	Value
Manufacturer Part Number	0334710207
Manufacturer	Molex
Series	MX150 33471
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	2
Pitch	0.138" (4.60mm)
Number of Rows	1
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Holder
Features	Sealed
Operating Temperature Range	-40°C ~ 150°C
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level	1 (Unlimited)
Product Status	Active

Substitute Part Grouping Explanation

Substitute parts within the MX150 33471 series maintain compatibility based on the following critical parameters:

Connector Type, Contact Type, Number of Positions, Pitch, Number of Rows, Mounting Type, Contact Termination, Fastening Type, Features: All substitute parts are identical to the main part (0334710207) in these core electrical and mechanical specifications.
Series Designation: All substitutes belong to the same MX150 33471 series.
Allowed Variations: Color (Black or Gray) and insulation material (Polyamide with glass fill or Polyester) are permitted variations. Operating temperature range may differ (125°C maximum for some substitutes versus 150°C for the main part).
Compliance: All parts maintain ROHS3 compliance and MSL 1 rating.

The following part numbers are direct substitutes: 0334710201, 0334710202, 0334710203, 0334710204, 0334710206, 0334710208, 0334710209.

Parameter Comparison

Part Number	Color	Insulation Material	Operating Temperature	Inventory (Pcs)	Product Status
0334710207	Black	Polyamide (PA), Nylon, Glass Filled; Syndiotatic Polystyrene (SPS)	-40°C ~ 150°C	715	Active
0334710201	Black	Polyester	-40°C ~ 125°C	8604	Active

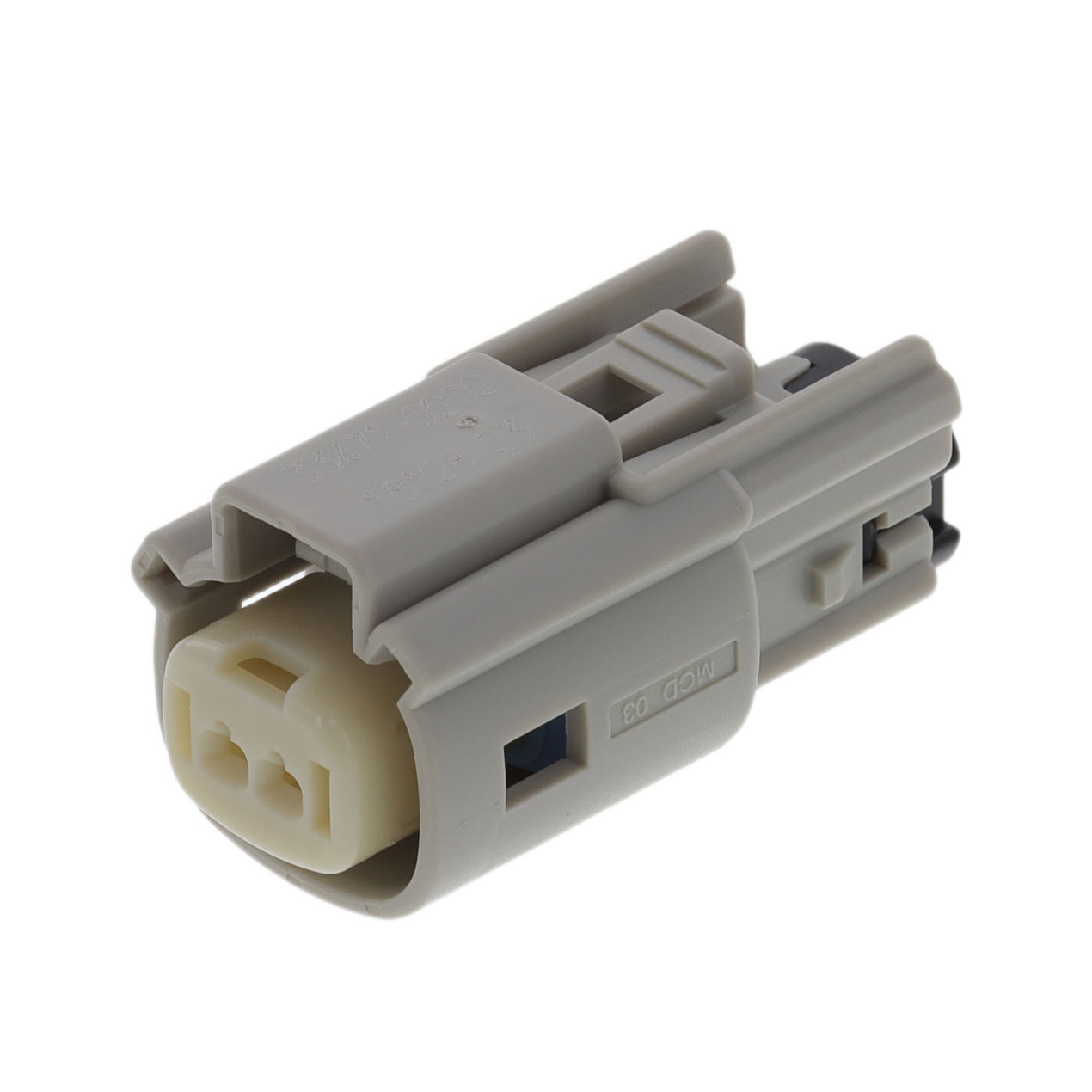

0334710202	Gray	Polyester	-40°C ~ 125°C	1200	Active
0334710203	Gray	Polyester	-40°C ~ 125°C	2869	Active
0334710204	Gray	Polyester	-40°C ~ 125°C	2898	Active
0334710206	Black	Polyester	-40°C ~ 125°C	1816	Active
0334710208	Gray	Polyester	-40°C ~ 125°C	2429	Active
0334710209	Gray	Polyester	-40°C ~ 125°C	2423	Active

Engineering Selection Recommendations

All substitute parts maintain Active product status and ROHS3 compliance. Selection between the main part and substitutes depends on application-specific requirements:

Temperature Consideration: The main part 0334710207 supports operation to 150°C due to its polyamide insulation material. All substitute parts (0334710201, 0334710202, 0334710203, 0334710204, 0334710206, 0334710208, 0334710209) are rated to 125°C maximum with polyester insulation. Applications requiring sustained operation above 125°C require the main part.

Color and Material Compatibility: Black polyester alternatives are 0334710201 and 0334710206. Gray polyester alternatives are 0334710202, 0334710203, 0334710204, 0334710208, and 0334710209. Color selection is determined by application requirements and assembly specifications.

Inventory Availability: Part 0334710201 offers the highest inventory level (8604 pcs), followed by 0334710204 (2898 pcs) and 0334710203 (2869 pcs).

Frequently Asked Questions (FAQ)

Q: Can I substitute 0334710207 with 0334710201? A: Yes, if your application operates at or below 125°C. Both are 2-position black receptacle housings with identical electrical and mechanical specifications. The primary difference is insulation material (polyamide versus polyester) and maximum operating temperature (150°C versus 125°C).

Q: What is the difference between black and gray housing options? A: Color is a cosmetic and identification variation. Black options are 0334710207, 0334710201, and 0334710206. Gray options are 0334710202, 0334710203, 0334710204, 0334710208, and 0334710209. All maintain identical electrical and mechanical performance within their respective temperature ratings.

Q: Are all substitute parts ROHS3 compliant? A: Yes. All parts listed (0334710207, 0334710201, 0334710202, 0334710203, 0334710204, 0334710206, 0334710208, 0334710209) are ROHS3 compliant with MSL 1 rating.

Q: What determines if a part is a valid substitute? A: Valid substitutes maintain identical specifications for connector type (receptacle), contact type (female socket), number of positions (2), pitch (4.60mm), mounting type (free hanging in-line), contact termination (crimp), fastening type (latch holder), and sealed features. Variations in color and insulation material are permitted provided temperature requirements are met.

Q: Do I need to verify compatibility with my specific application? A: Verify that your application's maximum operating temperature does not exceed the part's rated temperature. For applications requiring 150°C operation, only 0334710207 is suitable. For applications at 125°C or below, all listed parts are electrically and mechanically compatible.
