Weidmüller 0334520000 Terminal Block Equivalent & Substitute Parts

Part Overview

The Weidmüller 0334520000 is a 4-position feed-through terminal block connector designed for wire gauges 12-24 AWG (0.5-6 mm²). This component operates at 20 A (IEC) / 300 V (UL) and features screw and tab termination with yellow insulation housing. The product is classified as obsolete, making identification of functionally equivalent alternatives necessary for ongoing system maintenance and new designs requiring compatible components.

Substiute Parts

0334520000

WeidmüllerIn Stock: 7870334520000 Datasheet

Current PartRFQ

2775375

Phoenix ContactIn Stock: 16602775375 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Weidmüller 0334520000 is determined by the following critical parameters:

• Position Count & Configuration: 4 positions, 1 level (feed-through design)
• Electrical Ratings: Minimum 20 A current capacity and 300 V UL voltage rating
• Wire Gauge Compatibility: Support for 12-24 AWG range or broader compatible range
• Termination Method: Screw termination (primary requirement for mechanical compatibility)
• Physical Form Factor: Feed-through terminal block architecture

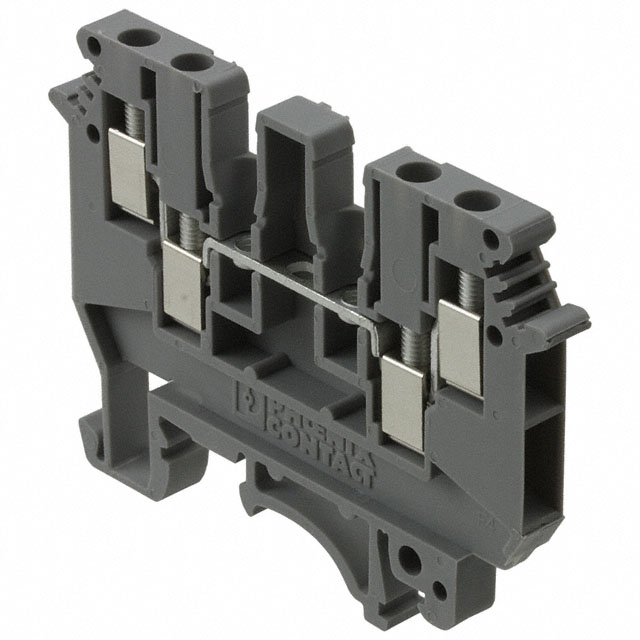

The Phoenix Contact 2775375 qualifies as a substitute based on matching position count, feed-through configuration, screw termination, and electrical ratings that meet or exceed the original specification. Differences in terminal width, wire gauge upper limit, and insulation material do not prevent functional substitution when circuit requirements remain within the specified parameters.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 2775375 serves as a functional equivalent for the obsolete Weidmüller 0334520000 based on the following criteria:

Electrical Compatibility: Both components maintain 20 A UL current rating and 300 V UL voltage rating, meeting the minimum electrical requirements of circuits designed for the original part.

Mechanical Compatibility: Both feature 4-position, single-level feed-through configuration with screw termination, enabling direct mechanical integration into existing terminal block assemblies.

Product Status & Compliance: The Phoenix Contact 2775375 is active in production and carries ROHS3 compliance certification, providing supply chain continuity and regulatory alignment for new designs and system updates.

Wire Gauge Consideration: The Phoenix Contact part accepts 12-30 AWG, which encompasses the original 12-24 AWG range. However, the lower wire gauge limit (0.2 mm² vs. 0.5 mm²) and upper limit (4 mm² vs. 6 mm²) represent a narrower cross-sectional range. Verify that circuit wire gauges fall within 12-24 AWG to ensure full compatibility.

Flammability Rating Difference: The original part carries UL94 5VA rating while the substitute carries UL94 V-2. Both ratings satisfy standard industrial terminal block applications; however, applications with specific flammability requirements should confirm acceptability of the V-2 rating.

Frequently Asked Questions (FAQ)

Q: Can the Phoenix Contact 2775375 directly replace the Weidmüller 0334520000 in existing assemblies?

A: Yes, provided that installed wire gauges remain within the 12-24 AWG range. The 4-position feed-through configuration, screw termination, and electrical ratings (20 A / 300 V UL) are functionally equivalent. Physical mounting and terminal spacing must be verified for the specific application.

Q: What is the significance of the wire gauge range difference (0.5-6 mm² vs. 0.2-4 mm²)?

A: The Phoenix Contact part accepts finer wires (0.2 mm²) but has a lower maximum cross-section (4 mm² vs. 6 mm²). For applications using wires larger than 4 mm² (smaller than 12 AWG), the substitute cannot accommodate the original wire gauge. Verify all circuit wires fall within 12-24 AWG before substitution.

Q: Does the flammability rating difference affect substitution eligibility?

A: Both UL94 5VA and UL94 V-2 ratings are acceptable for standard industrial terminal block applications. Applications with specific flammability or fire-safety requirements should confirm that UL94 V-2 meets the design specification before proceeding with substitution.

Q: Why is the Weidmüller 0334520000 classified as obsolete?

A: Obsolete status indicates the manufacturer has discontinued production. The Phoenix Contact 2775375 is an active product with ongoing supply availability, making it suitable for replacement in maintenance and new design scenarios.

Q: Are there any packaging or inventory considerations?

A: The Weidmüller part is available in limited stock (691 pcs). The Phoenix Contact substitute is supplied in bulk packaging with higher inventory availability (1613 pcs), supporting both immediate replacement needs and larger procurement requirements.
