Weidmüller 0332060000 Terminal Block - Equivalent & Substitute Parts

Part Overview

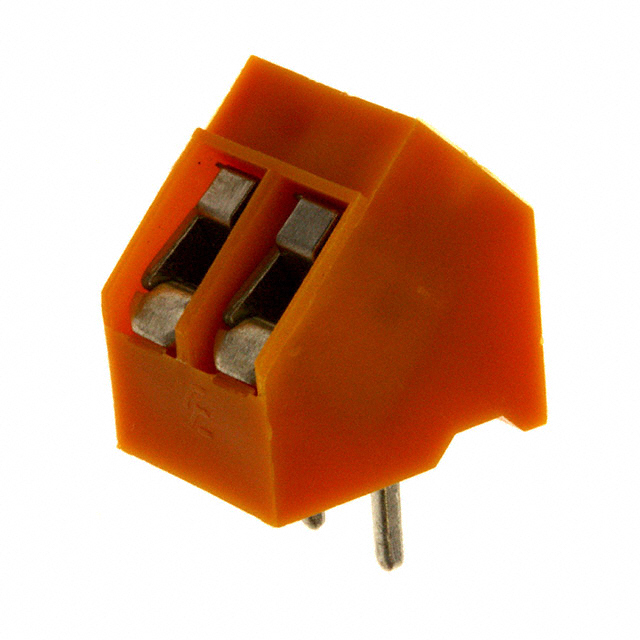

The Weidmüller 0332060000 is a 2-position wire-to-board terminal block with 45° angle orientation and 5.08mm pitch designed for through-hole PCB mounting. This component features screw-leaf spring wire termination and is rated for 15A at 150V operation across -20°C to 100°C. The part is classified as obsolete, making identification of functionally equivalent alternatives essential for ongoing design support and procurement continuity.

Key Parameters

Parameter	Value
Positions Per Level	2
Pitch	0.200" (5.08mm)
Mating Orientation	45° (135°) Angle with Board
Current Rating	15 A
Voltage Rating	150 V
Wire Gauge	12-22 AWG
Mounting Type	Through Hole
Screw Thread	M2.5
Operating Temperature	-20°C ~ 100°C

Substitute Part Grouping Explanation

The Weidmüller 1716120000 qualifies as a functional substitute based on the following alignment of critical parameters:

Position count and pitch: Both parts maintain 2 positions at 0.200" (5.08mm) spacing, ensuring PCB footprint compatibility
Mating orientation: Both feature 45° (135°) angle with board configuration
Current rating: Both rated at 15A, meeting load requirements
Mounting method: Both use through-hole PCB mounting with M2.5 screw thread
Wire gauge accommodation: The substitute accepts 14-24 AWG, which encompasses the original 12-22 AWG range

The substitute part operates at higher voltage (300V vs 150V) and extended temperature range (-50°C to 120°C vs -20°C to 100°C), providing enhanced performance margins. Wire termination differs (clamping yoke with tension sleeve vs leaf spring), but both employ screw-based clamping mechanisms with identical torque specifications (0.4-0.5 Nm).

Parameter Comparison

Parameter	0332060000 (Original)	1716120000 (Substitute)
Manufacturer	Weidmüller	Weidmüller
Category	Terminal Blocks	Terminal Blocks
Series	MK	Omnimate LM
Positions Per Level	2	2
Pitch	0.200" (5.08mm)	0.200" (5.08mm)
Mating Orientation	45° (135°) Angle with Board	45° (135°) Angle with Board
Current Rating	15 A	15 A
Voltage Rating	150 V	300 V
Wire Gauge	12-22 AWG	14-24 AWG
Mounting Type	Through Hole	Through Hole
Wire Termination	Screw - Leaf Spring, Wire Guard	Screw - Clamping Yoke, Tension Sleeve
Color	Orange	Orange
Operating Temperature	-20°C ~ 100°C	-50°C ~ 120°C
Housing Material	Polyamide (PA66), Nylon 6/6	Thermoplastic, Wemid
Contact Material - Plating	Brass - Tin Plated	Copper Alloy - Tin Plated
Screw Thread	M2.5	M2.5
Torque - Screw	0.4-0.5 Nm (4.6-4.4 Lb-In)	0.4-0.5 Nm (4.6-4.4 Lb-In)
Product Status	Obsolete	Active
REACH Status	REACH Unaffected	REACH Unaffected
ECCN	EAR99	EAR99

Engineering Selection Recommendations

The Weidmüller 1716120000 is the designated substitute for the obsolete 0332060000. Selection is supported by:

Product status alignment: The substitute is active and currently in production, ensuring long-term availability and supply chain continuity
Regulatory compliance: Both parts maintain REACH Unaffected status and EAR99 classification, with the substitute additionally certified as RoHS Compliant
Functional equivalence: Identical pitch, position count, mating orientation, current rating, and screw specifications ensure direct PCB footprint and electrical compatibility
Performance enhancement: The substitute provides higher voltage rating (300V) and extended temperature range (-50°C to 120°C), offering improved operational margins without compromising the original design intent

The substitute part is suitable for direct replacement in applications where the original 0332060000 was specified, provided the design does not depend on the specific leaf-spring termination mechanism of the original part.

Frequently Asked Questions (FAQ)

Q: Can the 1716120000 be used as a direct PCB replacement for the 0332060000?

A: Yes. Both parts share identical pitch (5.08mm), position count (2), mating orientation (45°), and mounting method (through-hole). PCB footprints are compatible.

Q: What are the differences in wire termination between these parts?

A: The original uses screw-leaf spring with wire guard termination. The substitute uses screw-clamping yoke with tension sleeve. Both employ M2.5 screws with identical torque specifications (0.4-0.5 Nm). The termination mechanism difference does not affect electrical performance or installation torque.

Q: Does the substitute accept the same wire gauge range?

A: The substitute accepts 14-24 AWG, which overlaps with the original 12-22 AWG range. Wires in the 14-22 AWG range are compatible with both parts. Wires smaller than 14 AWG (original only) or larger than 22 AWG (substitute only) require verification against specific application requirements.

Q: Are there voltage or temperature rating differences?

A: The substitute is rated for 300V (vs 150V original) and operates across -50°C to 120°C (vs -20°C to 100°C original). These represent performance enhancements and do not restrict substitution in applications using the original ratings.

Q: What is the availability status of each part?

A: The original 0332060000 is obsolete. The substitute 1716120000 is active and in production, with higher inventory availability (4626 pcs vs 1067 pcs for the original).

Q: Are both parts RoHS compliant?

A: The original 0332060000 does not specify RoHS status. The substitute 1716120000 is RoHS Compliant, providing additional environmental compliance for new designs.
