Amphenol RF 031-6166 TNC Connector Jack Equivalent & Substitute Parts

Part Overview

The Amphenol RF 031-6166 is an active TNC connector jack, female socket designed for 50 ohm coaxial applications. This panel mount crimp connector operates across RF frequencies up to 11 GHz and is compatible with standard coaxial cable groups including RG-58 variants, LMR-195, and Belden B7806A. The connector is manufactured with weatherproof construction and ROHS3 compliance. Substitute parts are identified when equivalent electrical and mechanical parameters are required for component procurement, inventory management, or design flexibility within the same connector family.

Key Parameters

Parameter	Specification
Connector Style	TNC
Connector Type	Jack, Female Socket
Impedance	50 Ohms
Contact Termination	Crimp
Shield Termination	Crimp
Mounting Type	Panel Mount
Mounting Feature	Bulkhead - Front Side Nut
Frequency - Max	11 GHz
Operating Temperature Range	-65°C ~ 165°C
Voltage Rating	500 V
Insertion Loss	0.18 dB
Mating Cycles	500

Substitute Part Grouping Explanation

Substitute parts for the Amphenol RF 031-6166 are identified based on strict equivalence across the following critical parameters:

Electrical Parameters: Impedance (50 Ohms), frequency maximum rating (11 GHz), voltage rating (500 V), and insertion loss (0.18 dB) must be identical.

Mechanical Parameters: Connector style (TNC), connector type (Jack, Female Socket), contact termination method (Crimp), shield termination method (Crimp), mounting type (Panel Mount), and mounting feature (Bulkhead - Front Side Nut) must match exactly.

Environmental Parameters: Operating temperature range (-65°C ~ 165°C), ingress protection (Weatherproof), and mating cycle rating (500) must be equivalent.

Compliance Parameters: RoHS status (ROHS3 Compliant), REACH status (REACH Affected), and moisture sensitivity level (MSL 1 - Unlimited) must align.

Cable Compatibility: Compatible cable groups (RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907) must be identical.

Parameter Comparison

Parameter	031-6166	031-6169
Manufacturer	Amphenol RF	Amphenol RF
Connector Style	TNC	TNC
Connector Type	Jack, Female Socket	Jack, Female Socket
Contact Termination	Crimp	Crimp
Shield Termination	Crimp	Crimp
Impedance	50 Ohms	50 Ohms
Mounting Type	Panel Mount	Panel Mount
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Cable Group	RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907	RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907
Fastening Type	Threaded	Threaded
Frequency - Max	11 GHz	11 GHz
Number of Ports	1	1
Housing Color	Silver	Silver
Ingress Protection	Weatherproof	Weatherproof
Center Contact Material	Phosphor Bronze	Phosphor Bronze
Body Material	Brass	Brass
Body Finish	Nickel	Nickel
Center Contact Plating	Gold	Gold
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Operating Temperature	-65°C ~ 165°C	-65°C ~ 165°C
Voltage Rating	500 V	500 V
Mating Cycles	500	500
Insertion Loss	0.18 dB	0.18 dB
Product Status	Active	Active
RoHS Status	ROHS3 Compliant	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)	1 (Unlimited)
REACH Status	REACH Affected	REACH Affected
ECCN	EAR99	EAR99
HTSUS	8536.69.4010	8536.69.4010

Engineering Selection Recommendations

Both the Amphenol RF 031-6166 and 031-6169 are active products with identical electrical, mechanical, and environmental specifications. Selection between these parts is based on inventory availability and procurement requirements rather than technical performance differences.

The 031-6166 maintains 918 units in current stock inventory. The 031-6169 maintains 739 units in current stock inventory. Both connectors carry ROHS3 compliance and REACH affected status, meeting regulatory requirements for commercial and industrial RF applications.

Both parts are manufactured to identical specifications with phosphor bronze center contacts, gold plating, brass bodies with nickel finish, and PTFE dielectric material. The weatherproof construction and 500 mating cycle rating provide equivalent reliability performance across the specified operating temperature range of -65°C to 165°C.

Frequently Asked Questions (FAQ)

Q: Can the 031-6169 be used as a direct replacement for the 031-6166 in existing designs?

A: Yes. The 031-6169 is electrically and mechanically equivalent to the 031-6166 across all specified parameters including impedance, frequency response, termination methods, mounting configuration, and cable compatibility. Direct substitution is supported without design modification.

Q: Are there any differences in the connector's RF performance between these two part numbers?

A: No. Both connectors specify identical insertion loss (0.18 dB), frequency maximum (11 GHz), and impedance (50 Ohms). RF performance characteristics are equivalent.

Q: What cable types are compatible with both connectors?

A: Both the 031-6166 and 031-6169 are compatible with RG-58, RG-58A, RG-58B, RG-58C, RG-141, RG-303, LMR-195, Belden B7806A, and 9907 coaxial cable groups.

Q: Do both connectors meet the same environmental and compliance standards?

A: Yes. Both connectors are ROHS3 compliant, REACH affected, rated for weatherproof operation, and carry MSL 1 (Unlimited) moisture sensitivity level. Operating temperature range is -65°C to 165°C for both parts.

Q: What is included in the connector package?

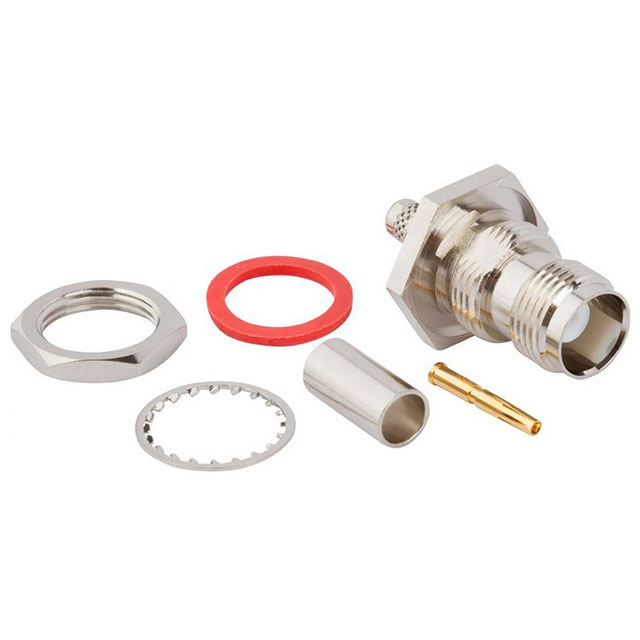

A: Each connector package includes 6 pieces: 1 connector body, 1 contact, 1 ferrule, 1 gasket, 1 lockwasher, and 1 nut.

Q: Are these connectors suitable for panel mount applications?

A: Yes. Both connectors are designed for panel mount installation with bulkhead front side nut mounting feature and threaded fastening type.
