Phoenix Contact 0316082 Terminal Block Connector - Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 0316082 is a 2-position disconnect terminal block connector rated for 8-20 AWG wire gauges with a rated current of 57 A (IEC) and voltage of 400V (IEC). This component features a slide-switch disconnect mechanism with screw termination and polyamide insulation rated UL94 V-0. The part is classified as obsolete, making identification of compatible substitute components essential for ongoing system maintenance and new design implementations.

Substiute Parts

0316082

Phoenix ContactIn Stock: 8070316082 Datasheet

Current PartRFQ

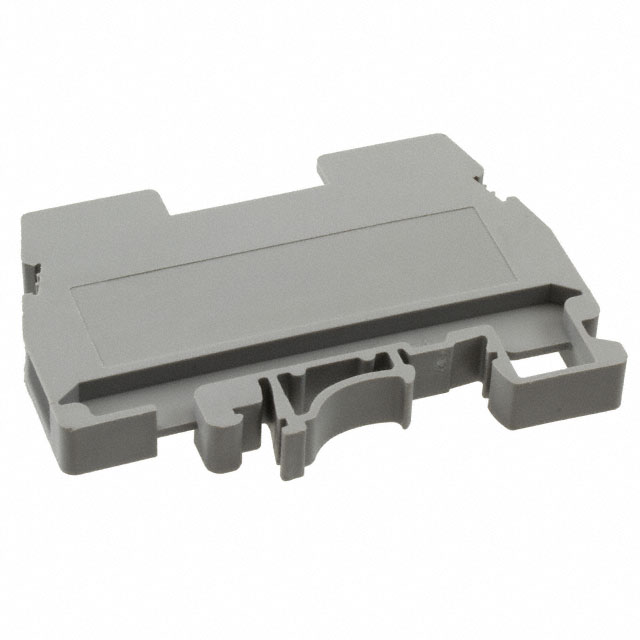

0311087

Phoenix ContactIn Stock: 11550311087 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The Phoenix Contact 0311087 qualifies as a direct substitute for the 0316082 based on the following alignment of critical parameters:

• Both components belong to the CLIPLINE URTK series from Phoenix Contact
• Both feature identical 2-position configuration with slide-switch disconnect mechanism
• Both utilize screw termination with polyamide (PA) nylon insulation rated UL94 V-0
• Both support the same wire gauge range of 0.5-10 mm² (8-26 AWG capability)
• Both maintain 400V voltage rating (IEC standard)
• Both feature identical terminal width of 8.2 mm and 13 mm stripping length

The 0311087 extends the wire gauge acceptance range to 8-26 AWG compared to the 0316082's 8-20 AWG specification. The current rating differs: 0311087 is rated 41 A (IEC) and 50 A (UL), compared to 0316082's 57 A (IEC). The 0311087 carries active product status with ROHS3 compliance, whereas the 0316082 is obsolete.

Parameter Comparison

Engineering Selection Recommendations

The 0311087 is the active production equivalent for the obsolete 0316082. Both components maintain identical mechanical and electrical compatibility within the CLIPLINE URTK series architecture. The 0311087 provides continued supply availability with ROHS3 compliance certification, addressing the obsolescence status of the original part.

Selection of the 0311087 as a replacement requires verification that the reduced current rating of 41 A (IEC) and 50 A (UL) is acceptable for the application circuit. The extended wire gauge acceptance range (8-26 AWG versus 8-20 AWG) provides additional flexibility for conductor sizing without affecting mechanical or electrical performance within the specified parameters.

Frequently Asked Questions (FAQ)

Q: Can the 0311087 be used as a direct replacement for the 0316082 in existing installations?

A: The 0311087 is mechanically and electrically compatible with the 0316082 within the CLIPLINE URTK series. Both components share identical terminal width, stripping length, disconnect mechanism, and insulation material specifications. Substitution is valid provided the application current requirement does not exceed 41 A (IEC) or 50 A (UL).

Q: What is the primary difference between these two parts?

A: The 0311087 extends wire gauge acceptance to 8-26 AWG compared to the 0316082's 8-20 AWG range. The current rating is reduced from 57 A (IEC) to 41 A (IEC). The 0311087 carries active product status with ROHS3 compliance, while the 0316082 is obsolete.

Q: Are there packaging differences between the 0316082 and 0311087?

A: The 0316082 is supplied in standard packaging, while the 0311087 is supplied in bulk packaging. Both maintain identical component specifications and mechanical dimensions.

Q: Do both parts meet the same flammability and compliance standards?

A: Both the 0316082 and 0311087 are rated UL94 V-0 for flammability. Both are RoHS compliant. The 0311087 carries ROHS3 certification, representing the current regulatory standard.

Q: What wire gauges are compatible with each part?

A: The 0316082 accepts 8-20 AWG (0.5-10 mm²). The 0311087 accepts 8-26 AWG (0.5-10 mm²). Both support the same cross-sectional area range, with the 0311087 providing extended AWG range flexibility.
